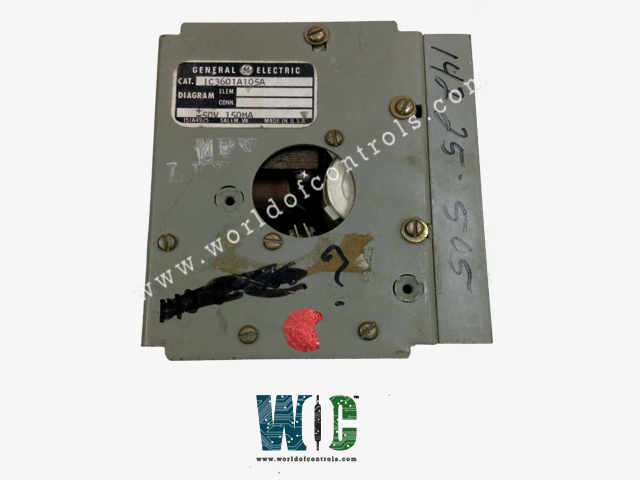

IC3601A105A - Autoranging DC Power Supply Module (50V)

SPECIFICATIONS:

Part No: IC3601A105A
Manufacturer: General Electric
Product Type: Autoranging DC Power Supply Module (50V)
Series: Mark I & II
Input Voltage: 100-240V AC, 50/60Hz
Output Current: 0.15 A AMP
Output Voltage: 0-50V DC
Output Voltage Range: 0-50V DC
Output Power: Up to 150W
Operating Temperature: 0�C to 40�C
Storage Temperature: -20�C to 70�C
Resolution: 10mV/10mA
Availability: In Stock
Weight: 2.5 kg
Dimensions: 6.00 x 6.00 x 5.00
Country of Origin: USA

FUNCTIONAL DESCRIPTION:

IC3601A105A is an Autoranging DC Power Supply Module (50V) manufactured and designed by General Electric and is part of the Mark II Series used in Static Starter Control systems. An auto-ranging DC power supply module is a versatile and adjustable power supply device that automatically adjusts its output voltage and current ranges to match the load requirements. This type of power supply is particularly useful for applications requiring a wide range of voltages and currents, providing flexibility and convenience for various electronic testing and development tasks. Here's an overview of a typical 50V auto-ranging DC power supply module:

FUNCTIONS OF DC POWER SUPPLY MODULE:

• Powering Control Units: Provides stable DC power to the turbine control units, which include microcontrollers, PLCs (Programmable Logic Controllers), and other digital control devices. Ensures that control units receive the required voltage and current for optimal performance.

• Sensor Power Supply: Supplies power to various sensors used in the gas turbine system, such as temperature, pressure, and vibration sensors. Maintains accurate sensor readings by providing consistent voltage levels.

• Actuator Control: Powers actuators that control critical components of the turbine, such as fuel valves, guide vanes, and variable inlet guide vanes. Enables precise adjustment of these components to optimize turbine performance and efficiency.

• Signal Conditioning: Provides power to signal conditioning circuits that process sensor signals before they are sent to the control units. Ensures that signals are within the required voltage range and free from noise.

• Communication Interfaces: Powers communication modules that facilitate data exchange between the turbine control system and external systems, such as supervisory control and data acquisition (SCADA) systems.

WOC maintains the largest inventory of Replacement parts for GE Speedtronic Gas Turbine Control systems. Additionally, we offer warranty-backed unused and rebuilt boards as well as board repairs for your damaged ones. For your OEM needs, our team of professionals is available around the clock. We at WOC are happy to help you with any needs you may have in terms of automation. Please contact our team by phone or email for pricing and availability on any components and repairs.

FREQUENTLY ASKED QUESTIONS:

What is an auto-ranging DC power supply?

An auto-ranging DC power supply automatically adjusts its voltage and current output to provide the maximum power within its specified range, offering greater flexibility compared to fixed-range power supplies.

What are the typical applications for a 50V auto-ranging DC power supply module?

These power supplies are commonly used in laboratories, research and development, manufacturing testing, telecommunications, and any application requiring precise control of voltage and current.

How do I set the desired voltage and current on this power supply?

Most power supplies have a digital interface or control knobs for setting the desired voltage and current. Refer to the user manual for specific instructions on your model.
