IC3600QOXC1 - GE Fanuc Speed Control Sensor Card

SPECIFICATIONS

Part No.: IC3600QOXC1
Manufacturer: General Electric
Product Type: Speed Control Sensor Card
Series: Mark I and II

IC3600QOXC1 is a speed control sensor card manufactured by General Electric under the mark I or II series. The purpose of this system was to control gas and steam turbines. The first series of Mark turbine control systems were the Mark I and Mark II. All of the most critical turbine activities are controlled by the Mark series. This includes functions including starting, shutdown, cooldown, and fuel and water injection. A speed control sensor card is the IC3600QOXC1 printed circuit board.

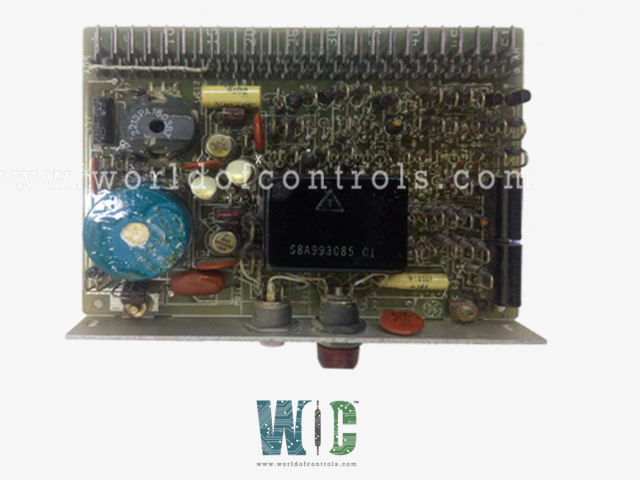

• Two massive inductors, sometimes known as coils, are found in the IC3600QOXC1. The inductors are constructed out of wire coils that are encased in a black plastic cover. The board also has a single massive black transformer. The transformer is rectangular in shape and has the part number 68A9930S2 GI inscribed on it. The board also has a number of capacitors. Some capacitors are yellow, while others are completely red. On the card, there are various resistors.
• Near the upper edge of the card, there are at least two MOVs (metal oxide varistors).
• On the IC3600QOXC1, there are a number of tiny transistors. A few of these transistors are constructed of silver metal and are round. The remaining transistors are black and shaped like a half-circle. On the side of the card, there is a single huge red button. The button is circular and has the word RESET written on it. Below the button is a huge red indicator light.

The most extensive assortment of Turbine control components can be found at World of Controls. Our professionals are standing by to help you with your GE Fanuc needs. Please call WOC right away if you require any additional information.



Frequently Asked Questions



What is IC3600QOXC1?
IC3600QOXC1 is a speed control sensor card manufactured by General Electric under mark I or II series.

How to Obtain IC3600QOXC1?
World of Controls provides IC3600QOXC1 as well as other turbine control products. Contact WOC.
