IC3600LIBB1 - General Electric Input Buffer Card

SPECIFICATIONS

Part No.: IC3600LIBB1
Manufacturer: General Electric
Product Type: Input Buffer Board
Series: Mark I & II

GE developed IC3600LIBB1 input buffer board under the FANUC brand. These two systems were developed by GE to control heavy-duty turbines of various sizes and capacities, ranging from a single 4000 hp unit to a 400 Mw combined cycle power plant. The Mark I and Mark II are adaptable and scalable, with the ability to change how the control panel is set up and wired, as well as the functions of the speed control, which can be adjusted to droop control or isochronous control.

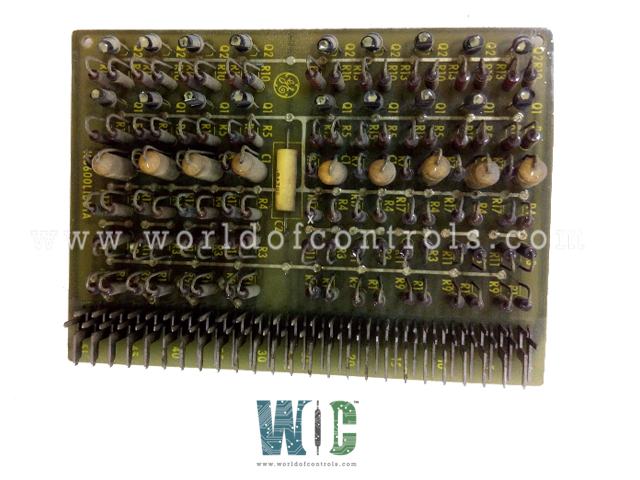

• It has the board identification number 003/02, 002/03, 006/03, and 68A988162 on it, as well as the codes 003/02, 002/03, 006/03,, and 68A988162. "ADS" and "STAR" are also written on the board.
• On the surface of the board, there are eighteen transistors. These are arranged in two nine-transistor lines. Each line is identified as a separate component (one line is Q1, the other is Q2.)
• One polyester vinyl capacitor is designated M/e 708D1 1Q79 on the board. This capacitor is mounted horizontally on the circuit board.
• There are also nine aluminum electrolytic capacitors on the board, all of which are labeled "C1." These are vertically affixed to the board.
• A single line of metal pins is affixed to one edge of the IC3600LIBB1. These components serve as a means of communication.

World of Controls has the most comprehensive selection of Turbine control components. Our experts are ready to assist you with your GE Fanuc requirements. If you require any additional information, please contact WOC immediately.



Frequently Asked Questions



What is IC3600LIBB1?
IC3600LIBB1 is an input buffer board developed by GE under their FANUC brand.

How to Obtain IC3600LIBB1?
World of Controls provides IC3600LIBB1 as well as other turbine control products. Contact WOC.
