World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

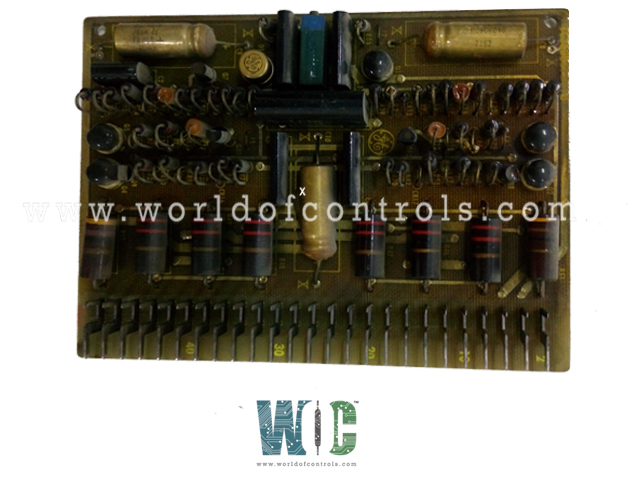

IC3600EPSC1B - Inverter Drive Circuit Board is available in stock which ships the same day.
IC3600EPSC1B - Inverter Drive Circuit Board comes in UNUSED as well as REBUILT condition.
To avail our best deals for IC3600EPSC1B - Inverter Drive Circuit Board, contact us and we will get back to you within 24 hours.
TECHNICAL SPECIFICATIONS
Part Number: IC3600EPSC1B
Manufacturer: General Electric
Series: Mark II
Product Type: Inverter Drive Card
Circuit Architecture: Discrete Analog / Through-hole
Primary Components: NPN/PNP Transistors, Zener Diodes, Electrolytic Capacitors
Input Voltage: Standard Mark II Rack DC Levels
Output Signal: Variable Frequency/Voltage Inverter Drive Logic
Number of Potentiometers: Multiple precision trim-pots for frequency/magnitude
Mounting: Edge-connector plug-in (Double-sided PCB)
Operating Temperature: 0 to 60 °C (32 to 140 °F)
Humidity: 5% to 95% Non-condensing
Vibration Resistance: Industrial Turbine Environment Rated
Repair: 3-7 Days
Availability: In Stock
Country of Origin: United States
FUNCTIONAL DESCRIPTION
The IC3600EPSC1B is an Inverter Drive Card manufactured and designed by General Electric as part of the Mark II Series used in GE Distributed Turbine Control Systems. This specialized circuit board functions within the legacy Mark II architecture to drive and regulate inverter-based power stages required for turbine control logic and peripheral excitation systems. The board utilizes discrete analog circuitry to convert and manage power frequencies, ensuring the precise synchronization necessary for high-voltage power generation environments. Built with industrial-grade through-hole components, it is engineered to maintain stable performance despite the thermal stress and electrical noise typical of power plant operations.
CONNECTIVITY AND NETWORKING
The Inverter Drive Circuit Board utilizes a classic edge-connector interface, allowing the card to be easily inserted into the Mark II control rack. This plug-and-play architecture enables rapid maintenance and replacement, which is vital for minimizing plant downtime. The front edge of the board is equipped with several high-precision potentiometers, allowing field technicians to perform manual calibration of drive frequencies and output levels. These manual adjustments ensure the drive card remains perfectly tuned to the specific mechanical requirements of the turbine it controls.
INVERTER DRIVE PERFORMANCE
The circuit design of the Inverter Drive Circuit Board focuses on frequency stability and load regulation. It features high-capacity electrolytic capacitors for energy storage and filtering, paired with Zener diodes for precise voltage clamping. The drive logic is executed via discrete power transistors that handle the switching required for inverter operations. This analog approach provides a robust and deterministic control loop that does not rely on modern digital processing, making it highly resistant to the software-based errors found in newer systems.
WHY PURCHASE FROM WOC?
WOC is a premier global supplier specializing in rare and legacy GE Mark II components. We understand that maintaining older turbine assets requires parts that meet original OEM tolerances. We stock the IC3600EPSC1B in both unused surplus and fully rebuilt conditions to support every budget. Our certified in-house technical team provides comprehensive repair and testing services, with a rapid 3-7 day turnaround. Each board is bench-tested under load to ensure reliable performance. With 24/7 technical support and worldwide shipping, WOC is the trusted partner for extending the life of your GE turbine control systems.
What is the GE IC3600EPSC1B?
The IC3600EPSC1B is an Inverter Drive Card specifically engineered for the GE Mark II turbine control system. It acts as the primary signal generator and regulator for the inverter stages, converting standard rack DC power into precisely modulated drive signals that control specialized turbine actuators and excitation subsystems.
How does the IC3600EPSC1B maintain frequency stability in an analog architecture?
The board utilizes a discrete oscillator circuit paired with high-stability Zener diodes and precision-wound inductors to minimize frequency drift. Unlike digital oscillators, stability is maintained through thermal compensation of the discrete components, ensuring the drive signal remains synchronized even as the control cabinet's internal temperature fluctuates.
What is the specific isolation protocol for the inverter drive signals?
The IC3600EPSC1B is engineered with a high degree of electrical isolation between the low-voltage control logic and the high-power inverter drive stages. This is achieved through the use of high-dielectric through-hole capacitors and specific PCB trace spacing designed to prevent crosstalk and suppress transient voltage spikes common in inductive load switching.
Can the potentiometers adjust the PWM carrier frequency, or just the output magnitude?
The onboard potentiometers are typically configured to calibrate both the output voltage magnitude and the fundamental drive frequency. This allows the card to be tuned to match the specific impedance and response characteristics of the legacy inverter bridge it is controlling.
How does the board handle DC-link voltage fluctuations?
The card features a robust onboard regulation stage that utilizes power transistors and electrolytic filtering to provide a clean internal rail. This ensures that even if the primary DC power supply to the rack experiences a minor ripple or sag, the inverter drive timing and gate signal integrity remain unaffected.
