World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
IC3600AIAD1C - Translating Isolated Card is available in stock which ships the same day.
IC3600AIAD1C - Translating Isolated Card comes in UNUSED as well as REBUILT condition.
To avail our best deals for IC3600AIAD1C - Translating Isolated Card, contact us and we will get back to you within 24 hours.

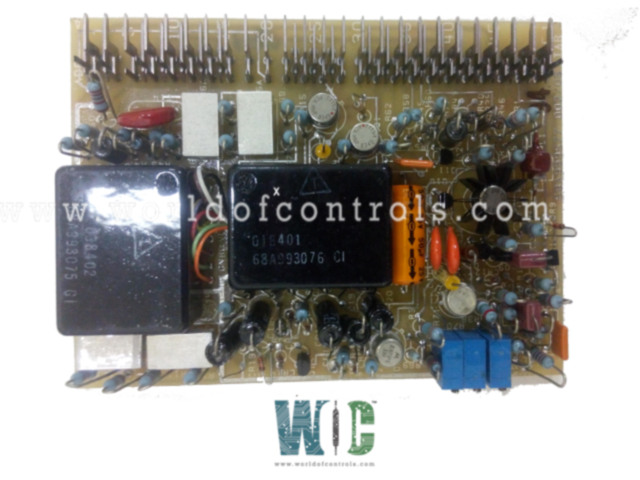

Part No: IC3600AIAD1C
Manufacturer: General Electric
Product Type: Translating Isolator Card
Series: Mark I & II
Availability: In Stock
Country of Origin: United States (USA)
IC3600AIAD1C is a speed control module developed by GE for the Mark II series. It plays a role in regulating turbine speed, ensuring stable operation, and providing precise control in demanding industrial applications. An optional AIAD card provides electrical isolation between the process speed setpoint circuit and the SSLD card, protecting the control system from electrical noise and interference.
The AIAD card is designed to handle a wide variety of input signals, including 0-5 V, 0-10 V, 0-25 V, 1-5 mA, 4-20 mA, and 10-50 mA. These inputs can be configured using designated jumpers, allowing the module to interface with different sensors and control systems. This flexibility ensures compatibility with a broad range of turbine applications and control strategies.
The module can generate multiple output signals to suit various control requirements, including 0-10 V, 1-5 mA, 4-20 mA, and 10-50 mA. Jumper settings determine the correct output configuration, enabling seamless integration with downstream controllers, instrumentation, and other system components.
It offers adjustable parameters for precise performance tuning. The input bias (R70) can be set from 0-30% on any scale. The output bias (R74) ranges from 0-2.5 mA or 2.5-15 mA depending on jumper configuration. The gain (R71) is adjustable from 0.5-2 when used as a current-to-current converter, with a minimum +15% adjustment on any voltage range. These settings allow accurate calibration to meet specific operational requirements.
World of Controls has the most comprehensive catalog of GE Speedtronic Mark II control components. Our professionals are standing by to help you with your Mark II needs. If you require any additional information, please contact WOC immediately.
What is GE Mark II IC3600AIAD1C?
It is a Translating Isolator Card developed by GE Fanuc as part of the Mark II series.
What is the function of the AIAD card?
The optional AIAD card provides electrical isolation between the process speed setpoint circuit and the SSLD card, protecting the system from noise or interference and maintaining signal integrity.
What input signals does the module accept?
It can accept 0-5 V, 0-10 V, 0-25 V, 1-5 mA, 4-20 mA, and 10-50 mA signals, selectable using jumper configurations for compatibility with various sensors and control systems.
What output signals does the module provide?
The module can output 0-10 V, 1-5 mA, 4-20 mA, or 10-50 mA, with jumper settings determining the proper output for integration with controllers or instrumentation.
