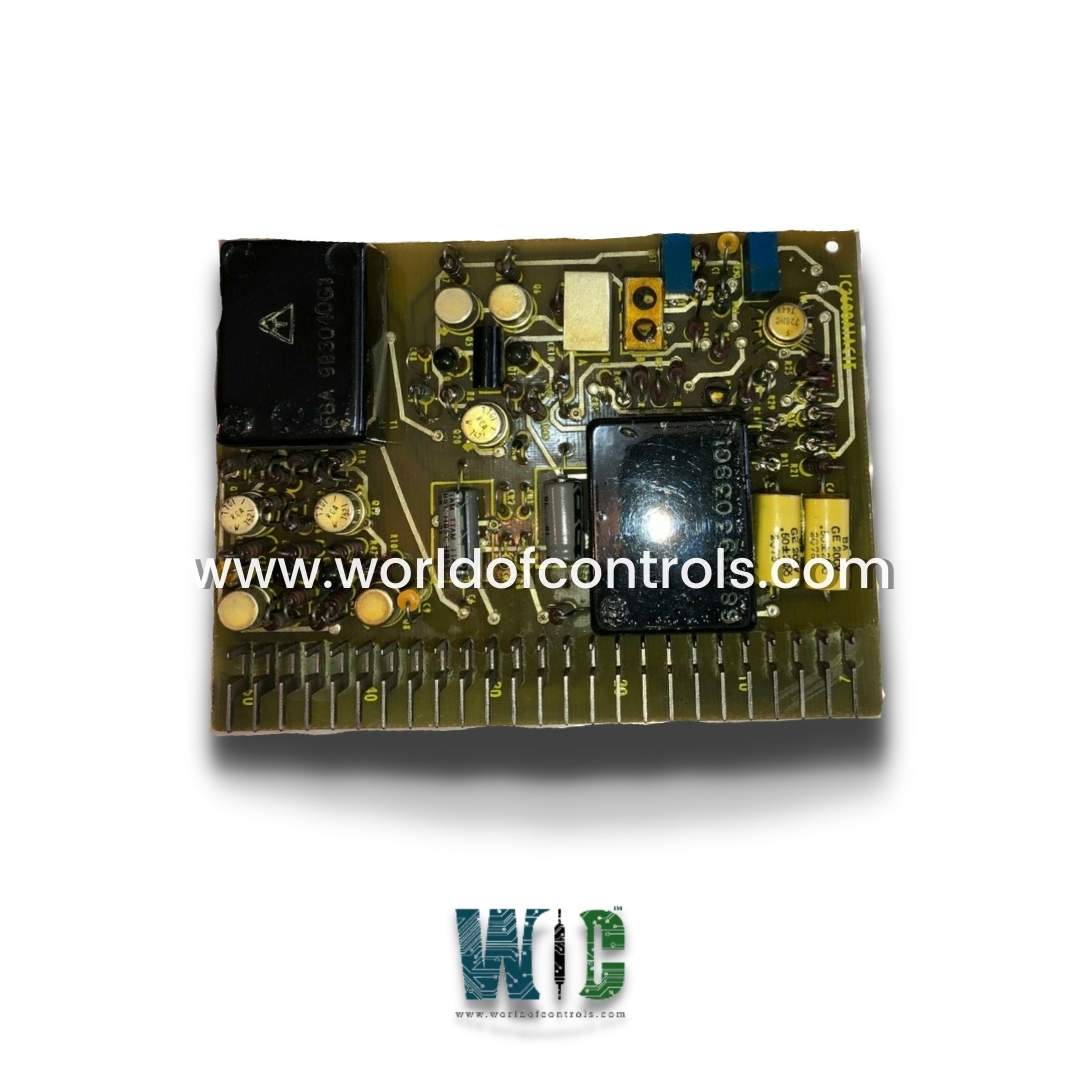

IC3600AIAC1 - Temperature Control Amplifier Drive Card

SPECIFICATIONS:

Part No: IC3600AIAC1
Manufacturer: General Electric
Series: Mark II
Coil Voltage: 251-300 V
Current Rating: 1-15 A
Thermocouple: J, K, T
RTD: DIN PT-100
Thermistor: 2252 ohm, 10k ohm
Normal Mode Rejection: 60 dB
Common Mode Rejection: 120 dB
Product Type: Temperature Control Amplifier Card
Current Type: AC/DC
Rated Voltage: 9-36 VDC
Memory Backup: EEPROM
Operating temperature: -30 to 55 ºC
Power Supply Voltage: 24 V dc
Board Size: 2.8 cm high x 8.6 cm
Weight: 0.45 kgs
Condition: New
Availability: In Stock
Country of Origin: USA

FUNCTIONAL DESCRIPTION:

IC3600AIAC1 is a Temperature Control Amplifier Drive Card manufactured and designed by General Electric as part of the Mark II Series used in GE Speedtronic Control Systems. It receives temperature sensor inputs, such as thermocouples or RTDs, and amplifies these low-level signals to levels suitable for the control system. The card provides galvanic isolation between input, output, and system power to prevent noise and ground loops, while its adjustable gain and offset settings allow precise calibration for accurate temperature regulation. It drives downstream actuators or interfacing modules with controlled voltage or current outputs, enabling real-time turbine temperature control. Integrated relays, transistors, resistors, capacitors, and diodes ensure signal integrity, filtering, and protection, while built-in fault detection supports system interlocks for over-range or abnormal conditions.

AMPLIFIER AND DRIVE CARDS:

These cards, including temperature control, speed control, and excitation amplifier modules, receive input signals from devices such as thermocouples, RTDs, or turbine sensors, amplify them to levels suitable for system processing, and provide precise output to downstream control elements. Equipped with active and passive components like transistors, relays, resistors, capacitors, and diodes, they ensure signal integrity, galvanic isolation, and protection against faults or abnormal conditions. By maintaining accurate signal amplification and driving capabilities, Amplifier & Drive Cards enable real-time monitoring, control, and protection of turbine operations, ensuring optimal performance, safety, and reliability in industrial applications.

SERIAL COMMUNICATION INPUT/OUTPUT MODULE:

It manages both digital and analog signals, converting them into standardized communication formats for seamless integration with controllers, sensors, and actuators. By providing high-speed, error-checked serial communication, the module ensures accurate transmission of control commands and feedback signals in real time. Built with robust circuitry, it supports multiple I/O channels, protects against electrical noise, and maintains system integrity under demanding industrial conditions. This module is critical for monitoring, controlling, and synchronizing turbine operations, enabling precise automation, fault detection, and efficient system performance.

World of Controls (WOC) offers the largest stock of GE Speedtronic Control System replacement parts, including unused and fully rebuilt boards backed by a comprehensive warranty. In addition to supplying high-quality components, we provide expert repair and refurbishment services to restore faulty boards quickly and reliably. Our team of skilled engineers is available 24/7 to support all your OEM and automation needs, offering technical guidance, immediate replacements, and long-term solutions. For pricing, availability, or repair inquiries, contact our experts by phone or email to ensure your turbine control systems operate efficiently and without interruption.

FREQUENTLY ASKED QUESTIONS:

Which sensors are compatible with this card?

The card typically supports thermocouples (J, K, T), RTDs (DIN PT-100), and thermistors (2252 Ohms, 10k Ohms). These inputs are conditioned and amplified for precise measurement and control. Compatibility allows integration with a variety of industrial temperature sensing devices.

What are the typical voltage and current specifications?

These cards generally operate on 9–36 VDC for board power with coil voltages in the 250–300 V range and current ratings of 1–15 A. Such specifications ensure compatibility with standard industrial turbine control systems.

How is the card integrated into turbine control systems?

It is typically mounted on a backplane or rack system, interfacing directly with sensor inputs and actuator outputs. Signal routing, power distribution, and interlock connections follow industry-standard protocols to ensure reliable operation within Speedtronic or other turbine control architectures.
