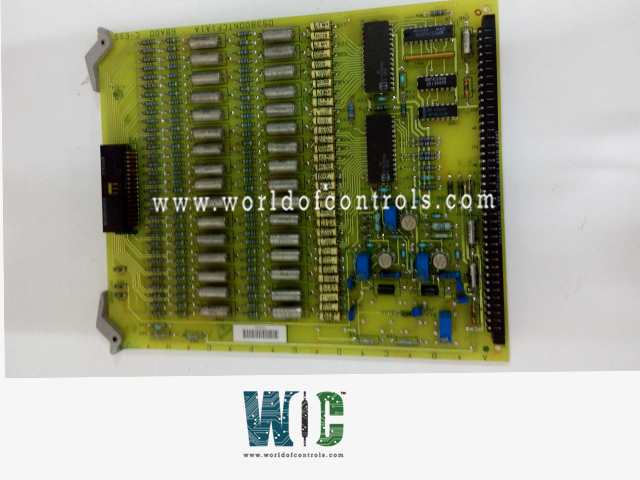

DS3800NTCF1 - Thermocouple condition card

SPECIFICATIONS

Part No.: DS3800NTCF1
Manufacturer: General Electric
Series: Mark IV
Product type: Thermocouple condition card
Repair: 3-5 Days
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

DS3800NTCF1 is a Thermocouple condition card developed by GE. It is a part of the Mark IV control system. The GE Thermocouple Condition Card is a component in the Mark IV Speedtronic control system, providing essential temperature measurement and safety functionality. With its robust construction and thoughtful design elements.

Features

• Measure the temperature of turbines or other machinery. This temperature data is crucial for high-temperature safety shutdowns and process control, ensuring that the equipment operates within safe temperature limits. The measured temperatures are also forwarded to interface modules for real-time monitoring and display, providing operators with critical temperature information.
• Connectors
  • 218A4637-P4 8933: A male connector is located to the right of the board.
  • 218A4553-1 Amp 533002-1 8931: A right-angled connector is located to the left of the board.
• Polyester Vinyl Capacitors: Line of 708D1 .0022 +/- 2 percent M/c 200V capacitors for stable performance.
• 8847C Capacitors: Two lines of 47K +10VDC capacitors for filtering and noise reduction.
• Installed using two extractor clips, which are essential for safely installing or removing the board from tight spaces without damaging the components or wiring. The nylon clips provide both a handle for grasping and a lever point for extraction, making the installation and removal process more efficient and secure.

World of Controls has the most comprehensive collection of GE Mark IV components. Please contact WOC as soon as possible if you require any extra information.

Frequently Asked Questions



What is DS3800NTCF1?
It is a Thermocouple condition card developed by GE

What is the purpose of the Operation/Control Group?
The Operation/Control Group contains switches that allow the operator to manage the primary operations of the gas turbine equipment, including starting, stopping, and modifying operational parameters.

How does the Emergency Stop Pushbutton function?
The Emergency Stop Pushbutton is a safety feature that allows the operator to immediately halt the operation of the gas turbine in an emergency. It is active in all modes of operation, ensuring that it can be used at any time.
