World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
DS200ADMAH1AAC - ANALOG TO DIG.MODULE CONF/COAT is available in stock which ships the same day.
DS200ADMAH1AAC - ANALOG TO DIG.MODULE CONF/COAT comes in UNUSED as well as REBUILT condition.
To avail our best deals for DS200ADMAH1AAC - ANALOG TO DIG.MODULE CONF/COAT, contact us and we will get back to you within 24 hours.REQUEST FOR QUOTE CONTACT US

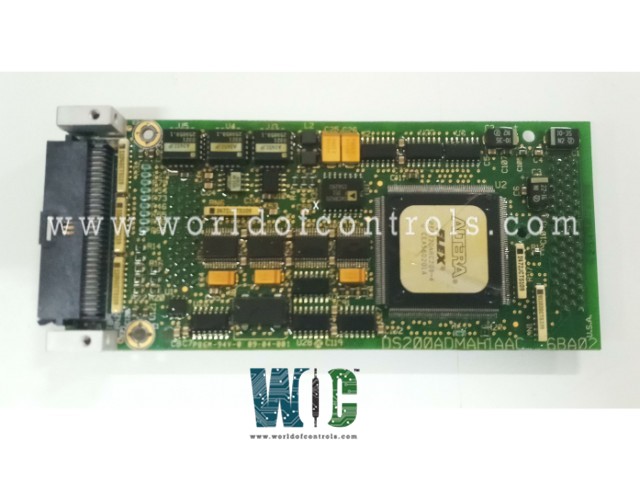

The Speedtronic Mark V Gas turbine Control system is one of the most established derivative of the Speedtronic Series. The Mark V system is designed to fulfill all gas turbine Control requirements.The Mark V control boards and control cards part numbers belong to the DS200 series.The Mark V Turbine control system uses digital microprocessors to control the Gas Turbine. The Mark V speedtronic system uses a triple redudant 16bit microprocessor controller. DS200ADMAH1A (ADMA) is an analog to digital module and this belongs to the Mark V board series. DS200ADMAH1A is a daughter board and this can be connected to GE brand drives and Exciters. Once the DS200ADMAH1A is installed in DSPC board this card buffers,filters, and converts analog and I/O fed to the drive. Installation parameters should be followed to make sure that the DS200ADMAH1A As well as the installed drive operate smoothly.
Once DS200ADMAH1A is installed in DSPC board it ensures that all I/O functions are accurately read and transmitted correctly. In addition to this the daughterboard also supports twelve more analog inputs.In DS200ADMAH1A an on board programmable logic is used, which helps to provide interfacing capabilities between the ADMA I/O and DSPC Processor buses. Two LED indicators, one green IMOK LED and one red fail LED are displayed on board to alert users to any errors.
DS200ADMAH1A has three Analog inputs and four Analog outputs. DS200ADMAH1A connects to an external high voltage terminal DS200DDTB.
WORLD OF CONTROLS warrants that from the date of delivery for a period of 36 months all UNUSED / REBUILT goods shall conform in all material respects with their description and any applicable specification.
WORLD OF CONTROLS warrants that from the point of delivery all Repairs will accord with their description and/or remain functional subject to the performance of the Repair Item for a period of 24 months.
