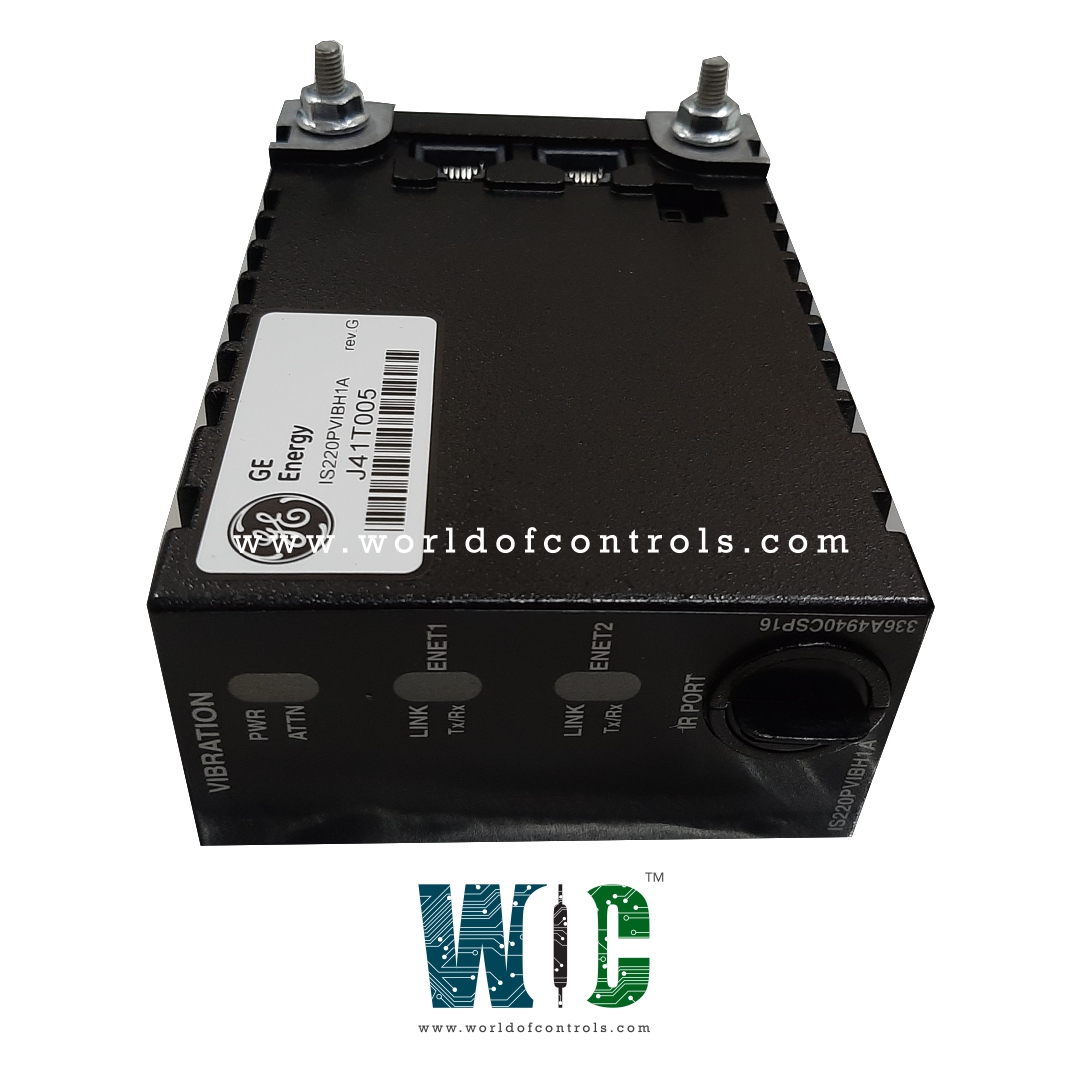

IS220PVIBH1A, REV G - Vibration Monitor Board

TECHNICAL SPECIFICATIONS:

Part Number: IS220PVIBH1A, REV G
Manufacturer: General Electric (GE)
Series: Mark VIe Speedtronic Control Systems
Functional Acronym: PVIB
Product Type: Vibration Monitor Input Pack / Module
Hardware Revision: Rev G
Total Sensor Channels: 8 independent vibration/proximity channels
Supported Transducers: Proximitors (proximity probes), Accelerometers, Velocity limit sensors
Analog Input Voltage Range: -24 V DC to 0 V DC (Nominal proximity range)
A/D Conversion Resolution: 24-bit high-resolution Analog-to-Digital Converter
Scan Time / Frame Rate: 10 milliseconds (100 Hz core task rate)
Frequency Response Range: 0.5 Hz to 10 kHz (Configurable low/high-pass filters)
Network Communication: Dual 10/100BaseTX RJ45 Ethernet ports (Redundant IONet links)
Power Input Requirement: 28.0 V DC nominal (27.4 V DC to 28.6 V DC operational range)
Power Consumption: 5.8 W typical, 6.8 W maximum
Substrate Protection: Heavy industrial-grade conformal coating
Ambient Operating Temperature: -30°C to +65°C (-22°F to +149°F)
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 5% to 95% non-condensing
Repair / Evaluation Lead Time: 3–5 Business Days
Availability: In Stock
Country of Origin: United States (USA)
Manual Reference: GEH-6721D

FUNCTIONAL DESCRIPTION OF IS220PVIBH1A, REV G:

The IS220PVIBH1A, REV G is a Vibration Monitor Board designed and manufactured by General Electric for the Distributed Mark VIe turbine control Systems. The PVIB provides the electrical interface between one or two I/O Ethernet networks and the TVBA vibration terminal board. The pack contains a processor daughterboard. The pack uses channels 1 through 8 to read vibration or proximity information from the following sensor types: Proximitors, accelerometers with an integrated output (Channels 1-3 only), Velomitor, or seismics. Channels 9 through 12 only support proximitors, and channel 13 can input either a Keyphasor signal type or a proximity-type signal. Input to the pack is through dual RJ45 Ethernet connectors and a 3-pin power input. The PVIB supports dual Ethernet networks for frame rates slower than 100 Hz. It supports a single Ethernet network for frame rates of 3.125, 6.25, 12.5, 25, 50, and 100 Hz. Output is through a DC-37 pin connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs, and local diagnostic serial communications are possible through an infrared port.

INSTALLATION:

• Directly plug one PVIB I/O pack for simplex or three PVIB I/O packs for TMR into the terminal board connectors.
• Mechanically secure the packs using the threaded studs adjacent to the Ethernet ports. The studs slide into a mounting bracket specific to the terminal board type.
• The bracket location should be adjusted such that there is no right-angle force applied to the DC-37 pin connector between the pack and the terminal board. The adjustment should only be required once in the life of the product.
• Plug in one or two Ethernet cables depending on the system configuration. The pack will operate over either port. If dual connections are used, the standard practice is to connect
• ENET1 to the network associated with the R controller.
• Apply power to the pack by plugging in the connector on the side of the pack. It is not necessary to insert this connector with the power removed from the cable. The I/O pack has inherent soft-start capability that controls current inrush on power application.
• Verify that the TVBA's N28 power supply daughterboard is seated properly in the TVBA connector.

OPERATION:

The processor application code contains all the logic necessary to allow the pack to operate from one or two Ethernet inputs. When operated from two Ethernet inputs, both network paths are active all the time. A failure of either network will not result in any disturbance to the I/O pack operation, and the failure will be indicated through the working network connection. This arrangement is more tolerant of faults than a classic hot-backup system where the second port is only used after a primary port failure is detected. The Ethernet ports on the processor auto-negotiate between 10 MB/s and 100 MB/s speed, and between half-duplex and full-duplex operation. An industry-standard infrared serial communications port is provided on the processor board. Accessible through the pack front, this port provides diagnostic information on the pack status and the ability to program the pack when both Ethernet connections fail. It is possible to communicate with this port using most notebook computers and most hand-held Personal Digital Assistants (PDA).

• High-speed processor with RAM and flash memory
• Two fully independent 10/100 Ethernet ports with connectors
• Hardware watchdog timer and reset circuit
• Local ambient temperature sensor
• Infrared serial communications port
• Status-indication LEDs
• Electronic ID and the ability to read IDs on other boards
• Substantial programmable logic supporting the acquisition board
• Input power connector with soft start/current limiter
• Local power supplies, including sequencing and monitoring

VIBRATION MONITORING APPLICATION FIRMWARE:

Channels 1 through 3 can be used for position information from Proximitors, wideband vibration information from Proximitors, accelerometers with integrated outputs, Velomitors, and Seismics. 1x and 2x information can be derived from Proximitors viewing axial vibration information when a Keyphasor is used. Tracking filters are normally used in Mark V LM control applications. Gapx_Vibx_Wideband_Filtering runs every 10 ms, activating the low-pass filter for the gap calculation, the wideband vibration filter, and the maximum/minimum detection for the peak-to-peak calculation. The Gap Scaling and Limit Check runs at the frame rate. This function converts the gap value from counts to the desired engineering units (EU). The system limit check provides the user with two detection limits and Boolean outputs for the status. The Vibx Wideband Scaling and Limit Check block runs every frame. The peak-to-peak calculation is based on the Vmax and Vmin values of the Gapx_Vibx Wideband Filtering. The wideband peak-to-peak signal is filtered and then scaled to EU. The re-scaled wideband peak-to-peak signal is then run through a limit check. The limit check provides the Booleans, SysLim1VIBx and SysLim2VIBx, for the limit check status.

WHY PARTNER WITH WORLD OF CONTROLS:

World of Controls specializes in supplying high-quality, warranty-backed OEM replacement parts, including unused surplus and professionally rebuilt components for critical turbine control and industrial automation systems like the General Electric Mark VI and Mark VIe platforms. To minimize customer downtime and ensure original equipment standard compliance, every component undergoes rigorous inspection, testing, and verification in an advanced electronics lab. Beyond parts distribution, the company delivers comprehensive, global support through 24/7 technical assistance, expert troubleshooting, component repair services, and rapid shipping, ensuring optimal efficiency and long-term reliability for critical industrial operations worldwide.

FREQUENTLY ASKED QUESTIONS:

What is GE IS220PVIBH1A REV G?

The GE IS220PVIBH1A REV G is a Vibration Monitor I/O Pack designed for GE Mark VIe Distributed turbine control systems to collect and process vibration and proximity signals from turbine monitoring sensors.

What sensors are supported by this vibration monitor module?

This vibration monitor module supports proximity probes, accelerometers, Velomitors, seismic vibration sensors, and Keyphasor signals for turbine vibration and position monitoring applications.

Is this GE vibration monitor compatible with Mark VIe systems?

Yes, this vibration monitor is designed for GE Mark VIe Distributed Turbine Control Systems and connects with compatible vibration terminal boards for reliable turbine monitoring.

Where can I buy this GE Mark VIe vibration monitor board?

You can buy this vibration monitor board from World of Controls, which supplies unused and rebuilt GE turbine control spare parts with testing, repair, exchange options, and warranty support.

Can this GE vibration monitoring module be repaired?

Yes, this vibration monitoring module can be repaired, tested, and refurbished by experienced turbine control specialists to restore reliable operation in critical industrial applications.

What systems use this vibration monitor board?

This vibration monitor board is used in GE Mar VIe Speedtronic turbine control systems, gas turbine generator applications, and industrial rotating equipment monitoring systems.
