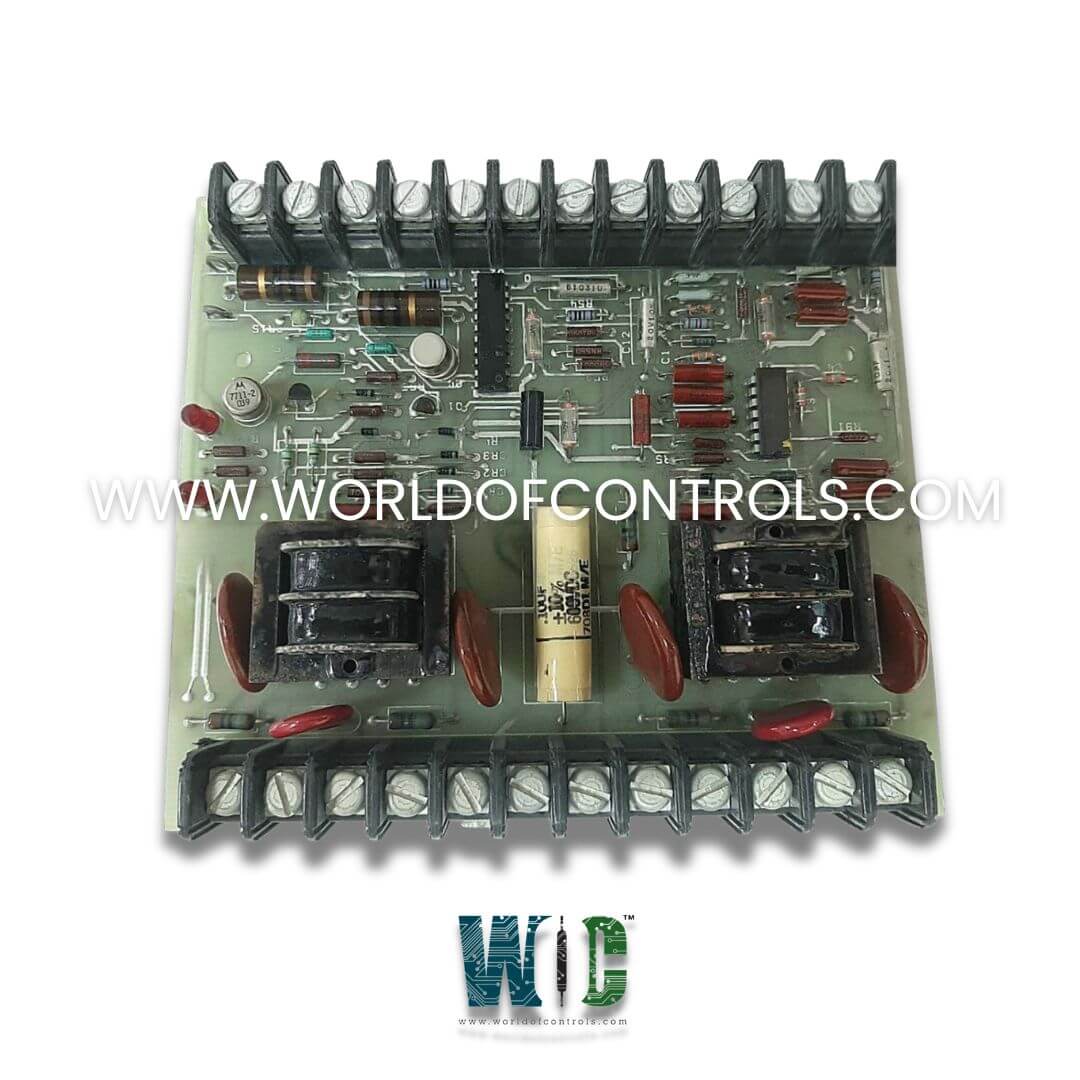

IC3606SASB1A - Auto-Synch Module

SPECIFICATIONS

Part No: IC3606SASB1A
Manufacturer: General Electric
Function: Auto-Synch Module
Series: Mark I and II
Repair: 3-7 Day
Availability: In Stock
Country of Manufacturer: United States (USA)

Functional Description

IC3606SASB1A is an over-temperature Card developed by GE. It is a part of Mark I and II control system. It is responsible for monitoring temperature signals, typically exhaust or combustor temperatures and triggering a response when readings exceed safe operating thresholds. When an over-temperature condition is detected, the card initiates a fuel cutback or system alarm to prevent further temperature rise and potential damage to turbine components such as nozzles, blades, or combustion liners.

Features

• Temperature Monitoring: Continuously receives temperature input signals for evaluation.
• Threshold Comparison: Built-in logic compares actual readings against preset limits.
• Protective Action Triggering: Sends signals to initiate fuel cutback or generate alarms upon over-temperature detection.
• Compatibility: Specifically engineered for integration within the Mark I and II SPEEDTRONIC control racks.
• Reliability: Designed with industrial-grade components for continuous, high-reliability operation in harsh turbine environments.

Integration with System Features

• Minimum VCE (Valve Command Equivalent) System: This feature ensures that during fuel cutback, whether triggered by temperature, speed, or other protective inputs—the fuel flow does not drop below a minimum threshold. This prevents flame-out by maintaining enough fuel for combustion while still reducing the turbine load to mitigate the over-temperature condition.
• Manual VCE Control: The system allows an operator or start-up technician to manually control the VCE, giving them direct influence over fuel flow during start-up, troubleshooting, or special operating conditions. Even when manual VCE is engaged, the system's protective logic (including inputs from the over-temperature card) remains active and can override manual inputs to protect the turbine.

This dual control approach—manual flexibility combined with automatic protection—makes the Mark I and II systems robust for a variety of operating scenarios, from initial turbine commissioning to long-term automated operation.

WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is IC3606SASB1A?
It is an Over-temperature Card developed by GE.

What is VCE and how is it related to this card?
VCE (Valve Command Equivalent) refers to the control logic for fuel flow. The over-temperature card interacts with the VCE system to reduce fuel during high-temperature conditions. The Minimum VCE logic ensures fuel is not cut back so much that the flame extinguishes.

Can operators override the over-temperature function?
Operators can use Manual VCE control during startup or troubleshooting, but protective functions like over-temperature cutback still operate through priority logic to protect the turbine from unsafe conditions.
