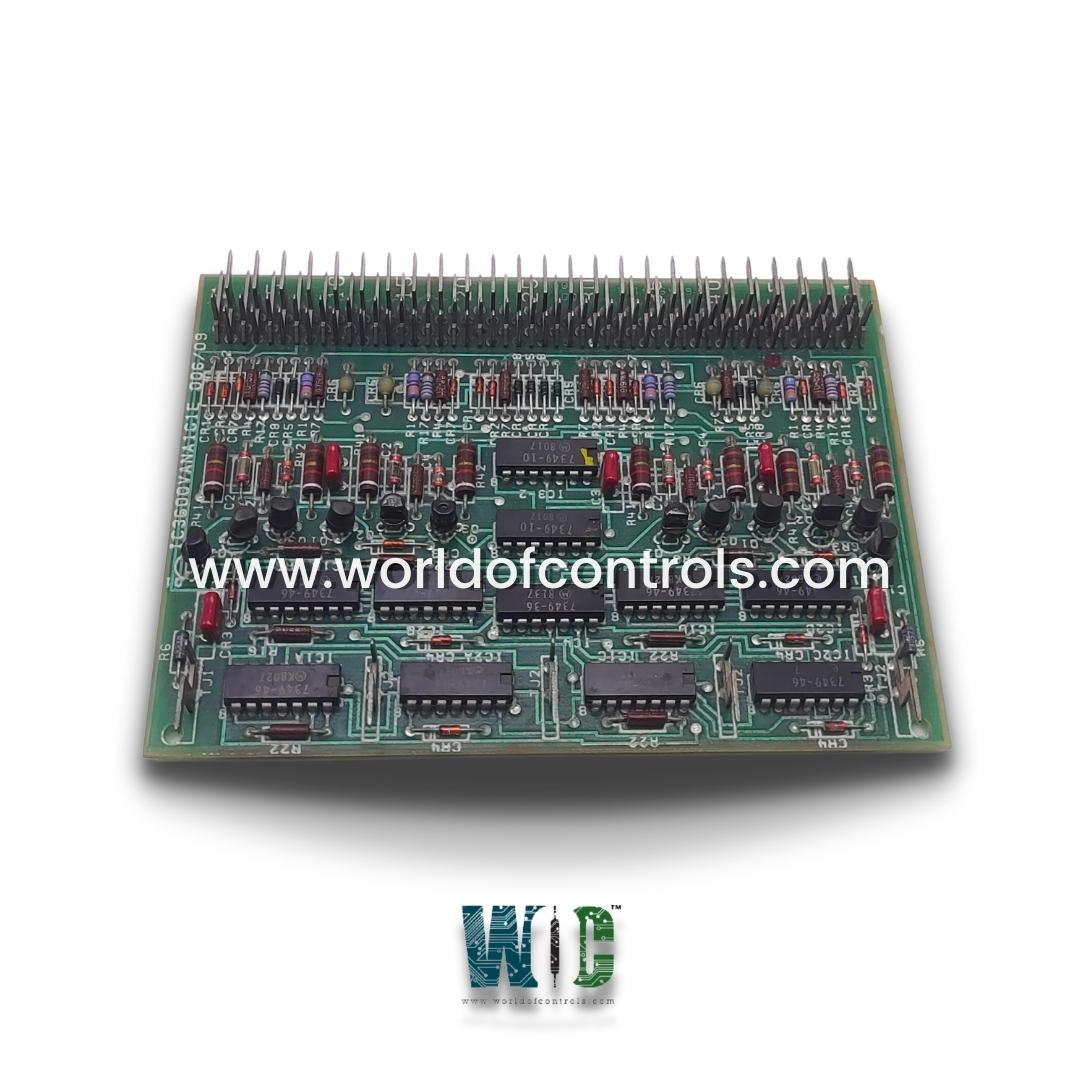

IC3600VANA1G1E - Annunciator Board

SPECIFICATIONS

Part Number: IC3600VANA1G1E
Manufacturer: GE Fanuc
Country of Manufacture: United States(USA)
Availability: In Stock
Product Type: Annunciator Board

Functional Description

IC3600VANA1G1E is an Annunciator Board manufactured by GE Fanuc. It is a part of Mark I and II control systems. The primary function of the board is to provide visual and/or audible status indications and fault alerts to operators. It plays a role in the monitoring and notification framework of the turbine system by collecting input from various sensors and subsystems.

System Features

• The gas turbine control system is equipped with a comprehensive monitoring system designed to enhance operational safety and efficiency. This system integrates a multi-point annunciator, which serves as a vital alert mechanism for detecting and signaling abnormal conditions within the turbine and its auxiliary components. The annunciator continuously monitors the various parameters of the gas turbine and its associated systems during both startup and operational phases.
• The multi-point annunciator is a sophisticated tool that provides real-time notifications of potential issues or malfunctions, helping to ensure that any deviations from normal operating conditions are promptly addressed. This helps operators to prevent further damage to the turbine or its components, minimizing downtime and ensuring consistent performance.
• One of the standout features of the annunciator is the "first out flashing" function. When an abnormal condition is detected, the first fault to be registered by the system will cause the corresponding alarm to flash. This visual cue is crucial for operators during troubleshooting, as it immediately directs attention to the origin of the fault, allowing for faster identification and resolution of the issue. This feature reduces response time in critical situations and aids in maintaining the overall integrity of the turbine system.
• In addition to the annunciator, the control system incorporates supporting circuitry that continuously assesses the health and status of the turbine and its auxiliary systems. These circuits help to provide detailed insights into system performance, offering additional data points to guide operators in decision-making processes.
• Through the integration of advanced monitoring technologies, the gas turbine control system ensures that potential issues are detected early, enabling timely interventions and enhancing the overall reliability and longevity of the turbine unit. This sophisticated monitoring setup plays a key role in maintaining the operational safety of power plants and minimizing operational disruptions.

WOC has the largest stock of Speedtronic Mark II Spare Parts and we can repair your faulty spares with a warranty. Our team of experts is available to support your urgent needs related to critical spares, contact us.

FREQUENTLY ASKED QUESTIONS

What is GE Fanuc IC3600VANA1G1E?
It is an Annunciator Board used in gas turbine control systems.

Are alarms always triggered before a shutdown?
In most cases, yes. The system is designed to first trigger an alarm at a lower threshold. This gives operators time to respond before the system proceeds to shut down the turbine automatically.

Can the protective system be customized for specific applications?
Absolutely. The protective system can be tailored to include additional functions like fire detection, combustion monitoring, or compressor stall protection based on the turbine’s operational requirements.
