IC3600SVDC1F1C - Vibration Detector Board

SPECIFICATIONS

Part No.: IC3600SVDC1F1C
Manufacturer: General Electric
Product Type: Vibration Detector Board
Series: Mark I and II

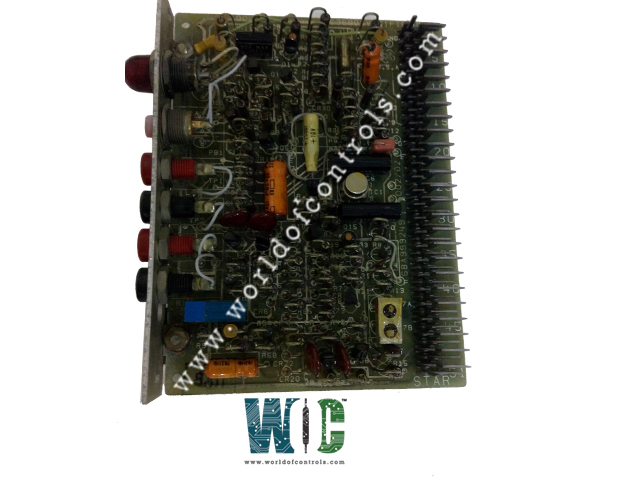

IC3600SVDC1F1C is a Vibration detector board developed by GE under Mark I and Mark II series. The Mark turbine management line's original set of products were these. A printed circuit board, or PCB, is the name for this device.

• A metal plate is mounted to one side of the PCB. A red LED (light-emitting diode) is located on the plate's top. There are five buttons below that, each with a different function. There are three red buttons and two black buttons in this set.
• A series of transistors are also strewn throughout the PCB. While the majority of these transistors are small, black, and half-circle-shaped, one is larger, silver, and round. The initial Q is written on each transistor. On the board, there are also several capacitors. Some of these capacitors are orange, while others are yellow and smaller. There are a few capacitors that are rectangular in shape in addition to these circular capacitors.
• One potentiometer, commonly known as a variable resistor, is located near the metal plate on the PCB. The card also includes a few MOVs (metal oxide varistors). These components are brown or crimson in color and circular.

World of Controls has the most comprehensive selection of Turbine control components. If you require Turbine control spare parts, please contact us as soon as possible.



Frequently Asked Questions



What is IC3600SVDC1F1C?
IC3600SVDC1F1C is a Vibration detector board developed by GE under Mark I and Mark II series.

How to Obtain IC3600SVDC1F1C?
World of Controls provides IC3600SVDC1F1C as well as other turbine control products. Contact WOC.
