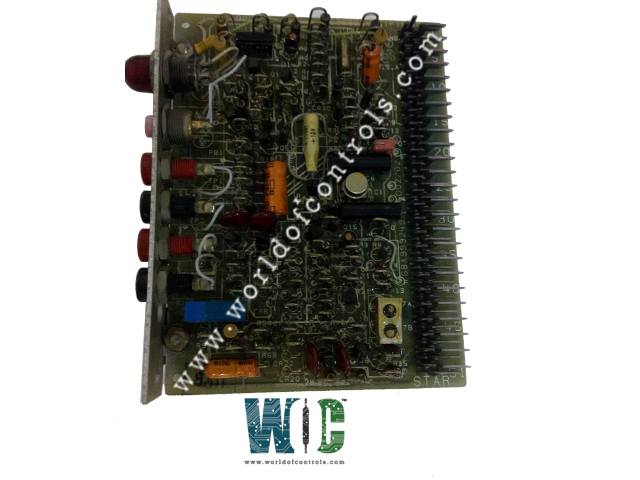

IC3600SVDC1E - Vibration Detection Board

IC3600SVDC1E - Vibration Detection Board IC3600SVDC1E - Vibration Detection Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IC3600SVDC1E - Vibration Detection Board is available in stock which ships the same day.

IC3600SVDC1E - Vibration Detection Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IC3600SVDC1E - Vibration Detection Board, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: IC3600SVDC1E
Manufacturer: GE Fanuc
Country of Manufacture: United States(USA)
Availability: In Stock
Product Type: Vibration Detection Board (SCB)

Functional Description

IC3600SVDC1E is a Vibration Detection Board manufactured by GE Fanuc. It is a part of Mark I and II control systems. The board monitors and detects vibrations in mechanical systems, particularly in turbines and other rotating machinery. Vibration detection is essential to ensure the safe and efficient operation of these systems, as excessive vibration can indicate mechanical faults, misalignments, or other issues that could lead to equipment damage or failure.

Features

  • Continuously monitors vibration levels from sensors connected to the turbine or other mechanical components. It analyzes the data in real time, looking for irregularities or sudden increases in vibration that could signal potential problems, such as imbalance, looseness, or bearing wear.
  • The board processes signals from vibration sensors, converting them into usable data for the control system. This typically involves amplification, filtering, and digital conversion of the sensor’s analog signals to ensure accurate monitoring.
  • In the event of abnormal vibration levels, it can trigger alarms to alert operators of a potential issue. The alarm signals can be used to initiate preventive actions, such as reducing load, performing maintenance checks, or shutting down the system to prevent further damage.
  • The board provides real-time feedback to the control system, which can then adjust parameters or execute shutdown procedures to minimize damage and avoid catastrophic failures. This feedback loop is essential for maintaining system integrity, especially in high-speed rotating equipment like turbines.
  • The board accepts input from vibration sensors placed at various points within the turbine or machinery, converting these analog signals into digital data for analysis.
  • It can generate alarm outputs based on predefined vibration thresholds, ensuring that operators are notified promptly when intervention is required.

WOC has the largest stock of Speedtronic Mark II Spare Parts and we can repair your faulty spares with a warranty. Our team of experts is available to support your urgent needs related to critical spares, contact us.

FREQUENTLY ASKED QUESTIONS

What is GE Fanuc IC3600SVDC1E?
It is a Vibration Detection Board used in gas turbine control systems.

What is the turbine control panel used for?
The turbine control panel is the central interface for managing and monitoring turbine operations. It houses key control and communication hardware that links the turbine sensors, actuators, and the microcomputer. This panel allows operators to view operational data, adjust settings, and ensure the turbine operates within safe and optimal parameters.

What types of sensors are used in the turbine control system?
The turbine control system uses a variety of sensors, including thermocouples to measure temperature at critical points within the turbine. Pressure transducers for monitoring pressure levels in the combustion chamber and other parts of the turbine. Flow meters measure fuel and air flow rates.
