IC3600STKK1J - Speedtronic Temperature Control Board

SPECIFICATIONS

Part No.: IC3600STKK1J
Manufacturer: General Electric
Product Type: Temperature Control Board
Availability: In Stock
Series: Mark I and II

Functional Description

IC3600STKK1J is a Temperature Control Board developed by GE Fanuc. It is a part of GE's Mark I and Mark II Speedtronic control systems. These Speedtronic systems were developed by GE for the precise control and protection of industrial gas turbines, playing a critical role in temperature regulation, system stability, and overall performance optimization.

Features

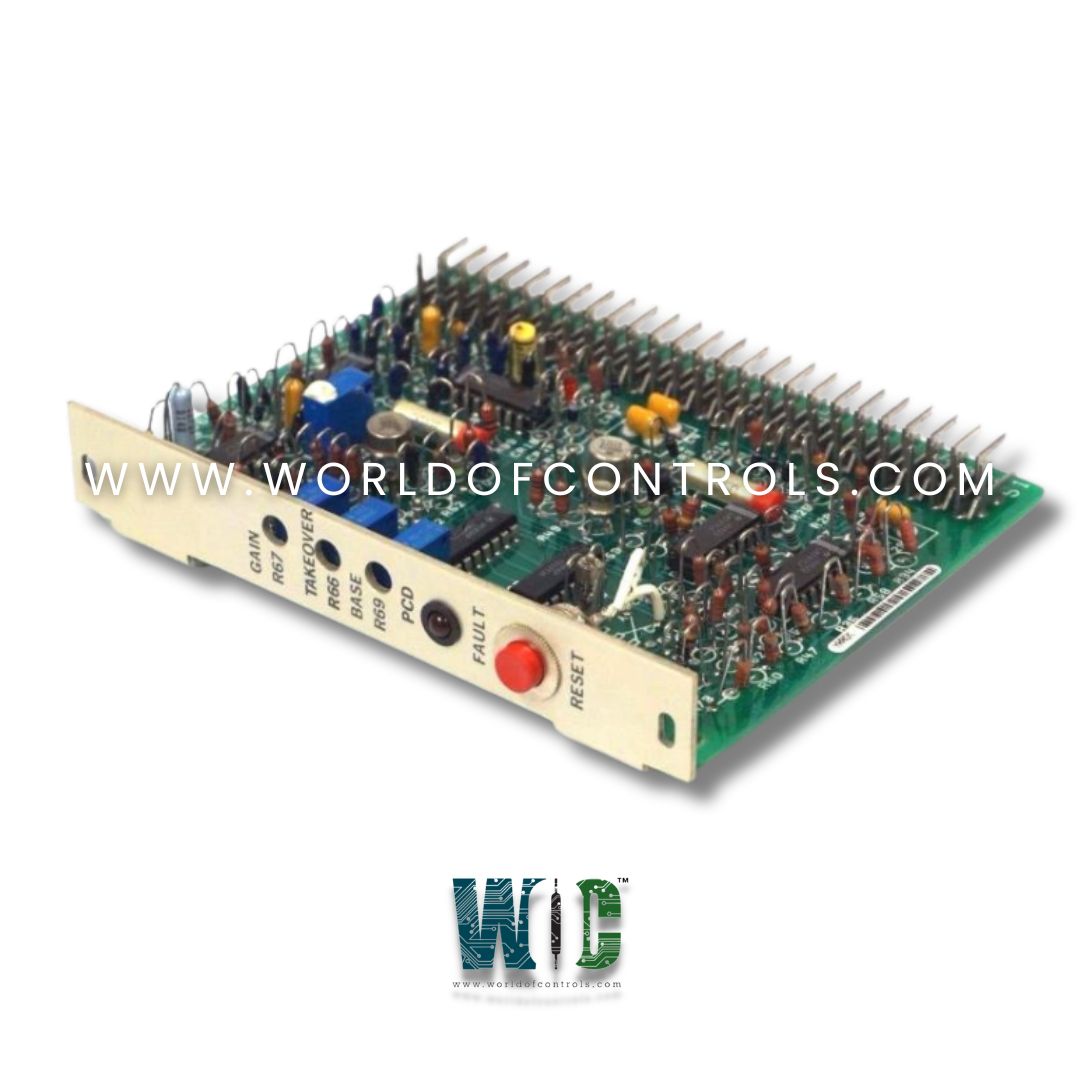

This board is characterized by its elongated plate design, housing electronic components essential for temperature monitoring and control. One of the key visual features on the board is a light-emitting diode (LED) labeled FAULT, which serves as a visual indicator to alert operators of abnormal operating conditions or system faults. RESET allows operators to clear fault indications and attempt a system reset after diagnosing or correcting the issue.

Additionally, the board includes several important variable resistors (potentiometers) used for tuning and calibration. These include:

• GAIN R67: Used to adjust the gain in the control loop, affecting how the system responds to temperature fluctuations.
• TAKEOVER R66: Likely involved in managing the transition or takeover functions within the control logic.
• BASE R69: Adjusts base-level signal reference or biasing.
• PCD: Could represent a signal related to pressure or a specific diagnostic function, depending on the system configuration.

Together, these elements allow the board to maintain accurate and reliable temperature control within GE's turbine systems, contributing to safe operation and efficient turbine performance. It is a vital component in legacy GE turbine control infrastructure and remains in use or stock for maintenance and replacement in compatible systems.

The WOC team is always available to help you with your Mark I and II requirements. For more information, please contact WOC.

Frequently Asked Questions

What is IC3600STKK1J?
It is a Temperature Control Board developed by GE under Mark I and II series.

What does the FAULT LED indicate?
The FAULT LED lights up when the system detects an error related to temperature control, signaling the need for operator attention.

What is the purpose of the RESET button?
The RESET button allows operators to clear the fault condition and restart the monitoring cycle after troubleshooting or correcting the issue.
