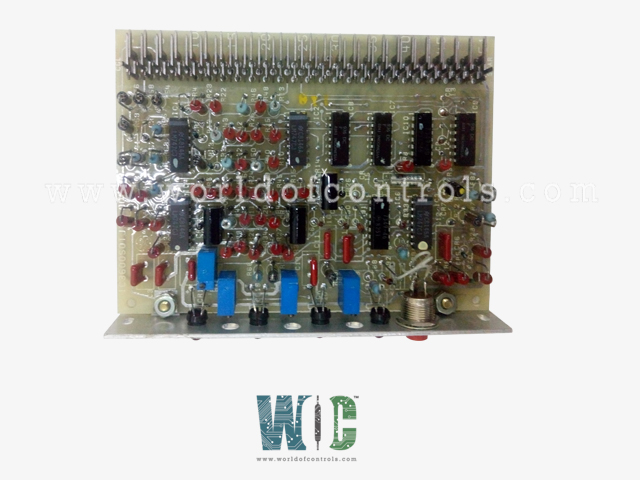

IC3600SOTE - Over Temperature Drive Card

SPECIFICATIONS:

Part No: IC3600SOTE
Manufacturer: General Electric
Product Type: Over Temperature Drive Card
Series: Mark I & II
Input Voltage: 100-240V AC, 50/60Hz
Output Current: 0.15 A AMP
Output Voltage Range: 0-50V DC
Operating Temperature: -20°C to +70°C
Measurement Accuracy: ±1°C to ±5°C
Resolution: 10mV/10mA
Availability: In Stock
Weight: 2.5 kg
Dimensions: 6.00 x 6.00 x 5.00
Country of Origin: USA

FUNCTIONAL DESCRIPTION:

IC3600SOTE is a Over Temperature Drive Card manufactured and designed by General Electric and is part of the Mark II Series used in GE Fanuc Control systems. An Over Temperature Drive Card is a critical component used in various electronic and industrial systems to monitor and safeguard against excessive temperatures. This card plays a vital role in the drive system of machinery or equipment, such as motors or turbines, by continuously measuring the temperature of key components. When it detects the temperature has surpassed a predefined threshold, the card activates protective measures to prevent potential damage. These measures can include shutting down the system, reducing its operational load, or triggering cooling systems. Additionally, the card can send alerts or notifications to operators, prompting them to take corrective action. By ensuring that the equipment operates within safe temperature ranges, the Over Temperature Drive Card helps enhance the reliability and longevity of the system, making it indispensable in applications like electric drives, HVAC systems, and other industrial machinery where temperature control is essential. Here's a brief overview of its function:

• Temperature Monitoring: The card monitors the temperature of the drive system or specific components within the system. It can have sensors or interfaces to measure temperature accurately.

• Protection Mechanism: When the temperature exceeds a predefined threshold, the card triggers a protection mechanism. This might involve shutting down the system, reducing its operational load, or activating cooling systems to prevent damage.

• Safety Alerts: It can also send alerts or notifications to operators or control systems, indicating that the temperature is too high and that corrective action is needed.

• Integration: Over Temperature Drive Cards are integrated into drive systems to ensure they operate within safe temperature ranges, improving the reliability and longevity of the equipment.

• Applications: Commonly used in various applications including electric drives, HVAC systems, and industrial machinery where temperature control is crucial for safe and efficient operation.

WOC has the largest stock of replacement parts for GE Speedtronic Gas turbine control systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is an Over Temperature Drive Card?

An Over Temperature Drive Card is a protective component used in electronic and industrial systems to monitor temperature levels and prevent overheating by triggering alarms or shutdowns when temperatures exceed safe thresholds.

Why is it important to use an Over Temperature Drive Card?

Using an Over Temperature Drive Card helps prevent damage to equipment, reduces the risk of system failures, and extends the lifespan of machinery by ensuring it operates within safe temperature ranges.

What temperature ranges can the card monitor?

The card typically monitors temperatures in the range of -20°C to +70°C, with customizable threshold settings usually between 50°C and 100°C or higher, depending on the specific application.
