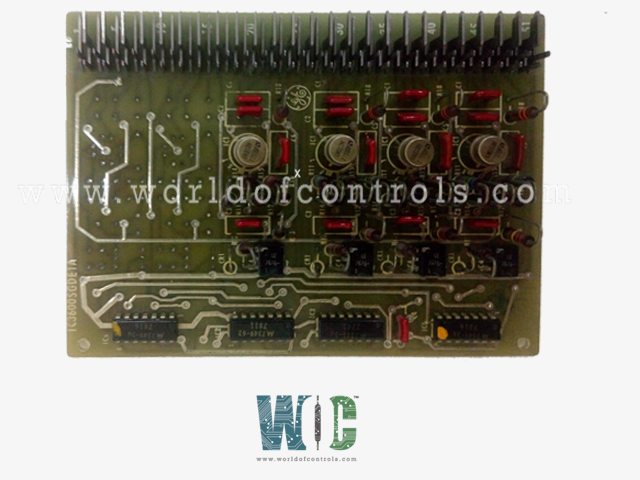

IC3600SGDE1 - Ground Detector Card

SPECIFICATIONS

Part Number: IC3600SGDE1
Manufacturer: General Electric
Series: Mark I and II
Function: Ground Detector Card
Repair: 3-7 Day
Technology: Surface-mount
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

IC3600SGDE1 is a Ground Detector Card manufactured and designed by General Electric. It is a part of Mark I and II control system. It is used to detect ground faults or unintended grounding in the electrical circuitry of the control system. By monitoring insulation and identifying grounding issues it helps prevent potential equipment damage and unsafe operating conditions. The SGDE (Ground Detector) Card is an integral component of the Thermocouple Processing Module used in General Electric’s turbine control systems, specifically in the context of temperature monitoring in turbine exhaust ducts. This card works alongside two STKJ cards to process and monitor signals from thermocouples, which are essential for measuring exhaust temperatures in turbines.

Role in the Thermocouple Processing Module

• The Thermocouple Processing Module is responsible for handling inputs from six of the twelve Chromel-Alumel thermocouples mounted in the turbine exhaust duct. These thermocouples generate electrical signals proportional to the temperature in the exhaust system.
• The two thermocouple signals are averaged to create more stable readings and then cold junction compensated and amplified by the STKJ cards. This process ensures that the resulting voltage signals are accurate and proportional to the actual exhaust duct temperature.
• These processed voltage signals, labeled TA and TB, are then used for two critical purposes:
  • Overtemperature Protection: The signals are routed to SOTJ cards, which help in monitoring and protecting the system from potential overheating.
  • Temperature Control: The signals are also sent to the STKK card for more precise temperature control in the turbine system.

SGDE Card’s Role

The card adds a crucial layer of safety and diagnostic functionality by detecting faults related to thermocouple grounding. If there is a grounding issue or fault in the thermocouple circuit, the SGDE card generates a fault signal, alerting the system to potential problems. This helps in preventing damage to the turbine and maintaining operational integrity.

• Fault Signal Indication: It indicates if a ground fault is detected in the thermocouple circuits, ensuring that any electrical anomalies are identified early.
• Safety: By detecting grounding issues, it helps protect the turbine and associated equipment from electrical hazards and prevents system malfunctions due to faulty readings.

WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, contact us.

FREQUENTLY ASKED QUESTIONS

What is IC3600SGDE1?
It is a Ground Detector Card manufactured and designed by General Electric.

How does the card work with other components in the system?
The card works in conjunction with STKJ cards and SOTJ cards in the thermocouple processing module. The STKJ cards process the thermocouple signals (which are cold junction compensated and amplified) and send them to the SGDE card. If a ground fault is detected, the SGDE card signals a fault, alerting the system to further action.

What are the inputs to the card?
The card receives signals that have been processed by the STKJ cards. These signals represent the temperature in the turbine exhaust duct, after being cold junction compensated and amplified.

Why is ground detection important in turbine systems?
Ground detection is vital to ensure the accuracy of the thermocouple readings and the safety of the entire turbine control system. Ground faults can lead to incorrect temperature readings, system malfunctions, or equipment damage, so early detection prevents costly failures.
