IC3600LLEA1C1C - Logic Inverter Circuit Board

SPECIFICATIONS

Part No: IC3600LLEA1C1C
Manufacturer: General Electric
Function: Logic Inverter Circuit Board
Series: Mark I and II
Repair: 3-7 Day
Availability: In Stock
Country of Manufacturer: United States (USA)

Functional Description

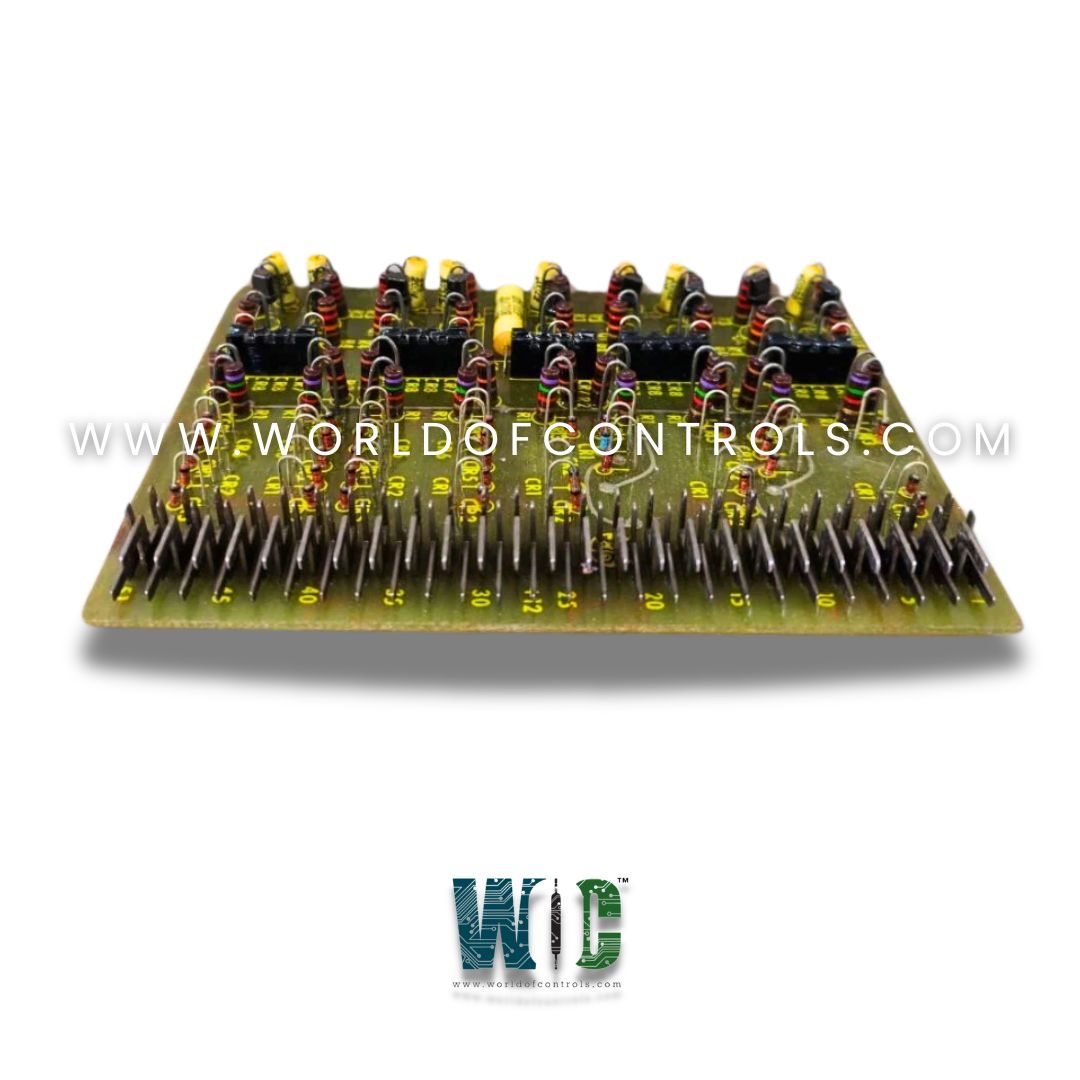

IC3600LLEA1C1C is a Logic Inverter Circuit Board developed by GE. It is a part of Mark I and II control system. Designed to manage and invert logic signals within the system. This inversion is essential for functions such as fault detection, sequencing, and interlocking, where specific logic conditions must be satisfied to ensure the safe and efficient operation of the turbine.

Mark I and II Protective Systems

• The basic gas turbine protective system plays a crucial role in maintaining the safe and reliable operation of the turbine by continuously monitoring critical parameters. Its primary purpose is to detect abnormal operating conditions and initiate a safe and orderly shutdown to prevent equipment damage, operational hazards, or catastrophic failure.
• To ensure reliability, this is achieved through separate and redundant shutdown devices, meaning that multiple independent mechanisms are in place to trigger shutdowns if necessary. The core protective functions integrated into the system typically include:
  • Overspeed Protection: Monitors the turbine’s rotational speed and triggers a shutdown if it exceeds a safe limit, preventing mechanical failure.
  • Overtemperature Protection: Detects excessive temperatures that could damage turbine components and initiates protective actions.
  • Lube Oil Pressure and Temperature Monitoring: Ensures the lubrication system maintains proper pressure and temperature, critical for protecting moving parts from wear and overheating.
  • Loss of Flame Detection: Monitors combustion stability; if a flameout occurs, the system quickly shuts down the turbine to prevent unsafe conditions.
  • Vibration Monitoring: Detects abnormal vibration levels that could indicate mechanical imbalance, misalignment, or bearing failures.

WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is IC3600LLEA1C1C?
It is a Logic Inverter Circuit Board developed by GE.

How does the protective system ensure reliability?
The system uses separate, redundant shutdown devices to provide multiple layers of protection. If one device fails, another is ready to act, ensuring a safe turbine shutdown when necessary.

What are the basic protective functions included in the system?
Core protective functions include overspeed protection, overtemperature protection, lube oil pressure and temperature monitoring, loss of flame detection, and vibration monitoring.
