IC3600LIVD1A - Speedtronic Logic Inverter Circiut Board

SPECIFICATIONS

Part Number: IC3600LIVD1A
Series: Mark I & II
Function: Inverter Board
Manufacturer: GE FANUC

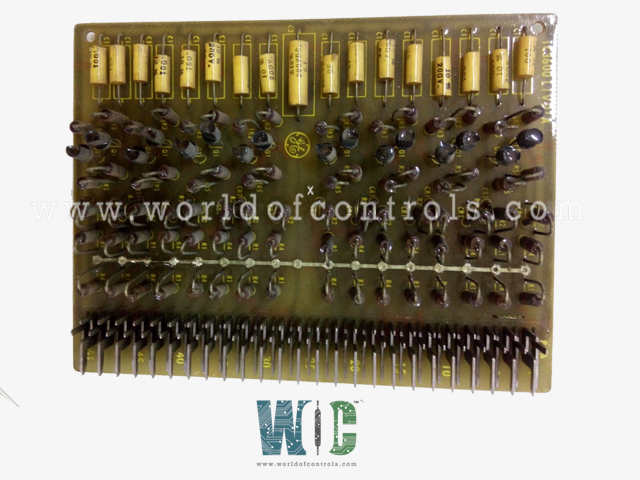

IC3600LIVD1A is a Logic Inverter Card and is part of the GE Fanuc gas turbine Mark I & II Series control systems. In a single line, the IC3600LIVD1A contains seventeen capacitors. On sixteen of these capacitors, C1 is written. All of these capacitors have a.001 10 0V rating and are made of polyester vinyl. The seventeenth capacitor is also constructed of polyester vinyl, but it has a +/- 10 0 VDC marking on it. This is referred to as C2. On the board, there are two lines of transistors, totaling sixteen transistors.

• Q1 is assigned to each of these components. On the IC3600LIVD1A, there are 80 carbon composite resistors. On the other hand, the resistor designations are limited to R1, R2, R3, R4, and R5. Each designator is written on sixteen resistors.

• WOC has the largest stock of Speedtronic Mark I & II Spares and we can repair your faulty IC3600LIVD1A with a warranty.

WORLD OF CONTROLS can also supply UNUSED and REBUILT components backed up with a warranty. Our team of experts is available round the clock to support your critical spare needs, contact us.



FREQUENTLY ASKED QUESTIONS

What is GE Fanuc IC3600LIVD1A?

The IC3600LIVD1A functions as a Logic Inverter Card.

How to Check Price and Availability For IC3600LIVD1A?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

Does the IC3600LIVD1A have a Warranty?

WOC can also supply UNUSED and REBUILT IC3600LIVD1A backed up with a warranty of 24 months.
