Part No.: IC3600LCDA1B
Manufacturer: General Electric
Product Type: Clock Logic Driver Control Card
Series: Mark I or II series
IC3600LCDA1B is a Clock Logic Driver Control Card developed by General Electric. It is a part of Mark I or II series. These were the first Speedtronic gas and steam turbine management systems.
- Both the MKI and MKII were designed to be scalable and easily adaptable to the turbine system under supervision, whether it was a single 4000 HP unit or an entire 400 Mw power station. Each system's turbine control panel can be configured in a variety of ways, either as part of a control room or as a remotely situated control site in a control cab.
- Similarly, the systems' speed control can be configured for isochronous (independent of load, the speed remains constant to a setpoint) or droop (speed declines with load) settings. The GE logo, as well as the digits 006/04 and 68A999101, are stamped on the component. From one to fifty-one, one edge is marked with numbering that skips by fives.

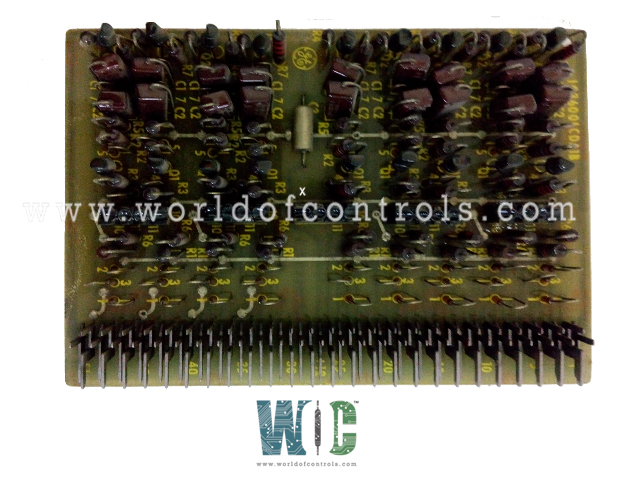

- The board has two lines of transistors. There are nine transistors in each line. The board is just labeled with "Q1" and "Q2," as all components in each line are labeled as one component. A line of eighteen capacitors has a similar marking that alternates between "C1" and "C2" from top to bottom.
- A polyester vinyl capacitor designated "C3" is also located away from this line on the board. There are multiple lines of resistors and capacitors on the board. Not all components have identification labels. The card connects with the Speedtronic system via 51 metal pin connectors affixed to one edge. These pins are communication devices.
The WOC team is always available to help you with your GE turbine control part requirements. For more information, please contact WOC.
Frequently Asked Questions
What is IC3600LCDA1B?
IC3600LCDA1B is a Clock Logic Driver Control Card developed by General Electric.
How to Obtain IC3600LCDA1B?
World of Controls provides IC3600LCDA1B as well as other turbine control products. Contact WOC.
