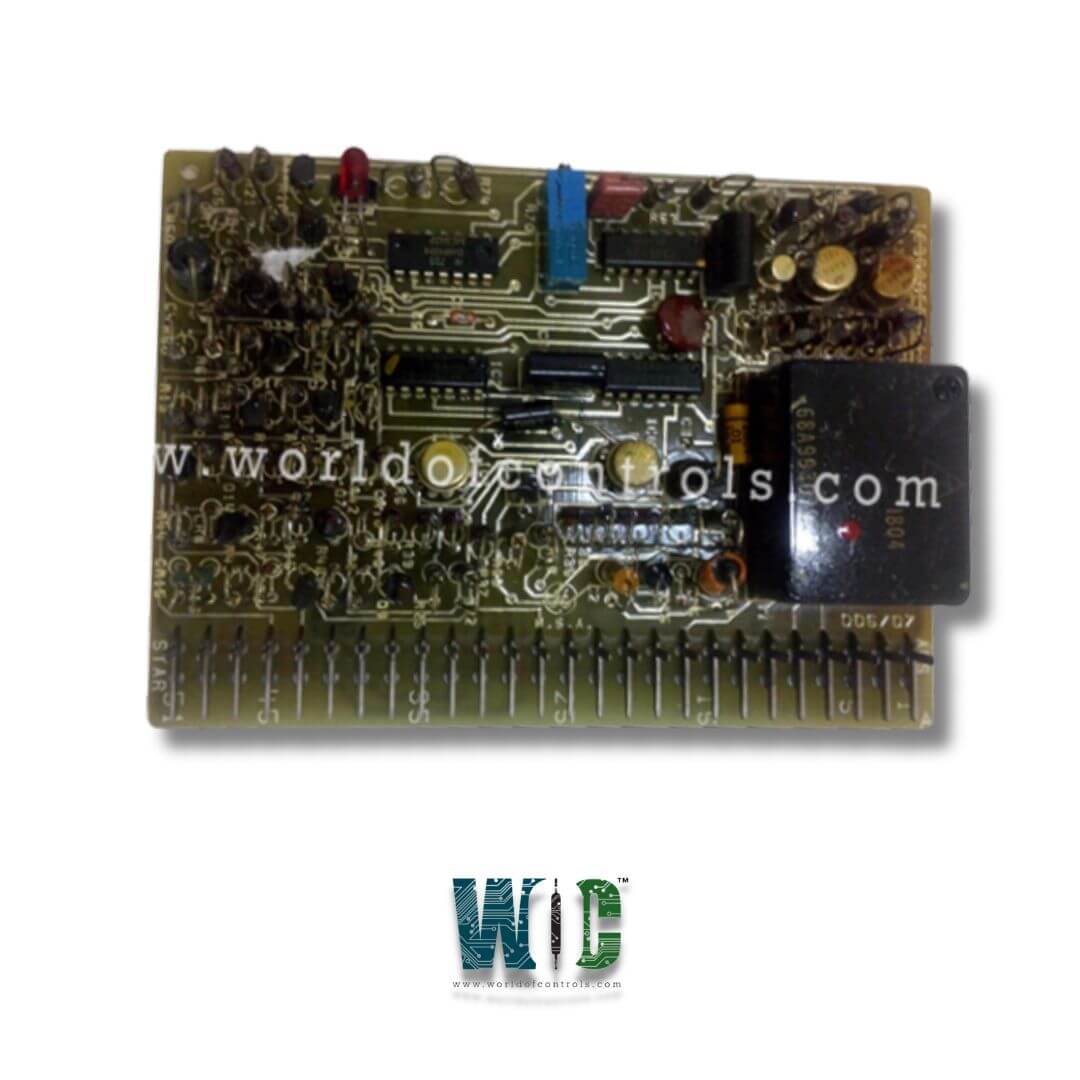

IC3600EPSU1L1B - Power Supply Board

SPECIFICATIONS

Part No.: IC3600EPSU1L1B
Manufacturer: General Electric
Product Type: Power Supply Board
Availability: In Stock
Series: Mark I and II
Country of Manufacture: United States of America (USA)

Functional Description

IC3600EPSU1L1B is a Power Supply Board developed by GE Fanuc. It is a part of GE's Mark I and Mark II Speedtronic control systems. These systems were GE’s pioneering gas turbine control platforms, designed to provide reliable, automated control and protection for turbine operations in power plants and industrial facilities.

Features

• As a DC Power Supply Control Board, it converts and regulates electrical power for other components within the Speedtronic system. It ensures a stable and consistent supply of DC voltage, which is vital for the proper operation of sensitive electronic circuits across the control system. Its robust design allows it to handle varying input loads while delivering regulated output voltages essential for system logic and instrumentation.
• Power supply boards can accept AC (Alternating Current) or DC (Direct Current) input and typically output regulated DC voltage levels suited to sensitive electronics. They may incorporate components such as transformers, rectifiers, voltage regulators, capacitors, fuses, and sometimes LED indicators for monitoring power status.
• Maintains a steady voltage level regardless of input fluctuations or load changes.
• Includes over-voltage, over-current, and short-circuit protection to safeguard connected components.
• Reduces electrical noise and provides clean power to delicate electronics.

The WOC team is always available to help you with your Mark I and II requirements. For more information, please contact WOC.

Frequently Asked Questions

What is IC3600EPSU1L1B?
It is a Power Supply Board developed by GE under Mark I and II series.

What type of input and output does the board support?
The board typically accepts AC input and outputs regulated DC voltages. The exact voltage levels can vary depending on the design and system requirements.

How can one identify whether the board is functioning properly?
Boards may feature LED indicators showing power status or fault conditions. In some systems, control software or diagnostic tools also monitor power board performance.
