DS200TCPSG1ANE - DC INPUT POWER SUPPLY

SPECIFICATIONS

Part No.: DS200TCPSG1ANE
Manufacturer: General Electric
Product Type: DC Input Power Supply
Series: Mark V

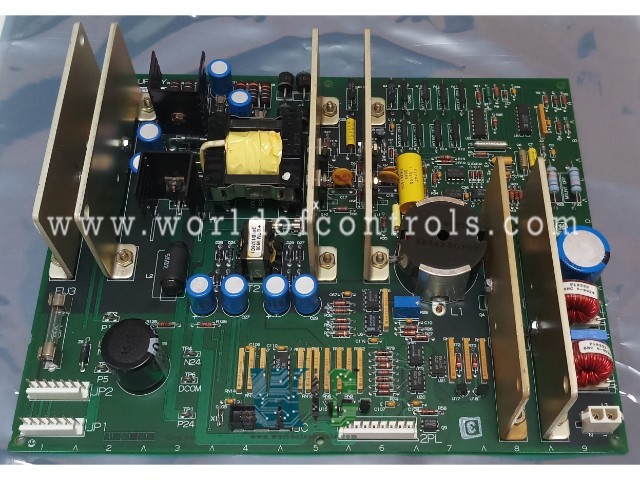

The DS200TCPSG1ANE is a Mark V series DC input power supply board. DS200TCPSG1ANE is a DS200TCPSG1A revision board. The GE Power Supply DC Input Board includes a 16-pin connector, a 9-pin connector, and numerous test points. It comes with three fuses. If the board is not functioning properly, the first step in troubleshooting is to inspect these fuses.

• The fuses keep the board from overheating and shutting down. This keeps the board from getting damaged. Keep a supply of fuses with the same rating on hand in case the fuses blow. They must have the same rating because a different fuse could cause the board to overheat and cause damage.
• The three fuses on the board protect three different circuits on the board from damage caused by an excess of electric power. The power to the drive must be turned off before establishing a replacement fuse. The eligible servicer who performs the replacement must be familiar with the drive and understand how to safely disconnect it from power. Before operating on the board, the drive must be tested to confirm that there is no power present.
• The fuses can be replaced without having to remove the board. Depending on how the board is installed and how accessible the board is.

The most comprehensive selection of GE Speedtronic Mark V control components is available at World of Controls. Our professionals are available to assist you with your Mark V requirements at any time. If you require any additional information, please contact WOC as soon as possible.



Frequently Asked Questions



What is DS200TCPSG1ANE?
DS200TCPSG1ANE is a DC input power supply board under the Mark V series.

How to Obtain DS200TCPSG1ANE?
World of Controls provides DS200TCPSG1ANE as well as other turbine control products. Contact WOC.

Which are the connectors on DS200TCPSG1ANE?
J1, JC, JP1, JP2, 2PL, and X1 are the connectors on the module.
