DS200PTBAG1BBA - TERMINATION BOARD

SPECIFICATIONS

Part No.: DS200PTBAG1BBA
Manufacturer: General Electric
Product Type: Terminal Board
Series: Mark V

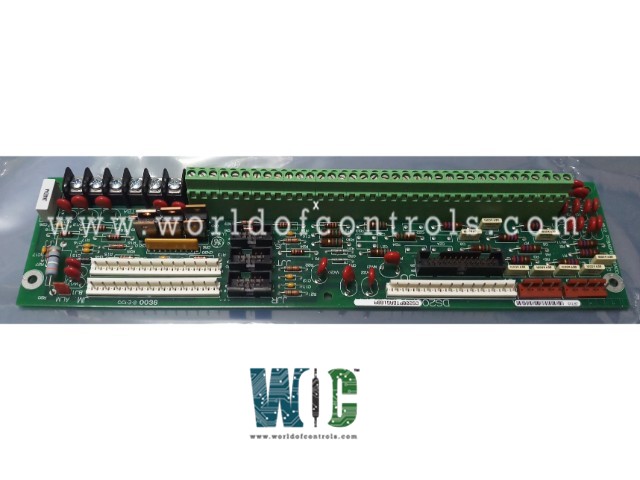

DS200PTBAG1BBA is a terminal board under Mark V series GE. World of Controls possesses replacement components for a variety of Speedtronic turbine control systems, including the Mark V. This method for operating industrial turbine control systems was developed and supplied by General Electric. This termination board has numerous inputs and outputs and a variety of input and output connectors and is longer than it is wide.

• Four vertical pin header connectors are supplied, as well as vertical pin connectors, a six-screw termination board, and a double termination board (green). These screw connections are numbered from one to 79.
• Metal oxide varistors, capacitors, resistors, and jumper switches are present on the board. Each corner of the board has a factory drill hole in it. A conductive substance surrounds two of these holes.
• The board is also labeled with the board ID number, coding to aid in wiring and locating, and codes to aid in connections to other boards in the system. Before the internal and external shipment packing, the board weighs about 1.0 pounds.
• Static-sensitive products are also protected from damage during transit with static-reducing packaging. Overspeed protection and flame detection are commonly provided by the DS200PTBAG1BBA, which serves as a termination board for the independent protective module core.

World of Controls has the most comprehensive selection of GE Speedtronic Mark V control replacement components. At any time, our professionals are accessible to help you with your Mark V requirements. If you want any additional information, please contact WOC.



Frequently Asked Questions



What is DS200PTBAG1BBA?
DS200PTBAG1BBA is a terminal board under Mark V series GE.

What is the function of DS200PTBAG1BBA?
DS200PTBAG1BBA functions as a multi-input and output termination board for Mark V.

How to Obtain DS200PTBAG1BBA?
WOC provides DS200PTBAG1BBA as well as other turbine control products. Contact World of Controls.
