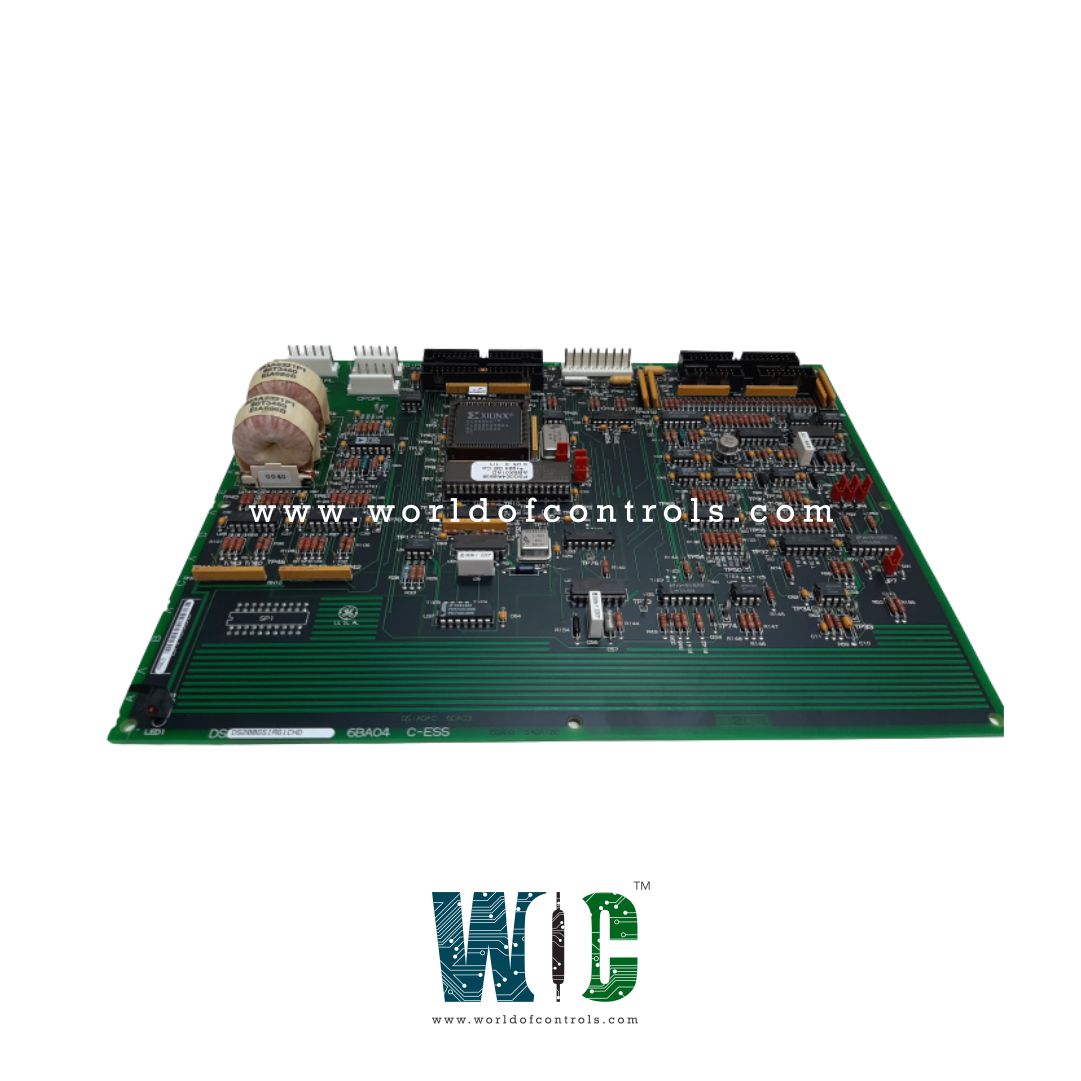

DS200GSIAG1CHD - Bus Regenerative Board

SPECIFICATIONS

Part Number: DS200GSIAG1CHD
Manufacturer: General Electric
Series: Drive Control
Ambient temperature: 0 to 45 oC
Relative humidity: 5 to 95 percent
Altitude: 2000 m maximum
Product Type: Bus Regenerative Board
Temperature: 0 to 60oC
Availability: In Stock
Country of Manufacturer: United States (USA)

Functional Description

DS200GSIAG1CHD is a Bus Regenerative Board developed by General Electric. It is a part of Drive Control series. The system employs a significant number of complementary metal-oxide-semiconductor (CMOS) and very large-scale integration (VLSI) chips meticulously selected to optimize power efficiency and maximize functionality. It prioritizes power efficiency, aiming to minimize power dissipation while maximizing functionality. Through the strategic selection of CMOS and VLSI chips, the system achieves superior performance while consuming less power compared to previous generations, ensuring energy savings without compromising functionality.

System Features

• Environmental Considerations: Optimal system performance is contingent upon environmental conditions. For instance, ambient air at the panel inlet vents should ideally range between 32oF and 72oF (0oC and 40oC) with humidity levels between 5 percent and 95 percent, non-condensing. These conditions are conducive to maintaining the integrity and reliability of system components.
• Standard Panel Specifications: The standard panel configuration adheres to NEMA 1A standards, featuring dimensions of 90 inches in height, 54 inches in width, and 20 inches in depth. With a weight of approximately 1,200 pounds, this panel configuration is robust and sturdy, ensuring durability and stability in diverse operating environments. Refer to Figure 11 for a visual representation of the panel with doors closed.
• Power Requirements: For gas turbines, the standard panel operates on 125-volt DC unit battery power, supplemented by AC auxiliary input at 120 volts and 50/60 Hz. The auxiliary power is utilized for critical components such as the ignition transformer and the I processor. A typical standard panel necessitates 900 watts of DC power and 300 watts of auxiliary AC power to operate efficiently.
• Alternative Auxiliary Power Options: Alternatively, the auxiliary power source can be configured to utilize 240-volt AC at 50 Hz. Additionally, an optional black start inverter can supply power from the battery, offering enhanced flexibility and redundancy in power supply configurations.

WOC has the largest stock of Speedtronic control spares. Please contact our staff by phone or email for pricing and availability on any parts and repairs

FREQUENTLY ASKED QUESTIONS

What is DS200GSIAG1CHD?
It is a Bus Regenerative Board developed by General Electrics.

What are the dimensions and weight of the standard panel configuration?
The standard panel adheres to NEMA 1A standards and measures 90 inches in height, 54 inches in width, and 20 inches in depth, with a weight of approximately 1,200 pounds, ensuring robustness and stability in various operating environments.

What are the power requirements for the standard panel?
The standard panel operates on 125-volt DC unit battery power and requires auxiliary AC input at 120 volts and 50/60 Hz. A typical standard panel consumes 900 watts of DC power and 300 watts of auxiliary AC power for efficient operation.

Can alternative auxiliary power options be utilized with the system?
Yes, the auxiliary power source can alternatively be configured to utilize 240-volt AC at 50 Hz. Additionally, an optional black start inverter can supply power from the battery, offering enhanced flexibility and redundancy in power supply configurations.
