SPECIFICATIONS
Part No.: 7014PB
Manufacturer: TE Connectivity
Termination Style: Screw
Relay Contact Form: 4 Form C (4PDT-NO, NC)
Operating Supply Voltage: 125 VDC
Contact Rating: 10 A at 240 VAC
Contact Form: 4PDT (4 Form C)
Country of Manufacture: United States of America (USA)
Product Type: Time Delay Relay
Availability: In Stock
Subcategory: Relays
Category: Time Delay & Timing Relays
Series: Agastat
Functional Description

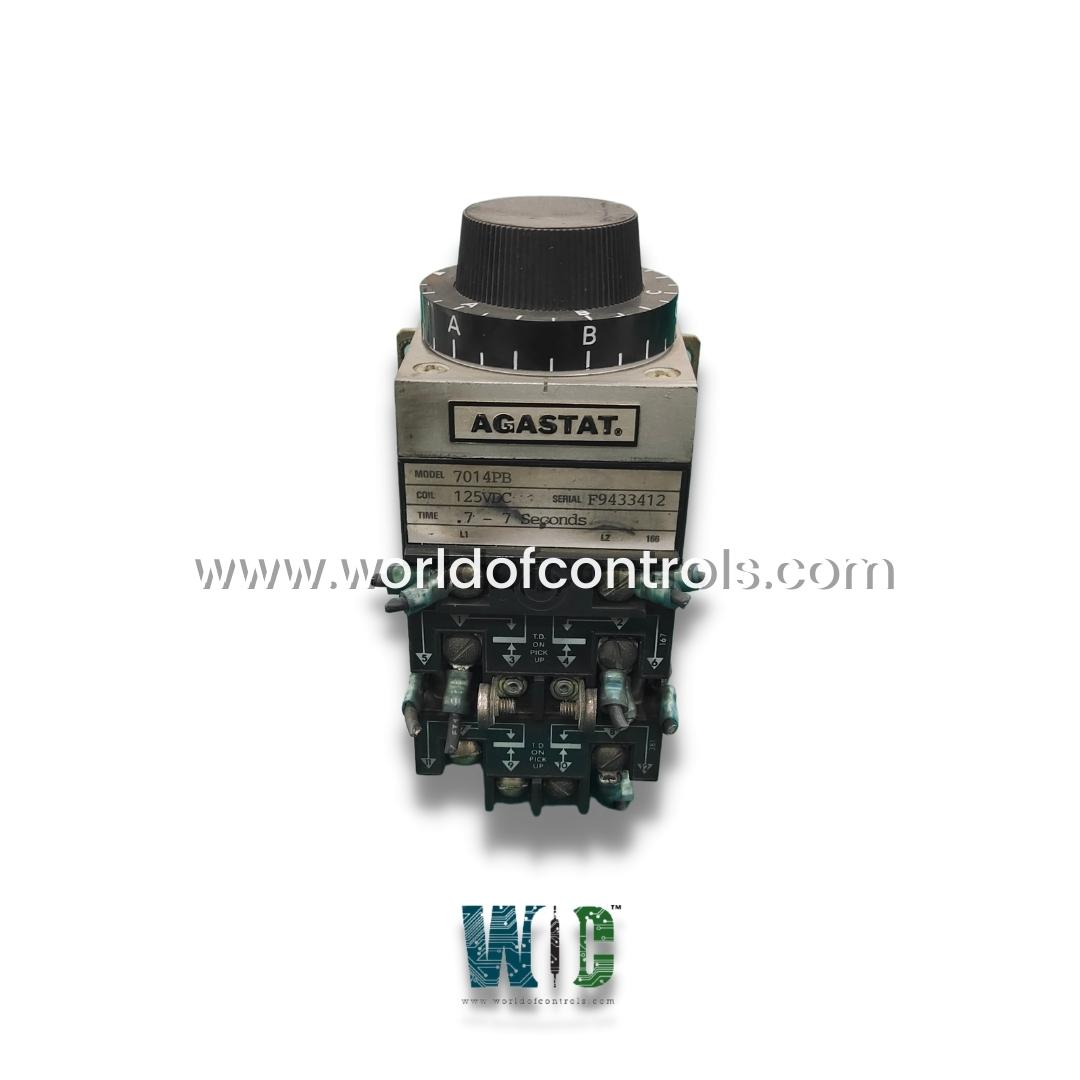

7014PB is a Time Delay Relay developed by TE Connectivity. It is designed to balance pneumatic, electrical, and mechanical forces while utilizing a minimal number of moving parts. This time delay relay is built to provide accurate timing and control to manage timing sequences effectively.
Product Highlights
- Series: 7000 Electropneumatic Timing - Industrial Series
- Input Voltage: 125 VDC
- Contact Arrangement: 4 Form C, 4PDT, 4 C/O
- Contact Rating: 10A at 240 VAC
- Mounting Options: Panel Mount
Product Features
- Series Information: The 7000 Electropneumatic Timing - Industrial Series of relays are designed to meet industrial needs for precision timing and reliable operation in tough environments. The relay is an example of this series, offering robust timing functions and durability.
- Input Voltage (VDC): The relay operates at a voltage of 125 VDC, ensuring compatibility with various industrial control systems.
- Contact Rating: The relay supports a contact rating of 10A @ 240 VAC, making it suitable for controlling larger loads in industrial settings.
- Dimensions: The approximate dimensions (L x W x H) of the unit are 114.80 x 65.30 x 71.90 mm (4.523 x 2.572 x 2.832 in), compact and easily adaptable for standard panel mounts.
- Delay Time: The time delay can be set from 0.7 seconds to 7 seconds, offering flexibility for various applications where timing control is essential.
- Type of Control: The time delay is adjusted using a knob, providing easy manual configuration.
- Repeatability: The relay offers 10 percent repeatability, ensuring consistent performance across multiple cycles.
- Contact Arrangement: The relay has a 4 Form C (4PDT, 4 C/O) contact arrangement, providing multiple outputs for complex control functions.
- Multiple Timing Ranges: The relay does not support multiple timing ranges but offers flexibility within the specified delay time range.
- Industry Standards: It is CE Approved, CSA Certified, FM Approved, and UL Listed, indicating that it meets stringent safety and performance standards for industrial and commercial applications. The relay is not ELV/RoHS compliant and is not intended for lead-free processes.
- Operating Temperature: The relay operates in a temperature range of -30°C to +75°C, making it suitable for various environmental conditions.
- Mode of Operation: The relay operates in the On-Delay mode, where the output is delayed for a specific period before activating, providing control over sequencing or timing-sensitive processes.
Mounting Instructions
- Normal Mounting: The 701PB relay is typically mounted in a vertical position from the back of the panel. Four No. 8–32 tapped holes are provided in the back plate for easy installation.
- Mounting Screws: The mounting screws should not project more than 3.63 mm (5/32 in.) into the back of the unit to prevent potential damage to internal components.
- Front Mounting Option: A bracket and required screws are supplied with each unit for front mounting, with the bracket extending approximately 9.52 mm (3/8 in.) from each side of the unit.
- Horizontal Operation: Horizontal mounting is not recommended for optimal performance and longevity of the relay.
The WOC team is always available to help you with your gas turbine control system replacement parts requirements. For more information, please contact WOC.
Frequently Asked Questions
What is 7014PB?
It is a Time Delay Relay developed by TE Connectivity.
What is the input voltage for the relay?
The Time Delay Relay operates with an input voltage of 125 VDC, making it suitable for systems that use DC power.
What is the delay time range?
The relay offers a delay time range of 0.7 seconds to 7 seconds, which can be adjusted via a knob to set the required timing for specific applications.
What is the component mounted?
The component is designed for panel mounting. It can be mounted in a vertical position from the back of the panel using No. 8–32 tapped holes. A bracket and screws for front mounting are also provided with the unit.
Can the relay operate in horizontal positions?
No, horizontal operation is not recommended. The relay is optimized for vertical mounting to ensure optimal performance and prevent potential internal damage.
What are the key contact arrangements?
The relay comes with a 4 Form C, 4PDT and 4 C/O contact arrangement, offering multiple outputs for complex control functions and flexibility.
What certifications does the relay have?
The Time Delay Relay is CE Approved, CSA Certified, FM Approved, and UL Listed, ensuring compliance with strict safety and performance standards.
