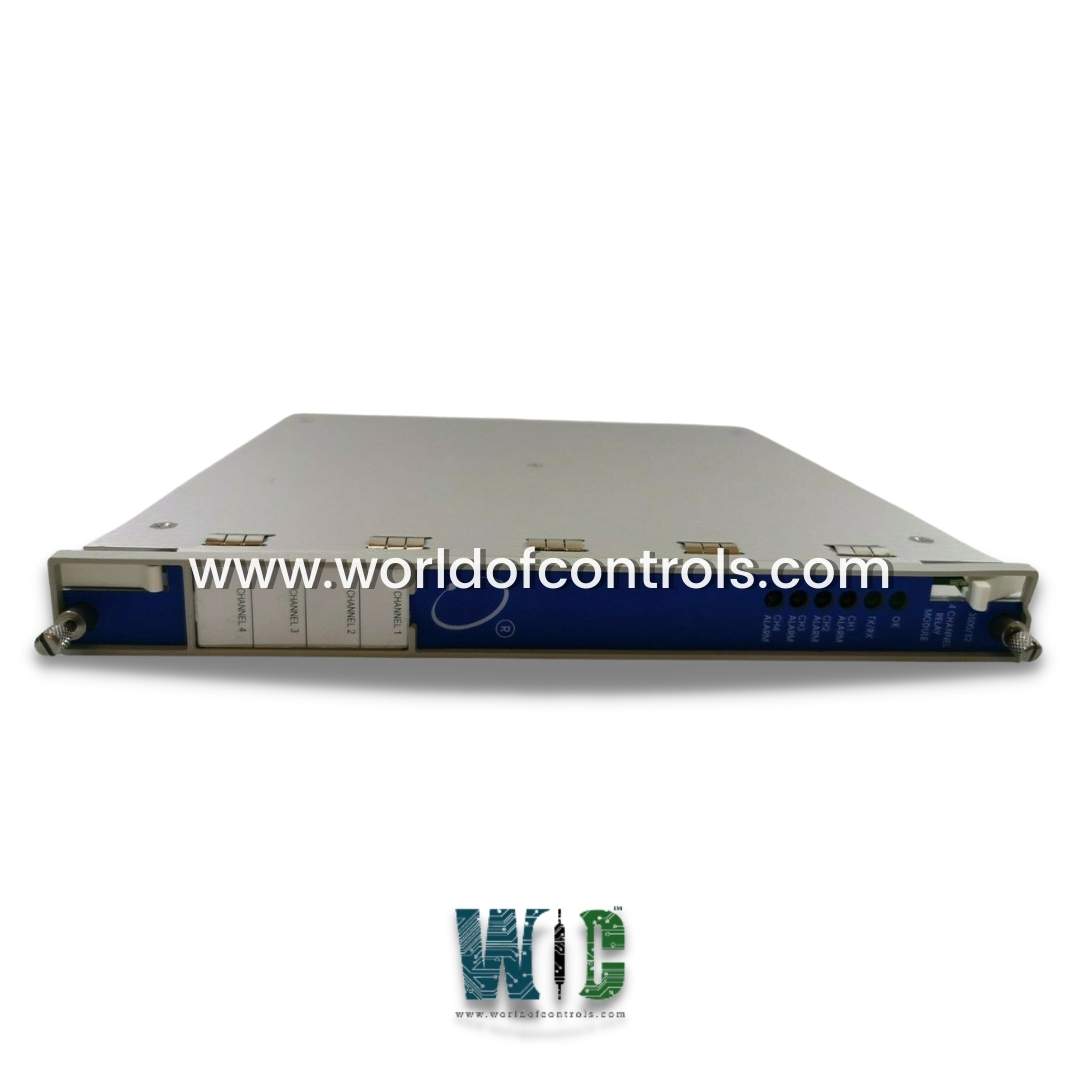

3500/32-PWA125712-01 - Channel Relay Module

SPECIFICATIONS

Part Number: 3500/32-PWA125712-01
Manufacturer: Bently Nevada
Series: BN 3300
Availability: In Stock
Power Consumption: 5.8 watts
Country of Manufacture: United States (USA)

3500/32-PWA125712-01 is a Channel Relay Module manufactured by Bently Nevada. The 4-Channel Relay Module is a full-height module with four relay outputs. Any number of 4-Channel Relay Modules can be installed in any of the slots to the right of the Rack Interface Module. Each output of the 4-Channel Relay Module can be separately configured to fulfill required voting logic.

Environmental Characteristics

• Operating Temperature: -30 degrees Celsius to +65 degrees Celsius
• Storage Temperature: -40 degrees Celsius to +85 degrees Celsius
• Humidity: 95%, non-condensing.

3500/32-PWA125712-01 Outputs

• OK LED: Turns on when the module is working properly.
• TX/RX LED indicates transmit and receive. This module flashes to signal that it is communicating properly with the other modules in the rack.
• When the Relay Channel is in an alarm condition, the CH ALARM LED illuminates.
• Relay Type: A double-pole, double-throw (DPDT) arrangement of two single-pole, double-throw (SPDT) relays.

World of Controls has the most comprehensive catalog of Bently Nevada Replacement parts. Our professionals are standing by to help you with your needs. If you require any additional information, please contact WOC.

FREQUENTLY ASKED QUESTIONS



What is 3500/32-PWA125712-01?
It is a Channel Relay Module manufactured by Bently Nevada.

How Can I Check Channel Relay Module Prices and Availability?
Contact World of Controls at +1 609 385 1231 or request a quote.

What is the operating temperature of the module?
The operating temperature ranges from -30 degrees Celsius to +65 degrees Celsius

What is the Storage temperature of the module?
The Storage temperature ranges from -40 degrees Celsius to +85 degrees Celsius

What does TX/RX LED indicate?
TX/RX LED indicates transmit and receive signal.
