330930-060-00-02 - NSv Extension Cable

Specifications

Part Number: 330930-060-00-02
Manufacturer: Bently Nevada
Country of Manufacture: United States (USA)
Product Type: Extension Cable
Series: Bentley Nevada 3300
Operating Temperature: -51 oC to +177 oC
Availability: In Stock

Functional Description

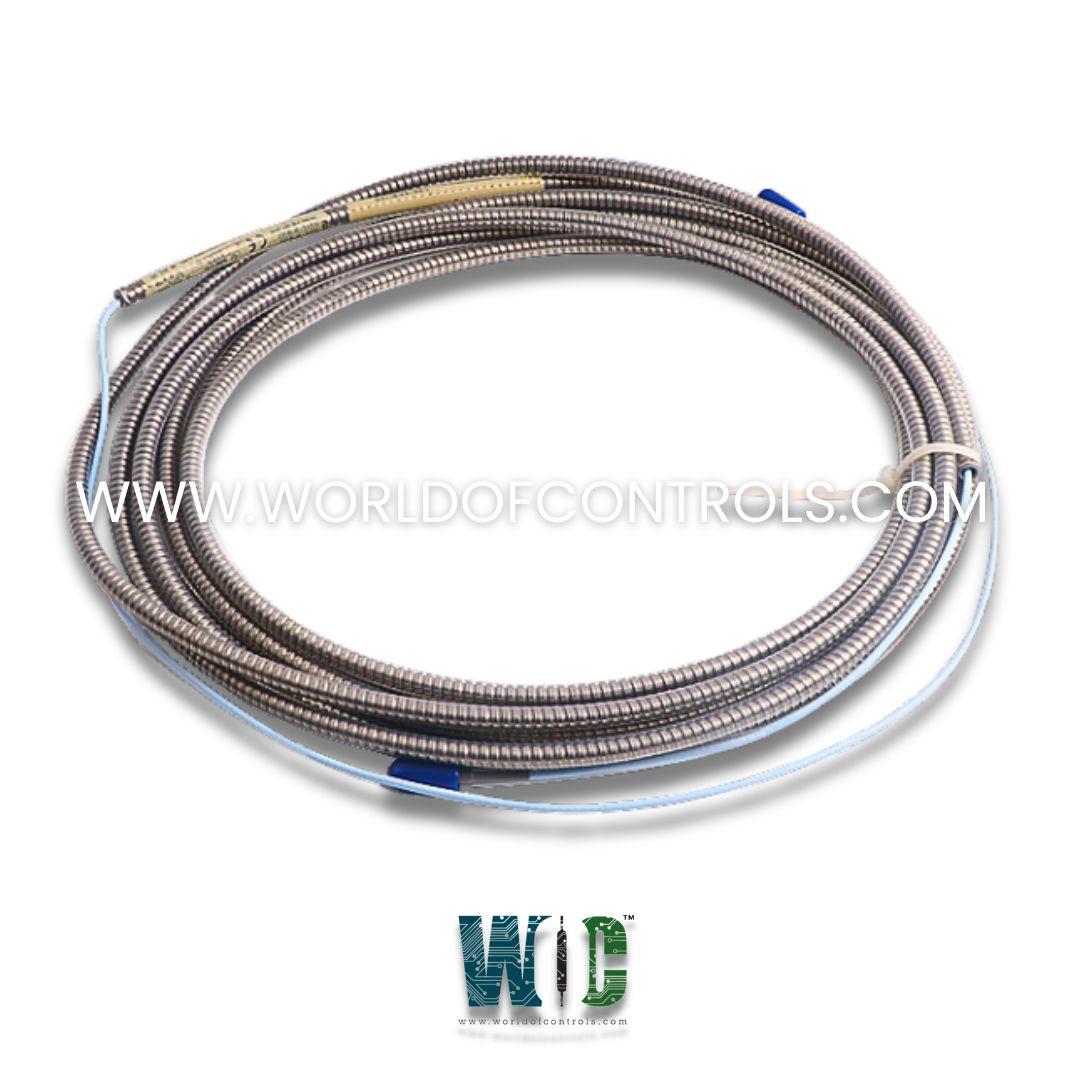

330930-060-00-02 is an NSv Extension Cable developed by Bently Nevada. It is a part of the 3300 XL NSv Transducer System. This system is specifically engineered for small targets and restricted installation spaces where traditional proximity systems may not perform reliably. This extension cable provides a vital connection between the proximity probe and the NSv Proximitor Sensor, ensuring accurate vibration and position monitoring in critical rotating machinery.

Features

• Part of System: Compatible with the 3300 XL NSv Transducer System. Designed to replace older Bently Nevada systems, including the 3300 RAM, 3000-series, and 7000-series 190 Transducer Systems.
• Cable Length: 6.0 meters (19.7 feet) total system length, ideal for mid-range installations in compact machinery environments.
• Connector Type: Standard ClickLoc coaxial connectors without stainless steel armor. These provide secure, vibration-resistant connections while maintaining ease of installation and maintenance.
• Cable Design: Supplied without stainless steel armor, making it ideal for enclosed or controlled environments where mechanical cable protection is not necessary.

Electrical Characteristics

• DC Resistance:
  • Center Conductor: 0.220 ohm/m (0.067 ohm/ft)
  • Shield: 0.066 ohm/m (0.020 ohm/ft)
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical

These characteristics ensure high signal integrity and consistent performance over the cable length.

Product Attributes

• Enables upgrades from older systems (3300 RAM, 190 series) using existing infrastructure, reducing downtime and cost.
• Ideal for limited-space applications where traditional proximity transducers are too large.
• High precision in measuring shaft vibration and position for small machines and low-clearance applications.

World of Controls is available 24/7 to assist you with Bently Nevada needs. Contact us.

Frequently Asked Questions

What is Bently Nevada 330930-060-00-02?
It is an NSv Extension Cable developed by Bently Nevada under 3300 series.

What is the length of the cable?
The total length of this extension cable is 6.0 meters (19.7 feet), making it suitable for moderate-distance installations.

Does this cable include stainless steel armor?
No, this model comes without stainless steel armor, which is suitable for environments where physical protection of the cable is not necessary.
