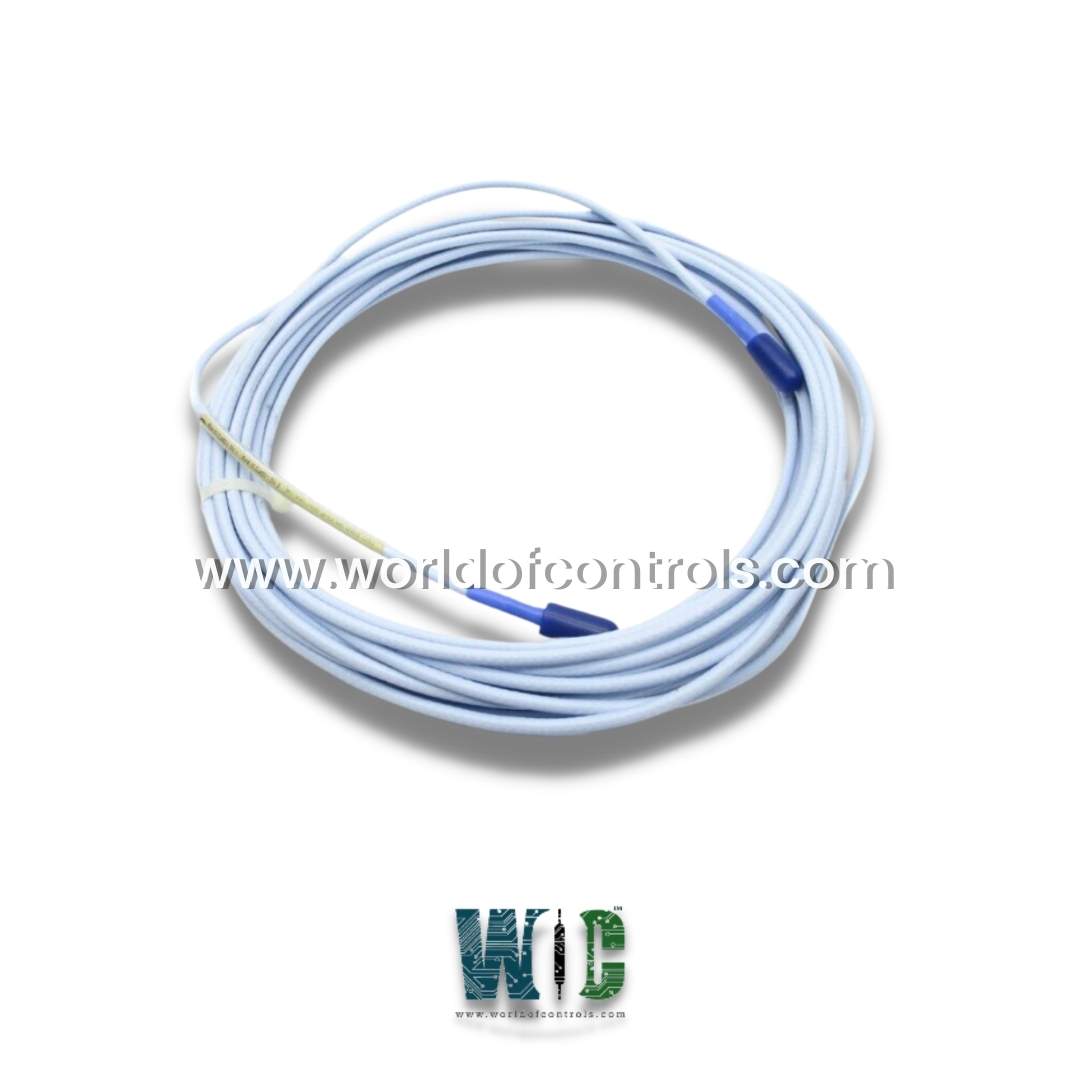

330130-085-00-05 - Extension Cables

Specifications

Part Number: 330130-085-00-05
Manufacturer: Bently Nevada
Country of Manufacture: United States (USA)
Product Type: Extension Cable
Series: Bentley Nevada 3300
Operating Temperature: -51 oC to +177 oC
Availability: In Stock

Functional Description

330130-085-00-05 is an Extension Cable developed by Bently Nevada. It is a 3300 XL Standard Extension Cable and a part of the Bently Nevada 3300 series. As part of the 3300 XL Series, this extension cable is specifically engineered to connect proximity probes to their associated Proximitor Sensors in critical industrial applications, ensuring reliable and accurate vibration and position monitoring.

Product Attributes

• Cable Type: Standard Extension Cable
• Cable Length: 8.5 meters (27.9 feet)
• Connector Type: Standard coaxial connector with ClickLoc locking mechanism for secure, vibration-resistant connections.
• Cable Insulation: 75-ohm triaxial cable, insulated with fluoroethylene propylene (FEP) for enhanced durability and thermal performance.

Extended Temperature Range (ETR) Compatibility

• ETR Probe Temperature Rating: Up to 218°C (425°F)
• ETR Extension Cable Temperature Rating: Up to 260°C (500°F)
• Fully compatible with the standard 3300 XL Proximitor Sensor
• Can be used in systems where either the probe or the cable may exceed the standard 177°C (350°F) temperature specification.

When any ETR component is used in a system, the system accuracy will be limited to the accuracy specifications of the ETR system. It’s crucial for engineers and technicians to factor this into performance expectations.

Agency Certifications

• CSA (Canada Standards Association)
• ATEX (Atmosphères Explosibles – EU directive for equipment in explosive atmospheres)
• IECEx (International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres)

World of Controls is available 24/7 to assist you with Bently Nevada needs. Contact us.

Frequently Asked Questions

What is Bently Nevada 330130-085-00-05?
It is an Extension Cable developed by Bently Nevada under 3300 series.

What is the length of the cable?
The cable is 8.5 meters (27.9 feet) long.

Is this cable compatible with high-temperature environments?
Yes. It can be used with Extended Temperature Range (ETR) components. The cable itself can handle up to 260oC, making it suitable for harsh industrial environments.

Can I mix standard and ETR components in my setup?
Yes, you can combine ETR probes with standard 330130 extension cables and vice versa. However, be aware that the overall system accuracy will be limited by the least accurate component, typically the ETR component.
