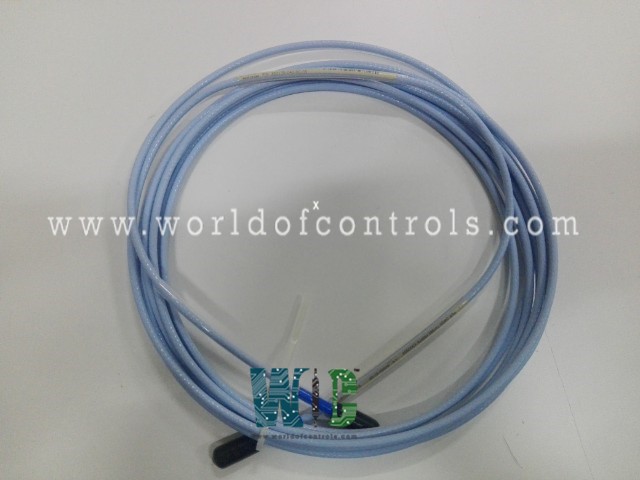

330130-040-00-05 - Standard Extension Cable

330130-040-00-05 - Standard Extension Cable 330130-040-00-05 - Standard Extension Cable

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

330130-040-00-05 - Standard Extension Cable is available in stock which ships the same day.

330130-040-00-05 - Standard Extension Cable comes in UNUSED as well as REBUILT condition.

To avail our best deals for 330130-040-00-05 - Standard Extension Cable, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: 330130-040-00-05
Manufacturer: Bently Nevada
Product Type: 3300 XL 8 mm Extension Cable
Availability: In Stock
Country of Origin: USA
Product Family: 3300 XL, 3300XL, 3300-XL

330130-040-00-05 is a 3300 XL Standard Extension Cable manufactured by Bently Nevada and used in proximity transducer system. Proximity Sensors come from the factory with a standard calibration to AISI 4140 steel. It is possible to calibrate on-demand to additional target materials. You might consult Bently Nevada Applications. Note the factors to take into account when using eddy current proximity probes for Overspeed protection applications when assessing this transducer system for tachometer or Overspeed measurements.

330130-040-00-05 Features

Physically and technologically, the non-XL 3300 5 and 8 mm components can be swapped out for the 3300 XL 8 mm components. Even if the packaging of the 3300 XL Proximitor Sensor differs from that of its predecessor, it is still designed to fit in the same 4-hole mounting pattern when used with the same mounting base's 4-hole mounting pattern and will adhere to the same mounting space requirements.

  • System performance is restricted to the non-XL 3300 5 and 8 mm Transducer System standards when XL and non-XL 3300 series 5 and 8 mm system components are combined.
  • The 3300-series 5 mm probe (see Specifications and Ordering Information p/n 141605-01) has a smaller physical footprint than an 8 mm probe, but it cannot be used with reduced side view clearances or tip-to-tip spacing.
  • When the use of an 8 mm probe is prohibited by physical—not electrical—constraints, this method is used. Use the 3300 NSvTM Proximity Transducer System when narrow side view probes are needed.
  • A thicker encapsulation of the probe coil in the molded PPS plastic probe tip is offered by 8 mm probes. As a result, the probe becomes more robust.
  • The probe body's increased diameter also offers a stronger, more durable casing. For the best robustness against physical abuse, Bently Nevada advises using 8 mm probes wherever it is practical.

Applications

  • Ideal for Fluid-Film Bearing Machines, Speed Measurements, and Compression Systems
  • Applications over Extended Temperature Range
  • Complete Unit and Cabling Interchangeability
  • Components of the Non-3300 XL Series Transducer System Are Backwards Compatible

330130-040-00-05 Configuration

  • Cable Length: 4.0 m (13.1 ft)
  • Connector Protector and Cable Option: Standard Cable
  • Agency Approval Option: Multiple Approvals

Characteristics

  • Cable length option : 040 = 4.0 metres (13.1 feet)
  • Weight : 0.034 g/m x 8.5 = 0.289Kg

World of Controls has the most comprehensive catalog of Bently Nevada Replacement parts. Our professionals are standing by to help you with your needs. If you require any additional information, please contact WOC.



FREQUENTLY ASKED QUESTIONS



What is Bently Nevada 330130-040-00-05?

330130-040-00-05 is a 3300 XL Standard Extension Cable used in Proximity Transducer System.

Are the Products Genuine OEM Units?

These items have been certified by WOC Quality Control to be genuine OEM Units obtained through OEM or independent third-party channels.

Does WOC sell to international Non-USA customers?

Yes, WOC offers services to clients around the globe. In fact, a large portion of our company is international, and we have experience shipping to locations all over the world.
