12PJC11A4 - Electromagnetic Relay

12PJC11A4 - Electromagnetic Relay 12PJC11A4 - Electromagnetic Relay

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

12PJC11A4 - Electromagnetic Relay is available in stock which ships the same day.

12PJC11A4 - Electromagnetic Relay comes in UNUSED as well as REBUILT condition.

To avail our best deals for 12PJC11A4 - Electromagnetic Relay, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part No.: 12PJC11A4
Manufacturer: General Electric
Operating temperature: 0°C to 40°C
Country of Manufacture: United States of America (USA)
Product Type: Unmanaged Electromagnetic Relay
Availability: In Stock

Functional Description

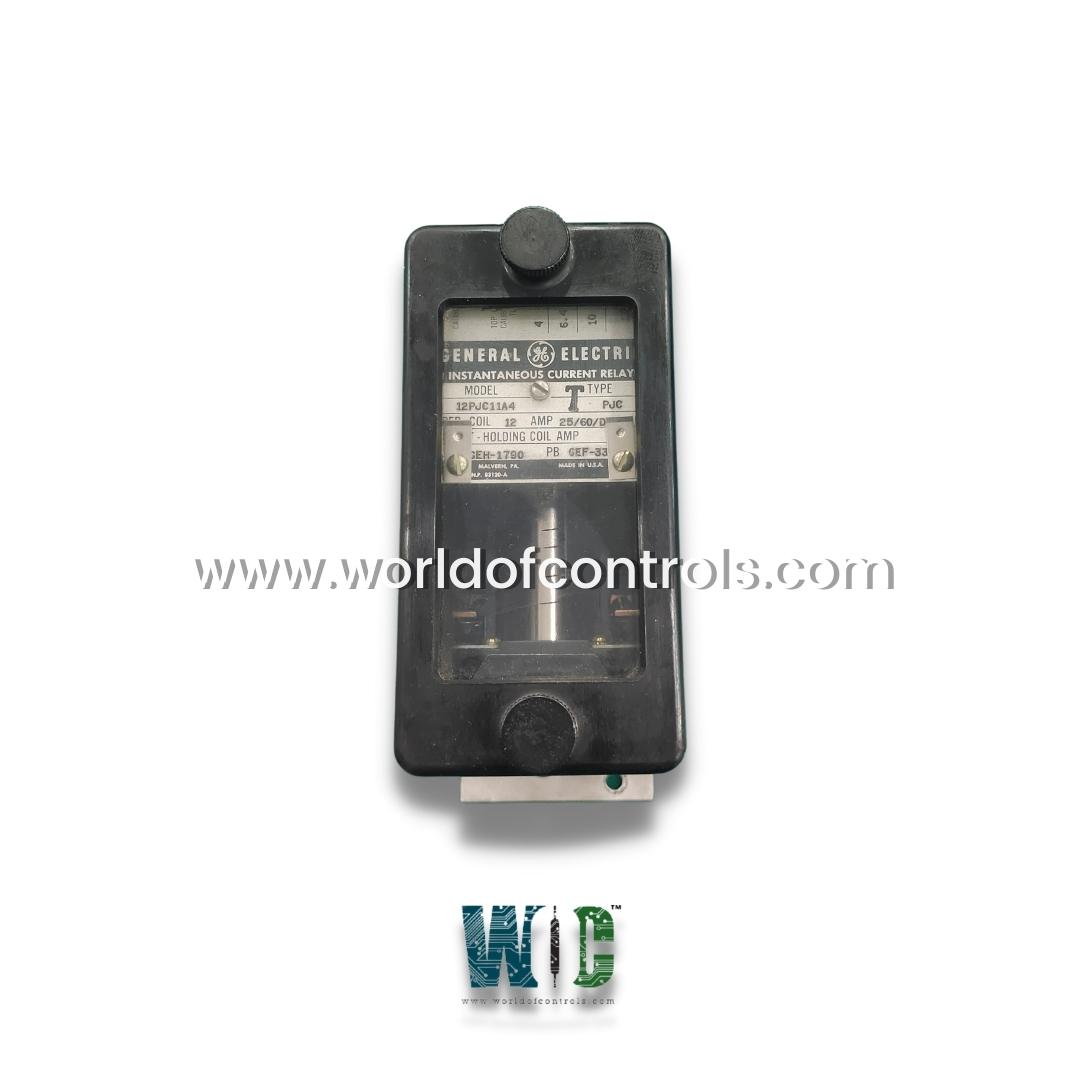

12PJC11A4 is a Electromagnetic Relay developed by General Electric. It is an instantaneous current relay, meaning it is designed to react rapidly to changes in current, making it ideal for applications that require fast response times for circuit protection or control.

Features

  • Instantaneous Current Relay: It is classified as an instantaneous current relay, which means it is designed to operate instantly when it detects a change in the current passing through the circuit. This makes it suitable for protecting systems from sudden surges in current, such as those caused by short circuits or other transient events. It reacts in real-time to ensure rapid disconnect or control of the circuit, preventing potential damage to connected equipment.
  • Overall Length: The relay has a nominal overall length of 5.438 inches, which provides a compact yet efficient form factor for integration into electrical panels, control systems, or other machinery. Its size allows it to fit into systems with limited space while offering strong performance and reliability.
  • Mounting Facility Type and Quantity: The relay is designed with two threaded holes for single mounting, ensuring secure and stable attachment within control panels or relay boards. The threaded mounting holes make installation easy and allow the relay to be firmly placed in a variety of configurations, contributing to its versatility in different system setups.
  • Duty Type: The relay operates with an intermittent duty type. This means it is designed to perform periodic on/off switching, making it well-suited for applications where continuous operation is unnecessary. It is particularly effective in systems where the relay is expected to switch loads or react to changes in current at specific intervals, ensuring reliability and efficiency in handling electrical surges or faults.

Benefits

  • As an instantaneous current relay, offers quick detection and reaction times, making it ideal for protecting sensitive systems from electrical surges or faults.
  • The relay's compact dimensions make it suitable for installations with limited space while maintaining a high level of performance and reliability.
  • The two threaded mounting holes ensure secure and straightforward installation in panels or control systems, providing flexibility for various mounting configurations.
  • Designed for intermittent use, the relay is built to withstand on/off cycles, offering long-lasting performance and dependable operation in demanding environments.

The WOC team is always available to help you with your gas turbine control system replacement parts requirements. For more information, please contact WOC.

Frequently Asked Questions

What is 12PJC11A4?
It is a Electromagnetic Relay developed by General Electric.

What are the relay’s dimensions?
The relay has a nominal overall length of 5.438 inches, making it compact and suitable for installations where space is limited but where high performance and reliability are still required.

How does the relay function?
The relay operates using electromagnetic principles. When current flows through the coil, it generates a magnetic field that moves an armature, opening or closing contacts to control the flow of electricity. This process occurs instantly, providing rapid protection and control.

Is the module easy to install?
Yes, installation is simple due to the two threaded mounting holes that allow for secure attachment in panels or machinery. It requires minimal setup and can be installed quickly in most environments.
