125800-01 - Keyphasor I/O Module

125800-01 -  Keyphasor I/O Module 125800-01 -  Keyphasor I/O Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

125800-01 - Keyphasor I/O Module is available in stock which ships the same day.

125800-01 - Keyphasor I/O Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for 125800-01 - Keyphasor I/O Module, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: 125800-01
Manufacturer: Bently Nevada
Series: 3500
Product Type: Keyphasor I/O Module (Internal Terminations)
Availability: In Stock
Country of Manufacture: United States(USA)

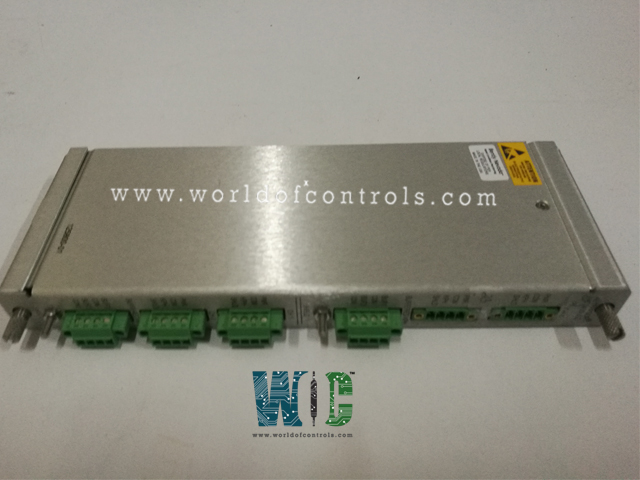

125800-01 is a Keyphasor I/O Module developed by Bently Nevada. It is a part of the 3500/25 Enhanced Keyphasor Module. The monitor modules in a 3500 rack receive Keyphasor signals from a half-height, a two-channel module called a Keyphasor Module. When the Keyphasor mark on the shaft aligns with the Keyphasor transducer, the module detects the alignment using magnetic pickups or proximity probes and converts the input signals into digital Keyphasor signals. For regular setup, the 3500 Machinery Protection System can accept up to four Keyphasor signals, and for paired configuration, it can accept up to eight.

125800-01 Functional Description

  • A key phasor signal, which is produced by a rotating shaft or gear once per turn or several times per turn, can be used to precisely identify timing. As a result, shaft rotative speed and vector characteristics such as 1X vibration amplitude and phase can be measured by 3500 monitor modules and external diagnostic tools.
  • The Enhanced Keyphasor Module is an enhanced 3500 system module. It improves on the previous design's Keyphasor signal processing capabilities while maintaining total downward compatibility in terms of shape, fit, and function with current Keyphasor modules for usage in older systems.
  • The Keyphasor module, PWA 125792-01, has been totally replaced with the more current 149369-01 module. When a system Keyphasor input is required for Triple Modular Redundant (TMR) applications, the 3500 system should use two Keyphasor modules. In this design, the modules function simultaneously to deliver both a primary and secondary Keyphasor signal to the other modules in the rack.

125800-01 Features

  • A system with more than four Keyphasor inputs may use a paired arrangement as long as there are no more than four major Keyphasor input signals. A paired design necessitates two consecutive monitoring stations in either the upper/lower or both half-slot locations.
  • Four Keyphasor modules will accept four primary and four backup input channels and provide four output channels (one per module). A configuration of two paired and one non-paired Keyphasor module (three Keyphasor modules total) is also possible. In such a case, the user can configure the single non-paired Keyphasor (order either two 2-channel or one 1-channel and one 2-channel option)

Characteristics

  • Dimensions:24.2 cm x 11.2 cm x 2.5 cm
  • Weight:0.38 KG
  • Operating Temperature: 0 degrees Celsius to +65 degrees Celsius
  • Storage Temperature: -40 degrees Celsius to +85 degrees Celsius
  • Humidity: 95%, non-condensing.

WOC has the largest stock of Bently Nevada and we can repair your faulty spares with a warranty, contact us.



FREQUENTLY ASKED QUESTIONS



What is Bently Nevada 125800-01?
125800-01 is a Keyphasor I/O Module developed by Bently Nevada.

What are the dimensions of the component?
The component is 24.2 cm in height, 11.2 cm in width, and 2.5 cm in depth.

How much does the component weigh?
The component weighs around 0.38 kilograms.

What is the operating temperature of the component?
Operating Temperature ranges from 0 degrees Celsius to +65 degrees Celsius

What is the Storage temperature of the component?
Operating Temperature ranges from -40 degrees Celsius to +85 degrees Celsius

How to Check Price and Availability For 125800-01?
Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.
