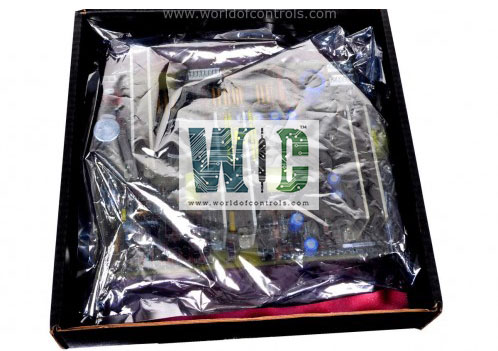

IS215UCVCH3A - UCV Controller

SPECIFICATIONS:

Part Number: IS215UCVCH3A
Manufacturer: General Electric
Series: Innovation Series
Product Type: Double-Slot Controller Board
Number of Channels: 24
Memory: RAM (DRAM): 16 MB - 32 MB
Ethernet ports: 10BaseT/100BaseTX
Operating temperature: -30 to 65°C
Power requirements: +5 V dc, 6.08 A
Size: 17.8 cm wide x 33.02 cm
Repair: 3-7 Day
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States
Manual: GEI-100603A

FUNCTIONAL DESCRIPTION:

IS215UCVCH3A is a Double-Slot Controller Board manufactured and designed by General Electric as part of the Mark VIe Series used in GE Innovation Series Control Systems. The standard UCVCH3 controller is a double-slot board using a 133 MHz Intel Pentium processor with 8 MB of flash memory and 16 MB of DRAM. A single 10Base-2 (BNC connector) Ethernet port provides connectivity to the toolbox or other devices via EGD. The UCVC contains a double column of eight status LEDs. These LEDs are sequentially turned on in a rotating pattern when the controller is operating normally. When an error condition occurs the LEDs display a flashing error code that identifies the problem. The UCVC offers sufficient processing power for real-time control tasks in complex gas turbine systems.

FEATURES:

• Modular Integration: Easily fits into the modular architecture of the Innovation Series, allowing for seamless upgrades and custom configurations.
• Dual Independent Voltage Channels: Provides independent control of voltage across two slots, making it suitable for multi-channel applications.
• High Precision Control: Delivers precise voltage regulation, essential for applications requiring strict voltage management.
• Advanced Monitoring and Feedback: Equipped with sensors and digital displays for real-time monitoring and feedback, ensuring optimal performance.
• Programmable and Configurable: Offers extensive programmability, enabling customization to specific requirements via software interfaces.
• The UCVC acts as the brain of a control system, processing sensor data, executing control algorithms, and communicating with other system components.
• It provides real-time monitoring and control of various parameters crucial for safe and efficient gas turbine operation.

WOC has the largest stock of OEM replacement parts for GE Innovation Series Control Systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is the UCVC Double-Slot Controller Board?

The UCVC is a critical component in the Mark VI Series control systems used for GE Speedtronic Gas Turbines. It acts as the central processing unit (CPU) for the system, monitoring sensor data, executing control algorithms, and communicating with other components.

Where are UCVC boards used?

The UCVC is primarily used in industrial gas turbine control systems, particularly in power generation applications.

What are the control functions of the UCVC board?

The UCVC monitors and controls various aspects of gas turbine operation, including fuel flow, combustion, exhaust temperature, speed, and vibration.
