IS200TRTDH1C - RTD Input Terminal Board

IS200TRTDH1C - RTD Input Terminal Board IS200TRTDH1C - RTD Input Terminal Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS200TRTDH1C - RTD Input Terminal Board is available in stock which ships the same day.

IS200TRTDH1C - RTD Input Terminal Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS200TRTDH1C - RTD Input Terminal Board, contact us and we will get back to you within 24 hours.

SPECIFICATIONS:

Part No: IS200TRTDH1C
Manufacturer: General Electric
Function: RTD Input Terminal Board
Series: Mark VIe
Number of Channels: 8
Operating temperature: 0 to 60 o C
Input voltage: 125 V
Total Output: 400 W
Board Size: 6.25 in x 4.25 in
Availability: In Stock
Country of Origin: USA
Manual: GEH-6421L

FUNCTIONAL DESCRIPTION:

IS200TRTDH1C is an RTD Input Terminal Board manufactured and designed by General Electric as part of the Mark VIe Series used in GE distributed gas turbine control systems. There are 16 three-wire RTD inputs on the RTD Input (TRTD) terminal board. Two barrier-type terminal blocks are connected to these inputs by wiring. To guard against surges and high-frequency noise, the inputs feature noise-reduction circuitry. TRTD interacts with one or more I/O processors to transform inputs into digital temperature values and send those data to the controller. There are four different TRTD versions, as follows:

  • The TRTDH1B is a TMR variant that uses six DC-type connectors to fan out the signals to three VRTD boards.
  • A simplex board called TRTDH1C has two DC-type connectors for VRTD.
  • TRTDH1D is a simplex board with two PRTD, normal scan DC-type connections.
  • The TRTDH2D is a simplex board with two PRTD, quick-scan DC-type connectors.
RTD Input Terminal Boards

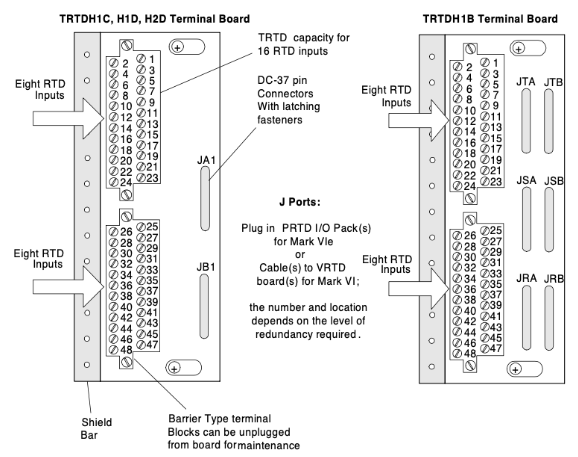

Fig 1: RTD Input Terminal Boards


INSTALLATION:

The 16 RTDs' wires should be connected straight to the two terminal blocks on the terminal board. With 24 terminals that can accommodate wires up to #12 AWG, each block is secured in place with two screws. On the left-hand side of each terminal block, a shield terminal strip connected to the chassis ground is present. The TRTDH1B board in a TMR Mark VI control system provides redundant RTD inputs by fanning the inputs to three VRTD boards in the R, S, and T racks. The inputs comply with the same environmental, resolution, suppression, and function standards and regulations as the TRTDH1C terminal board; the quick scan, however, is not accessible.

OPERATION:

For each RTD, which can be grounded or ungrounded, TRTD provides a 10 mA dc multiplexed (not continuous) excitation current. The 16 RTDs can be placed as far away from the turbine control cabinet as 300 m (984 ft), with a maximum two-way cable resistance of 15. When scanning in normal mode or quickly, the I/O processor's A/D converter samples each signal and the excitation current 25 times per second and four times per second, respectively. The time sample interval is based on the power system frequency. For the chosen 15 RTD kinds, the software does the linearization. Out-of-range measurements can identify RTD short and open circuits.

To avoid negative effects on other input channels, an RTD that is found to be outside the hardware limits is deleted from the scanned inputs. In 20 seconds, repaired channels are automatically restored; alternatively, they can be manually restored. High-frequency decoupling to the ground is present at the signal entrance for all RTD signals. In order to prevent any RTD signals in the control database from being lost due to the failure of a single cable or I/O processor, RTD multiplexing in the I/O processor is managed by redundant pacemakers.

WOC has the largest stock of GE distributed control system replacement parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

How to Check Price and Availability For RTD Input Terminal Board?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

What Payment Options do You Accept?

Bank Transfer is the preferred payment method. For more payment options contact us.

Are the Products Genuine OEM Units?

These items have been certified by WOC Quality Control to be genuine OEM Units obtained through OEM or independent third-party channels.
