IS200STAOH2A - Simplex Analog Output Terminal Board

IS200STAOH2A - Simplex Analog Output Terminal Board IS200STAOH2A - Simplex Analog Output Terminal Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS200STAOH2A - Simplex Analog Output Terminal Board is available in stock which ships the same day.

IS200STAOH2A - Simplex Analog Output Terminal Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS200STAOH2A - Simplex Analog Output Terminal Board, contact us and we will get back to you within 24 hours.


Part No: IS200STAOH2A
Manufacturer: General Electric
Function: Terminal Board
Series: Mark VIe
Number of channels: 8
Analog output current: 0-20 mA
Customer load resistance: Up to 900 Ω
Size: 15.9 cm high x 10.2 cm wide
Operating temperature: -30 to 65oC
Technology: Surface mount
Availability: In Stock
Product of Origin: USA
Manual: GEH-6721


IS200STAOH2A is a Simplex Analog Output Terminal Board manufactured and designed by General Electric as part of the Mark VIe Series used in Distributed Control Systems. Compact analog output terminal boards are available, such as the Simplex Analog Output (STAO) terminal board, which is made for flat or DIN-rail mounting. Eight 0-20 mA analog outputs on STAO are powered by the PAOC I/O pack. Similar to the TBAO terminal board, the onboard circuitry and noise reduction are present. The board is equipped with high-density Euro-block style terminal blocks for connecting to the customers' devices. The board is identified to the I/O processor by an onboard ID chip for system diagnostics. The D-type connector is used to connect the I/O pack, which uses Ethernet to talk to the controller.


The STAO and a plastic insulator are mounted in a panel or on a DIN-rail-mounted sheet metal carrier. The STAO plus insulator mount can also be attached to a sheet metal assembly that is bolted directly to a cabinet. Driven equipment can be placed up to 300 meters (984 feet) away from the turbine control cabinet and shouldn't have a resistance greater than 900. There are two varieties of Euro-block terminal blocks:

  • An unpluggable mount terminal block with 36 terminals is present on STAOH1.
  • A permanently installed terminal block with 36 terminals is present on STAOH2.

As seen in the following diagram, the eight analog outputs are attached directly to the terminal block. For the SCOM connection, there are two screws. Typically, shielded twisted pair (#18 AWG) wires are utilized. An external mounting bracket supplied by GE or the client is used by the I/O cable shield termination. The mounting holes E1 and E2 are for the chassis ground screw connection (SCOM). To save cabinet space, DIN-type terminal boards can be stacked vertically on the DIN rail.


Fig 1: STAO Wiring and Cabling


Eight analog control current outputs are supported by STAO. The voltage drop across the current sense resistor in the local loop is detected for each output, and the signal is transmitted back to the I/O processor that regulates the current. Each output's surge is suppressed and high-frequency noise is reduced by filters close to the signal exit point. The D/A converter and drivers that produce the regulated currents are found in the I/O processor.

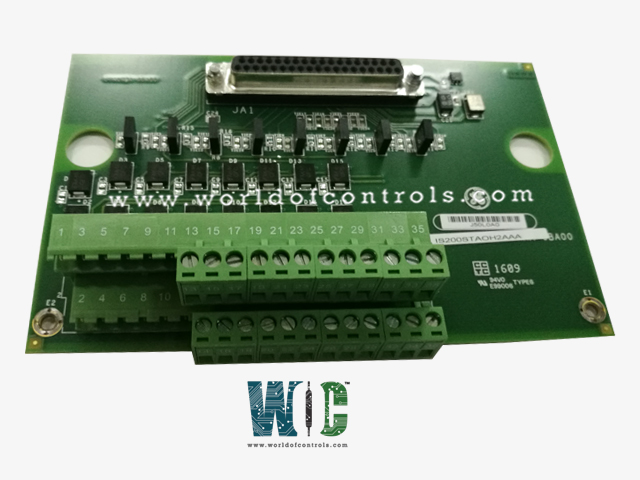

Fig 2: STAO Terminal Board


  • The output current is shown by the voltage drop across a series resistor on the board. A diagnostic alarm (fault) is generated by the I/O processor if either of the two outputs becomes unhealthy.
  • The I/O controller queries each ID device that each cable connector on the terminal board has to offer. The terminal board serial number, board type, revision number, and the placement of the JR, JS, and JT connectors are all encoded on a read-only chip known as the ID device.
  • A hardware incompatibility fault is produced when the I/O controller reads this chip and runs across a mismatch.
