IS200JPDVG1AAA - Power Distribution Board

IS200JPDVG1AAA - Power Distribution Board IS200JPDVG1AAA - Power Distribution Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS200JPDVG1AAA - Power Distribution Board is available in stock which ships the same day.

IS200JPDVG1AAA - Power Distribution Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS200JPDVG1AAA - Power Distribution Board, contact us and we will get back to you within 24 hours.

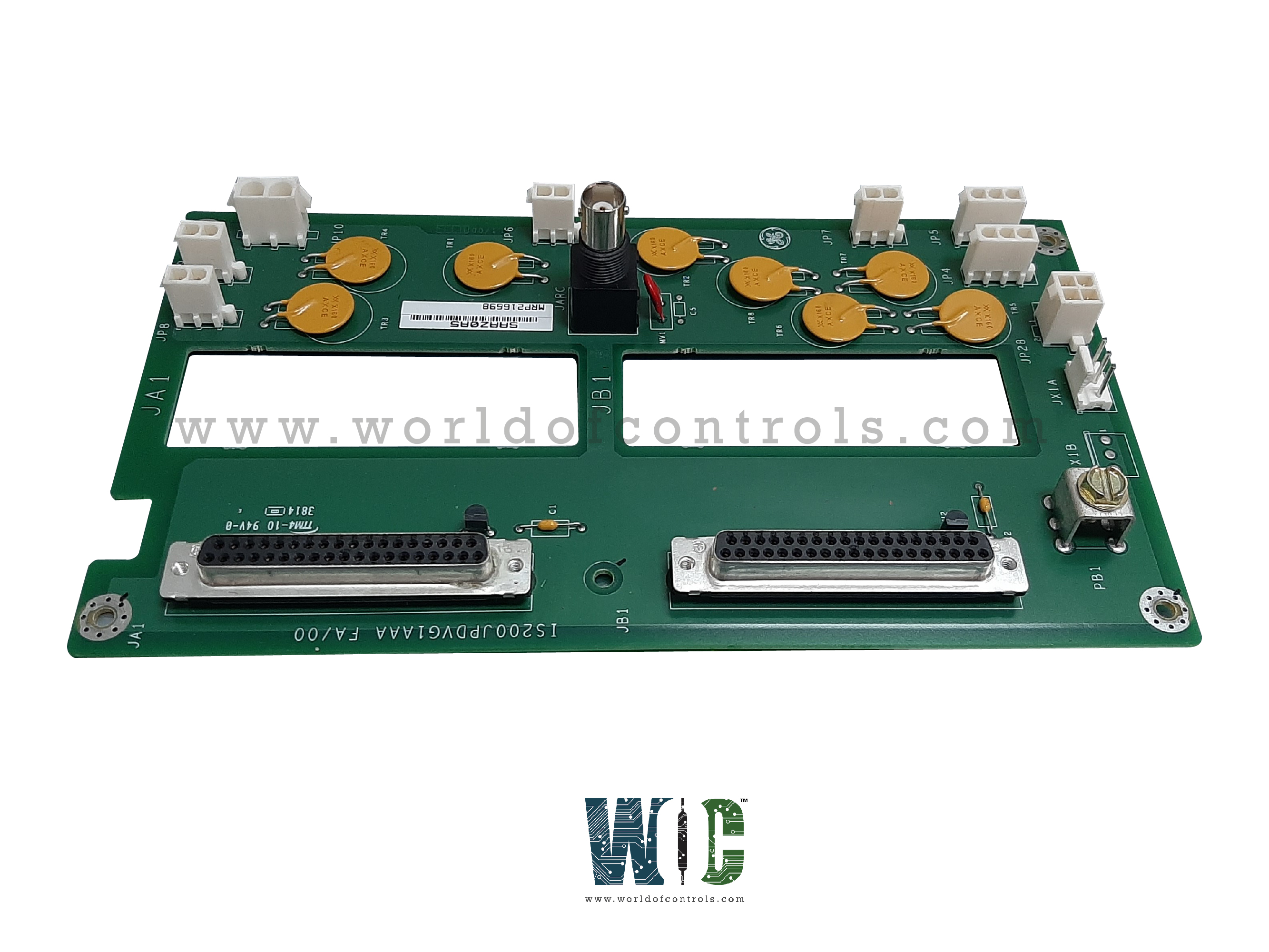

Part Number: IS200JPDVG1AAA
Manufacturer: General Electric
Series: Mark VIe
Product Type: Power Distribution Board
Number of channels: 1 channel
Input span: 1 - 5 V dc
Outputs: 24 V dc
Power: 28 V
Generator current inputs: 0 to 5 A
Analog inputs Current inputs: 4-20 mA
Analog output current: 0-20 mA
Size: 15.9 cm high x 17.8 cm
Operating Temperature: 0 to +60°C
Frequency: 50 or 60 Hz
Repair: 3-7 Day
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States
Manual: GEH-6800


IS200JPDVG1AAA is a Power Distribution Board Manufactured and designed by General Electric as part of the Mark VIe Series used in GE Distributed Turbine Control Systems. JPDV is the power distribution board for the MVRA and MVRF, with up to two controllers, an Ethernet switch, and up to two PIOA I/O packs. The board is the interface for the PIOA to the DLAN+ to the excitation control.


  • Connect the power cables going to MVRA and MVRF, if present.
  • Connect the power cables to the Ethernet switch, if present.
  • Connect the power cables to the controllers, if present.
  • Connect the power cables to the PIOA, if present.
  • Connect the DLAN+ (ARCNET) coax cable to the BNC connector.
  • Connect the Power In Cable, from the power supply.


The JPDV board contains the DLAN+ filtering and passes the signal to BIOA through the DC-37 pin connector. The JPDV routes power to the PIOA, the controllers, the MVRA and MVRF, and the Ethernet switch.


Each terminal board connector has its ID device that is interrogated by the I/O pack/board. The connector ID is coded into a read-only chip containing the board serial number, board type, revision number, and the JR1/JS1/JT1 connector location. When the chip is read by the controller and a mismatch is encountered, a hardware incompatibility fault is created.

WOC has the largest stock of GE Distributed Turbine Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly contact our team by phone or email.


What is a Power Distribution Board (PDB)?

A Power Distribution Board (PDB) is an essential component in electrical systems, serving as a centralized point for distributing electrical power to various circuits and devices within a building, facility, or system.

What is the primary function of a PDB?

The primary function of a PDB is to receive power from a main power source, such as a generator or utility grid, and distribute it safely and efficiently to different electrical circuits or loads.

What are the components of a typical PDB?

Components commonly found in a PDB include circuit breakers, fuses, busbars, terminals, switches, and sometimes meters or monitoring devices to measure power consumption or other electrical parameters.
