IS200EPCTG1A - Exciter PT/CT Terminal Board

IS200EPCTG1A - Exciter PT/CT Terminal Board IS200EPCTG1A - Exciter PT/CT Terminal Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS200EPCTG1A - Exciter PT/CT Terminal Board is available in stock which ships the same day.

IS200EPCTG1A - Exciter PT/CT Terminal Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS200EPCTG1A - Exciter PT/CT Terminal Board, contact us and we will get back to you within 24 hours.


Part No: IS200EPCTG1A
Manufacturer: General Electric
Function: Exciter PT/CT Terminal Board
Series: EX2100
Operating temperature: -30 to 65 ºC
Power Supply Voltage: 28 V dc
Board Size: 23.8 cm high x 8.6 cm
Weight: 0.45 kg
Availability: In Stock
Country of Origin: USA
Manual: GEI-100459


IS200EPCTG1A is a Simplex Servo I/O Terminal Board manufactured and designed by General Electric as part of the EX2100 Series used in the GE Excitation Control System. The IS200EPCT Exciter PT/CT (EPCT) terminal board contains isolation transformers for critical generator voltage and current measurements. Two 3-phase generator potential transformer (PT) voltage inputs are input to EPCT as shown in the following diagram, EPCT Terminal Board. Two generators' current transformer (CT) inputs, with current levels of 1 A or 5 A, are input. All the isolation transformer output signals are cabled to the EMIO board in the control rack. In addition, one analog input, which can be either a voltage or current, is brought into EPCT. When the highest reliability is required, three EPCT boards can be used.


Switches are used to wire TB1 with the generating voltages from the customer's potential transformers. The #12 AWG wire used in the cables has a maximum length of 1000 feet. The PT inputs are fused and have a rated voltage of 115 V rms at 50/60 Hz. On EPCT, two isolation transformers create a three-wire open delta voltage measurement, producing 1.533 V rms for a 115 V rms input.


Switches are utilized to connect TB1 to the producing voltages coming from the potential transformers belonging to the client. The maximum length of the #12 AWG wire utilized in the cables is 1000 feet. The PT inputs have a rated voltage of 115 V rms at 50/60 Hz and are fused. For a 115 V rms input, EPCT uses two isolation transformers to provide a three-wire open delta voltage measurement that is 1.533 V rms.


With a voltage range of 10 V dc or a current range of 4–20 mA, EPCT may accept one non-isolated analog input. A maximum two-way cable resistance of 15 ohms is allowed for cables up to 300 meters in length. With the jumper JP1, the input type is chosen. Connectors J305, J308, and J315 receive the voltage signal after being spread out.

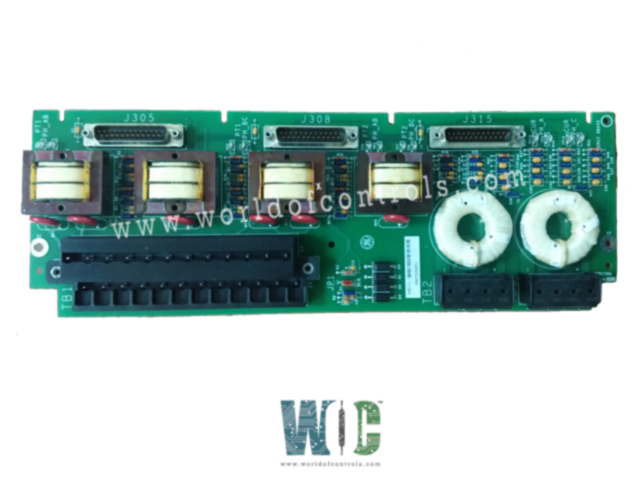

The following, EPCT Board Layout, displays the EPCT board's layout. The voltage and current isolation transformers are designated as T1 through T6. Two screws hold down the removable terminal block TB1 and allow for its removal. As a safeguard against a CT open circuit state, terminal blocks TB2 and TB3 cannot be removed. In a simplex control, the voltage signals are transmitted to the EMIO board in the M1 controller through the J305 connector. The signals are fanned to connections J305, J308, and J315 and routed to controllers M1, M2, and C in a redundant control. Eight voltage test points (TP1–TP8) are provided by EPCT, one for each secondary side leg of the isolation transformers.

WOC has the largest stock of GE Excitation Control System Replacement Parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


How to Check Price and Availability For IS200EPCTG1A?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

How are boards packaged for shipment from WOC?

Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.

Does WOC Provide a Warranty Certificate For their Products?

WOC provides warranty certificates depending on the Parts.
