IS200EGDMH1A - Exciter Ground Detector Module

IS200EGDMH1A - Exciter Ground Detector Module IS200EGDMH1A - Exciter Ground Detector Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS200EGDMH1A - Exciter Ground Detector Module is available in stock which ships the same day.

IS200EGDMH1A - Exciter Ground Detector Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS200EGDMH1A - Exciter Ground Detector Module, contact us and we will get back to you within 24 hours.


Part Number: IS200EGDMH1A
Manufacturer: General Electric
Series: EX2100
Product Type: Exciter Ground Detector Module
Operating Temperature: -30 to 65 o C
Repair: 3-7 Days
Country of Origin: USA
Availability: In Stock
Manual: GEI-100467

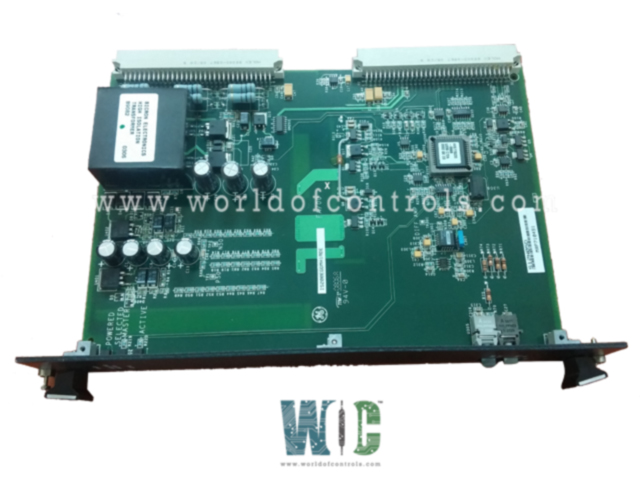

IS200EGDMH1A is an Exciter Ground Detector Module manufactured and designed by General Electric as part of the EX2100 Series used in Excitation Control Systems. It mounts in the Exciter Power Backplane rack as a double slot, double height (6U) form factor board (EPBP). The field ground detector measures the resistance in the field between any point in the field circuit of the generator and the ground, whether it is on the ac or dc side. A redundant system will have three EGDMs, but a simplex system will have one. Figure 1 displays the position of the EGDM(s). In order to communicate with the EGDM(s), EXAM, the attenuator module, measures the voltage across the ground sensing resistor. The High Voltage Module, which is housed in the Auxiliary Panel, has the EXAM module mounted in it.

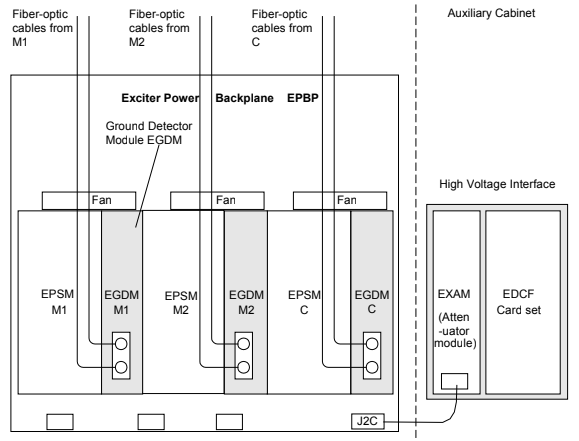

EGDM and Attenuator Module Mounting

Fig 1: EGDM and Attenuator Module Mounting

The trio of EGDM boards is set up as Controller (C), Master 1 (M1), and Master 2 (M2) in a redundant control (M2). A group of program pins on the P2 connector control each EGDM's setup. The DSPX transmits data to EGDM C via the EISB in the controller rack about which the master delivers the driving signal to the sensing resistor in the Attenuator Module. When C receives this data through the fiber-optic link, depending on whether M2 is the selected driver or M1 is the selected master, C either powers or empowers the relay in the Attenuator Module. A differential signal that identifies the selected master is simultaneously transmitted to M1 and M2.

This signal selects the test command source on each module and activates the signal generator on the active master (M1, M2, and C). The active master now gets an oscillator signal from the DSPX via the EISB across the fiber optic link, which it transforms into a positive or negative 50-volt signal. This square wave voltage is applied to one end of the sense resistor after being transmitted via cable to the EXAM module.

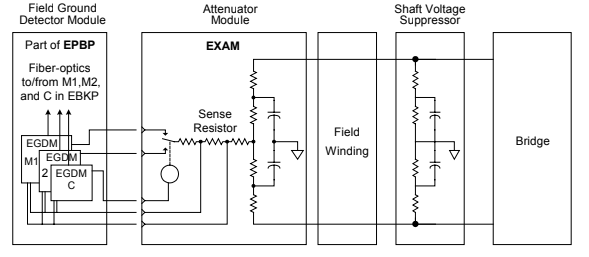

Ground Detector Functional Block Diagram

Fig 2: Ground Detector Functional Block Diagram

The Sense Resistor in the EXAM module sends an attenuated (10:1) differential signal to the signal conditioner. A straightforward unity gain differential amplifier with a high common-mode rejection ratio serves as the signal conditioner, which is followed by an A-to-D converter (Voltage Controlled Oscillator VCO). A fiber optic transmitter is fed by the VCO. Due to the high common-mode voltage at the sense resistor, the signal conditioner circuitry is powered by an isolated power source to protect worker and equipment safety. When instructed to do so by the control section, the signal conditioner grounds the bridge side of the attenuated Sense Resistor and uses this information to determine the power amplifier output level.

WOC has the largest stock of GE EX2100 Excitation Control Systems OEM Replacement Parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


What are the applications of IS200EGDMH1A?

Process signal measurement, data logging, Motor Speed Monitoring, Alarm level sensing, Energy Usage Monitoring, and position sensing.

How to Check Price and Availability For Exciter DC Feedback Board?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

How are boards packaged for shipment from WOC?

Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.
