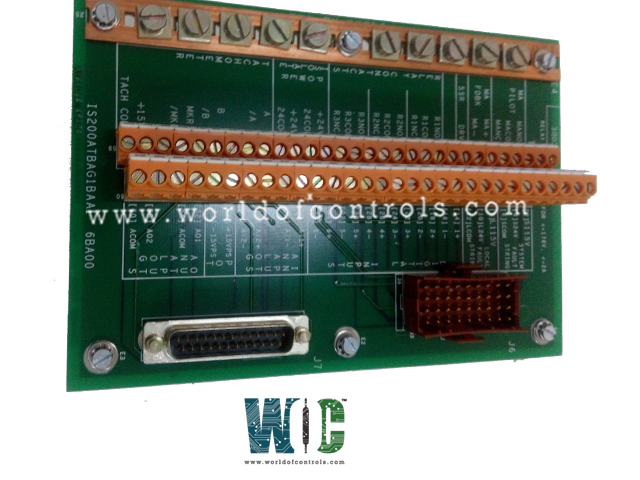

IS200ATBAG1BAA1 - Application Input/Output Terminal Board

IS200ATBAG1BAA1 - Application Input/Output Terminal Board IS200ATBAG1BAA1 - Application Input/Output Terminal Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS200ATBAG1BAA1 - Application Input/Output Terminal Board is available in stock which ships the same day.

IS200ATBAG1BAA1 - Application Input/Output Terminal Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS200ATBAG1BAA1 - Application Input/Output Terminal Board, contact us and we will get back to you within 24 hours.


Part Number: IS200ATBAG1BAA1
Manufacturer: General Electric
Series: Drive Control
Product Type: Application Input/Output Terminal Board
Number of channels: 1 channels
Input span: 1 - 5 V dc
Outputs: 24 V dc
Power: 28 V
Generator current inputs: 0 to 5 A
Analog inputs Current inputs: 4-20 mA
Analog output current: 0-20 mA
Size: 15.9 cm high x 17.8 cm
Operating Temperature: 0 to +60°C
Frequency: 50 or 60 Hz
Repair: 3-7 Day
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States
Manual: GEH-6385


IS200ATBAG1BAA1 is an Application Input/Output Terminal Board Manufactured and Designed by General Electric as part of the Mark VIe Series used in GE Drive Turbine Control Systems. It is a crucial component within General Electric's Innovation Series, incorporating features like a Windows 2000/XP-based operator interface, Ethernet and DCS communications, and Cimplicity software. Terminal Board forms a critical part of General Electric's Innovation Series, offering an operator interface, communication capabilities, and software integration. The board features various connectors with different voltage ratings for J6 and J7, necessitating attention to these variations during handling or replacement. Additionally, adherence to safety protocols, such as electrical circuit testing before replacement, is highly recommended to mitigate potential risks during maintenance procedures involving the board.


Terminal Block Configuration: Provides a single 60-position terminal block catering to all J6 and J7 jumper connections to the CABP board.

Jumper Connection Details: No customizable hardware or manually movable jumpers are present in the IS200ATBAG1B. However, two versions of this model exist, each featuring different pin assignments for connectors J6 and J7.

Connector Ratings:

  • J7 Connector: Rated for 50V with a 1A maximum.
  • J6 Connectors: Generally rated for 225V with a 1A maximum, except for specific connectors like CONA_NO, CONA_NC, CONA_C, RLY1COM, RLY1NC, RLY1NO, RLY2COM, RLY2NC, RLY2NO, RLY3COM, RLY3NC, and RLY3NO, which have different voltage ratings.

Connector Base Plate Ratings: Most connectors affixed to the base plate are rated for 176V with a 1A maximum, differing from the specific J6 connectors rated at 225V maximum. All J7 connections maintain a rating of 50V with a 1A maximum.

Safety and Replacement Recommendations: Electrical Testing Before Replacement: Before replacing the board, it is strongly advised to perform electrical circuit testing. Ensure that no potentially dangerous voltages are present on the board's surface when powered off to prevent accidental exposure to hazardous electrical currents.

WOC has the largest stock of GE Drive Turbine Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly contact our team by phone or email.


What is an Application Input/Output Terminal Board?

An Application Input/Output Terminal Board, commonly referred to as an I/O Terminal Board, is a hardware component used in various electronic systems to manage the input and output functionalities. It acts as an interface between the system's central processing unit and external devices or peripherals.

Where are I/O Terminal Boards commonly used?

I/O Terminal Boards find applications in various industries and systems, including industrial automation, process control, robotics, automotive electronics, aerospace, and instrumentation.

What types of input and output signals can an I/O Terminal Board handle?

Depending on the specific design and application requirements, an I/O Terminal Board can handle a wide range of signals, including analog voltage/current, digital logic signals, frequency/pulse inputs, temperature, pressure, and various sensor outputs.
