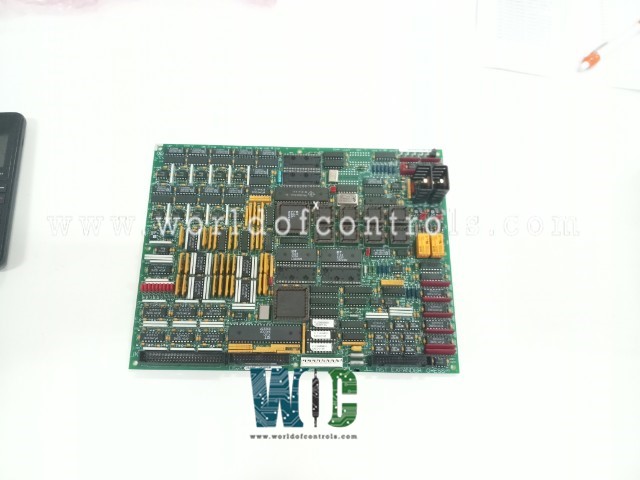

DS200TCQBG2A - RST Extended Analog I/O Board

DS200TCQBG2A - RST Extended Analog I/O Board DS200TCQBG2A - RST Extended Analog I/O Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200TCQBG2A - RST Extended Analog I/O Board is available in stock which ships the same day.

DS200TCQBG2A - RST Extended Analog I/O Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200TCQBG2A - RST Extended Analog I/O Board, contact us and we will get back to you within 24 hours.

Request For Quote
Contact Us

Featured Product

SPECIFICATIONS

Part No.: DS200TCQBG2A
Manufacturer: General Electric
Product Type: RST Extended Analog I/O Board
Series: Mark V

DS200TCQBG2A is an RST Extended Analog I/O Board under the Mark V series. A programmable logic device and EPROM modules are installed on the GE RST Extended Analog I/O Board DS200TCQBG2A.

  • The GE RST Extended Analog I/O Board DS200TCQBG1BCB also has a side-mounted OK LED, a 50-pin connector, and 15 jumpers. Multiple test points are also included on the GE RST Extended Analog I/O Board DS200TCQBG2A, which are useful for checking the board's individual circuitry.
  • The test points have unique IDs that begin with TP and end with a number. For example, one test point's ID is TP1, whereas another's ID is TP12. To use a test point, the servicer must have a testing device that is specifically intended for completing the circuit board test. A fully calibrated testing device is required. In addition, the front of the testing device's settings must be adequate for the testing. Place the board on a static-resistant surface, such as a flattened EDS bag.
  • When working with a board or doing any work in the drive, always wear a wrist strap. The fact that the green LED on the side of the board is not lighted is the first sign that the board isn't working. While the drive is active, the LED is lighted and visible from the board cabinet when the board is receiving power and performing as specified. Circuits on the board may be defective if the LED is not lighted while the board is getting power, and checking the circuits may help to pinpoint the problem.

The most extensive assortment of GE Speedtronic Mark V control replacement components can be found at World of Controls. Our experts are available to assist you with your Mark V requirements at any time. Please contact WOC if you require any additional information.



Frequently Asked Questions



What is DS200TCQBG2A?
DS200TCQBG2A is an RST Extended Analog I/O Board under the Mark V series

How many jumpers are there on DS200TCQBG2A?
There are 15 jumpers on DS200TCQBG2A.

How to Obtain DS200TCQBG2A?
WOC provides DS200TCQBG2A as well as other turbine control products. Contact World of Controls.
