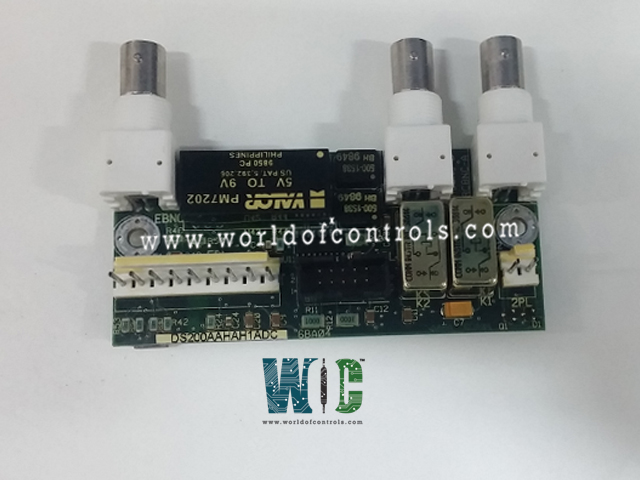

DS200AAHAH1AED - ARCNET LAN Connection Board

DS200AAHAH1AED - ARCNET LAN Connection Board DS200AAHAH1AED - ARCNET LAN Connection Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200AAHAH1AED - ARCNET LAN Connection Board is available in stock which ships the same day.

DS200AAHAH1AED - ARCNET LAN Connection Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200AAHAH1AED - ARCNET LAN Connection Board, contact us and we will get back to you within 24 hours.


Part Number: DS200AAHAH1AED
Manufacturer: General Electric
Series: Mark V LM
Input Voltage: 105-132 V ac
Output Voltage: 90 to 145 V dc
Output Current Rating: 9.5 A dc
Output Ripple Voltage: 4 V p-p
Function: ARCNET LAN Connection Board
Input Voltage: 105-132 V ac
Output Voltage: 90 to 140 V dc
Temperature: -30 to 60°C
Manufacture Place: United States
Availability: In Stock
Manual: GEH-6153


DS200AAHAH1AED is an ARCNET LAN Connection Board manufactured and designed by General Electric as part of the Mark V LM Series used in GE Speedtronic Control Systems. The ARCNET Connection Board (AAHA) provides the interface connection for ARCNET cables linking to the IO cores and HMI. Two BNC connections (channels A and B) are provided. One plug connector, the APL connector, is provided for communication with the boards containing the ARCNET drivers in . The APL connector links the AAHA board with the APL or BPL connector on the PANA board. Two AAHA boards are in location 6 of . One AAHA labeled AAHA1 in Appendix B, is for the Stage Link between and the operator interfaces. When both BNC connectors on this board are used, either two independent Stage Links can be connected to one controller or another controller can be connected to the Stage Link. The APL connector on AAHA1 connects to the APL connector on PANA. The second AAHA, labeled AAHA2 in Appendix B, connects to the COREBUS link that allows the Control Engine to communicate to the IO cores. COREBUS is the name of the internal ARCNET link for the Mark V LM controller IO communications. The APL connector on AAHA2 connects to the BPL connector on PANA.


Topology: ARCNET supports both bus and star topologies. In a bus topology, all devices share a common communication medium, while in a star topology, each device is connected to a central hub.

Data Transfer Rate: ARCNET typically operates at speeds of 2.5 Mbps (Megabits per second) or 10 Mbps, depending on the version and implementation. It might not be as fast as some modern LAN technologies but was suitable for its time.

Medium Access Control: ARCNET uses a token-passing protocol for medium access control. A token is passed from one node to another, allowing the node holding the token to transmit data.

Cabling: The cabling used in ARCNET can vary, but it commonly employs coaxial cables. The type of cable and connectors used may depend on the specific implementation and version of ARCNET.

Network Size: ARCNET networks can support a limited number of nodes, typically ranging from a dozen to a few dozen devices. This makes it suitable for smaller networks.

Addressing: ARCNET devices are assigned unique addresses to enable communication within the network. These addresses are used to identify the source and destination of data packets.

Reliability: ARCNET is known for its deterministic and predictable behavior, making it suitable for real-time applications. The token-passing protocol helps ensure controlled access to the network.

Protocol Stack: ARCNET has its protocol stack, which includes the physical layer, data link layer, and a portion of the network layer. It is not directly compatible with the more common TCP/IP protocol stack.

WOC has the largest stock of GE Speedtronic Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


What is an ARCNET LAN connection board?

An ARCNET LAN connection board is a hardware component designed to enable devices to connect to an ARCNET local area network (LAN). It typically includes the necessary interfaces and circuitry to allow a computer or device to communicate over an ARCNET network.

What is ARCNET used for?

ARCNET (Attached Resource Computer NETwork) was a LAN technology used for connecting computers and devices within a local network. It was commonly used in the 1980s and 1990s, especially in industrial automation, control systems, and other applications that required deterministic and reliable communication.

How does ARCNET differ from other LAN technologies?

ARCNET differs from other LAN technologies, such as Ethernet, in its use of a token-passing protocol for medium access control. It also has a deterministic nature, making it suitable for real-time applications. However, it has been largely replaced by Ethernet due to higher data transfer rates and broader industry adoption.
