DS200ACNAG1A - ARCNET Local Area Network Connections Board

DS200ACNAG1A - ARCNET Local Area Network Connections Board DS200ACNAG1A - ARCNET Local Area Network Connections Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200ACNAG1A - ARCNET Local Area Network Connections Board is available in stock which ships the same day.

DS200ACNAG1A - ARCNET Local Area Network Connections Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200ACNAG1A - ARCNET Local Area Network Connections Board, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: DS200ACNAG1A
Manufacturer: General Electric
Product Type: ARCNET Connection Card
Series: Mark V
Availability: In Stock
Country of Origin: USA

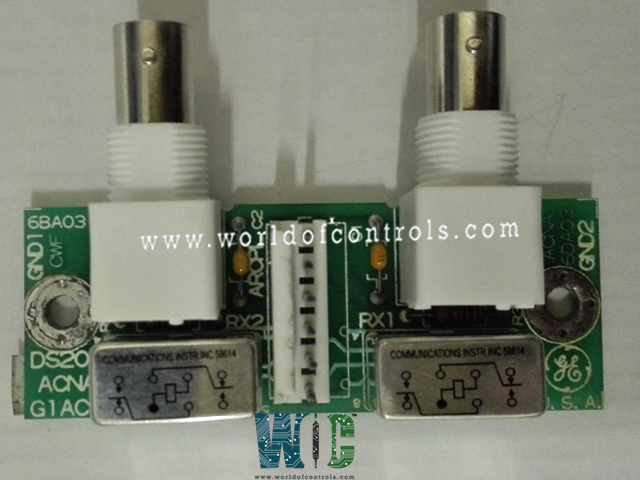

DS200ACNAG1A is an ARCNET Local Area Network Connections Board manufactured by General Electric as a part of the Mark V series used in gas turbine control systems. The ACNA terminal board serves as the connection for the ARCNET data link between the main controller, IOS, protection module, and mark V turbine control panel. Termination is made using a coaxial cable. Each ACNA can terminate two coaxial cables. Connector ARCPL is used only on the ARCNET model. The ARCNET Board is a simple PCB with two BNC connectors that are readily installed and removed on a Mark V or EX2000 drive system because it is located externally. Four metal film resistors (R1/R2/R3/R4), two transistors, one diode, and three capacitors (C1/C2/C3) are among the components. Two apertures rimmed with metal cut into either side of the card make up the board. GND1 and GND2 are the designations for these. Two communications relay devices are located in the center of the board. Relay schematics are printed on the upper surface of both components.

A single six-pin male vertical pin terminal connector is located along the centerline of the board, and two female BNC plugs complete the ARCNET Connection Card. These plugs are intended to make LAN communication easier.

  • TXA(-) - Transmitting and receiving signals, Channel A
  • TXA(+) - Transmitting and receiving signals Channel A
  • TXB(-) - Transmitting and receiving signals Channel B
  • TXB(+) - Transmitting and receiving signals Channel B
  • P5 - Power +5 V DC
  • DCOM - Power Digital Common
  • TXB - Transmitting signal selected by JP15 as isolated DLAN Circuit or RS-422
  • TXA - Receiving signal selected by JP15 as isolated DLAN Circuit or RS-422

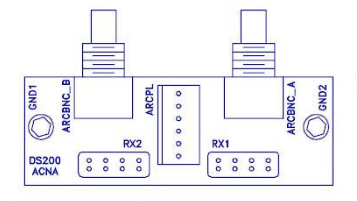

ACNA Board I/O Connectors

ACNA Board I/O Connectors

WOC supports a large number of GE Speedtronic Spare parts, including DS200ACNAG1A. Please do not hesitate to contact us if you require additional information or have a question.



FREQUENTLY ASKED QUESTIONS

What is GE Mark V DS200ACNAG1A?

The DS200ACNAG1A is an ARCNET Local Area Network Connections Board that serves as the connection for the ARCNET data link between the main controller, IOS, protection module, and mark V turbine control panel.

What are the five elements that make up a network?

The server, client, peer, transmission media, and connecting devices are the physical components.
