DS200TCQAG2B - Analog I/O Board

DS200TCQAG2B - Analog I/O Board DS200TCQAG2B - Analog I/O Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200TCQAG2B - Analog I/O Board is available in stock which ships the same day.

DS200TCQAG2B - Analog I/O Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200TCQAG2B - Analog I/O Board, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: DS200TCQAG2B
Manufacturer: General Electric
Series: Mark V LM
Product Type: Input Output Board
Operating Temperature: 0 to 40oC
Board Size: 16.51 cm high x 17.8 cm
Repair: 3-7 Days
Country of Origin: USA
Availability: In Stock
Manual: GEH-6153

Functional Description

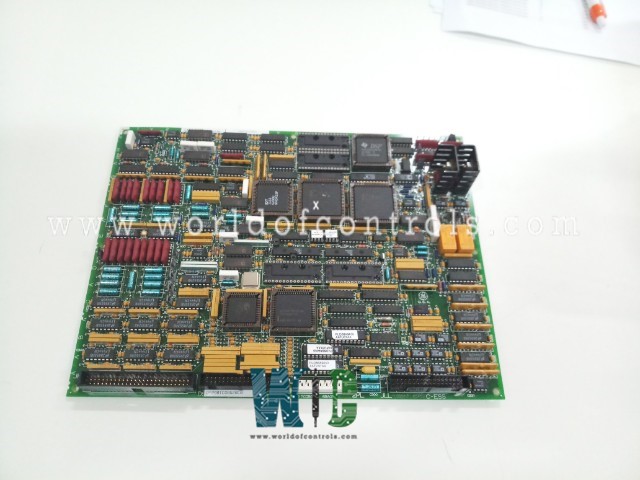

DS200TCQAG2B is an Analog I/O Board manufactured and designed by General Electric as part of the Mark V LM Series used in Speedtronic Control Systems. The Analog IO Board (TCQA) scales and conditions a large number of the analog signals that terminal boards mounted on the I/O cores R1, R2, and R3 read in. Included in this group of signals are the LVDT inputs, servo valve outputs, thermocouple inputs, 4-20 mA inputs and outputs, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator and line signals. On the STCA board, some of the signals are written via the 3PL connector. Through the JE connector, the TCQC board receives and transmits generator and line signals. The TCQA board scales and conditions input signals that are 420 mA, including the fuel flow pressure and compressor stall-detect signals.

DS200TCQAG2B Configuration

Hardware

  • The mA output circuits are chosen using hardware jumpers J1 and J2. The mA outputs current range, either 20 mA maximum or 200 mA maximum, is configured using J5 and J6. For card tests, the RS232 port is connected to J7. An oscillator is activated by J8.
  • For details on the hardware jumper settings for this board, consult Appendix A and the operator interface's hardware jumper panel.

Software

  • Thermocouple, pulse rate, vibration, LVDT position, 4-20 mA input, and output I/O Configuration constants are entered in the I/O Configuration Editor.
  • It is found on the operator interface as explained below.

Pulse Rate Input Circuit

  • The circuitry that scales and controls the pulse rate inputs read from the TCQC board through the JE connector is located on the TCQA board. These signals come from the TTL (transistor to transistor logic) and magnetic pickup inputs, whose signals are sent to the QTBA and/or PTBA terminal boards.
  • The high-pressure shaft speed inputs are delivered to the "R1" core. Other signals may be used with the pulse rate input circuits on R2 and R3.

DS200TCQAG2B Thermocouple circuit

  • The terminal board is coupled to thermocouples. The thermocouple cold junction reference, which is used to compute the cold junction compensation, is provided by circuits that are likewise housed on the terminal board.
  • The actual temperature read by the thermocouple is determined by the TCQA board using the thermocouple input and compensation setting. Via the 3PL connector, the I/O Engine reads the value. I/O configuration constants are used to select the types and curves of thermocouples.

WOC has the largest stock of GE Mark V LM Speedtronic OEM Replacement Parts. WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.



FREQUENTLY ASKED QUESTIONS



What is DS200TCQAG2B?

DS200TCQAG2B is an Analog I/O Board developed by General Electric and used in Speedtronic gas turbine control systems.

How to Check Price and Availability For Power Distribution Board?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

How are boards packaged for shipment from WOC?

Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.

WORLD OF CONTROLS warrants that from the date of delivery for a period of 36 months all UNUSED / REBUILT goods shall conform in all material respects with their description and any applicable specification.


WORLD OF CONTROLS warrants that from the point of delivery all Repairs will accord with their description and/or remain functional subject to the performance of the Repair Item for a period of 24 months.
