DS200TCEAG2BKE - TC200 EMERGENCY OVER

SPECIFICATIONS

Part Number: DS200TCEAG2BKE
Manufacturer: General Electric
Series: Mark V
Function: Processor Card

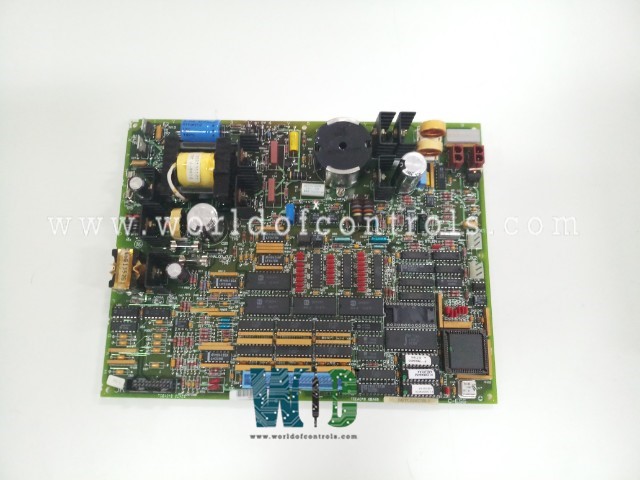

DS200TCEAG2BKE is an Emergency Overspeed Card and is part of the GE Speedtronic Mark V gas turbine Control Systems. One microprocessor and slots for numerous erasable programmable read-only memory (EPROM) modules are included in the GE Emergency Overspeed Board DS200TCEAG2BKE. Three fuses, 30 jumpers, and a pair of bayonet connections are also included. Multiple test points are also present on the GE Emergency Overspeed Board DS200TCEAG2BKE. A service with the right equipment can test the circuits on the board using the test points. Each test point has its own unique ID. ANALOG OUTPUT, COM, P5, JW, and RESET are some of the IDs allocated to the test points. If you feel the board isn't working properly, circuit testing is a useful troubleshooting technique.

• WOC stocks the most Speedtronic Mark V control spares, and we can repair your malfunctioning DS200TCEAG2BKE with a 12-month warranty. UNUSED and REBUILT DS200TCEAG2BKE are also available from WORLD OF CONTROLS, with a 24-month warranty.

• Our team of professionals is accessible 24 hours a day, 7 days a week to assist you with your DS200TCEAG1BRE needs. WOC's sales staff will be pleased to help you with any of your automation needs. For pricing and availability on any components or repairs, please contact our team by phone or email.



FREQUENTLY ASKED QUESTIONS

What does the DS200TCEAG2BKE process besides Overspeed?

DS200TCEAG2BKE analyzes flame detection trip signals in addition to Overspeed.

What kind of processor is in the DS200TCEAG2BKE?

The microprocessor of the DS200TCEAG2BKE is an 80196.

What are the jumpers on the DS200TCEAG2BKE?

The berg-type jumpers on the DS200TCEAG2BKE program the device to the P core.
