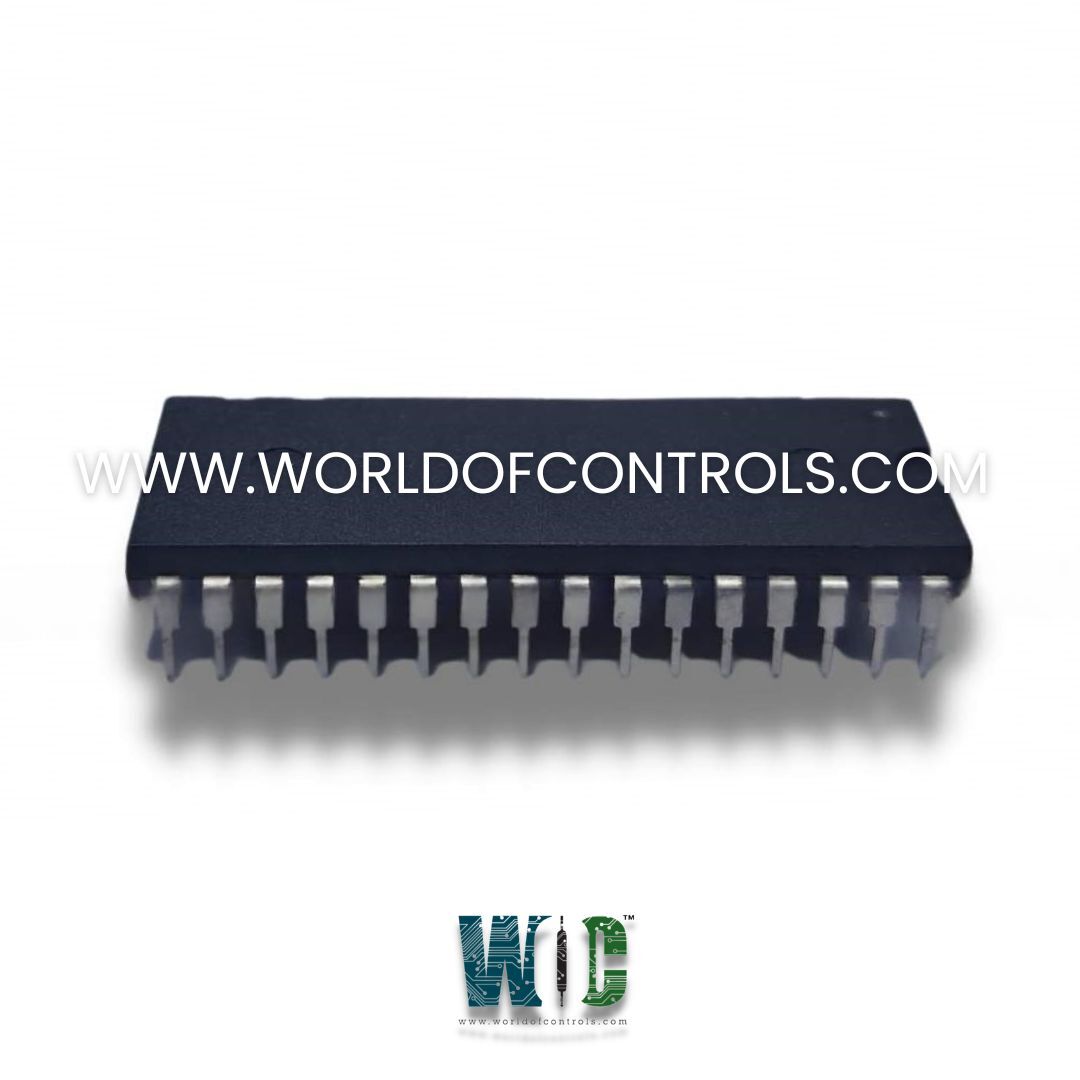

DS200TCCBP1BAC - EPROM Set

SPECIFICATIONS

Part No.: DS200TCCBP1BAC
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Product Type: EPROM Set
Availability: In Stock
Series: Mark V

Functional Description

DS200TCCBP1BAC is an EPROM Set developed by GE. It is a part of Mark V control system. This EPROM set is typically installed directly on the TCCB board (Analog I/O board). It plays a pivotal role in enabling the board to Interpret analog inputs such as 4–20 mA signals, RTDs, and voltage/current signals, Scale and condition signal data for processing by the I/O engine, Communicate processed data over the 3PL bus to other Mark V control components and Execute specific monitoring and protective functions according to turbine configuration.

System operator interface features

• The operator interface in the GE Mark V control system serves as the central point for human interaction with the turbine control system. It enables operators to monitor system performance, issue commands, respond to alarms, and manage day-to-day turbine operations. This interface is composed of several essential components, including a color monitor for real-time display, a keyboard for data input and control navigation, a cursor positioning device (such as a mouse or trackball), optional printers for hard copy reports, and a central processing unit (CPU) that runs the HMI software. Together, these components create a user-friendly and interactive environment for managing turbine systems.
• The operator interface communicates with the Mark V LM controller via an ARCNET cable. ARCNET is a high-speed, deterministic industrial communication protocol that ensures reliable and timely data exchange between the interface and the controller. This network connection enables the operator interface to send and receive control commands, monitor system parameters in real-time, and maintain synchronized communication with the Mark V system.
• The design of the operator interface is flexible and supports various deployment scenarios. It can be installed in a central control room to allow plant-wide management or placed directly in a turbine control compartment for localized operation. One operator interface can be used to control multiple turbines, and conversely, multiple operator interfaces can be used to manage a single turbine. This provides both scalability and redundancy, allowing operators to choose which units to monitor or control based on operational needs. All interfaces maintain the capability to issue commands to the turbine as long as communication with the Mark V controller is active.

The WOC team is always available to help you with your Mark V requirements. For more information, please contact WOC.

Frequently Asked Questions

What is DS200TCCBP1BAC?
It is an EPROM Set developed by GE under the Mark V series.

What is the purpose of the operator interface in the system?
The operator interface allows plant personnel to monitor turbine operations, issue commands, respond to alarms, and manage control system functions through a user-friendly display and control setup.

What hardware components are included in the operator interface?
The standard operator interface includes a color monitor, keyboard, cursor positioning device (CPD) such as a mouse or trackball, CPU, and optionally printers for event and alarm logs.
