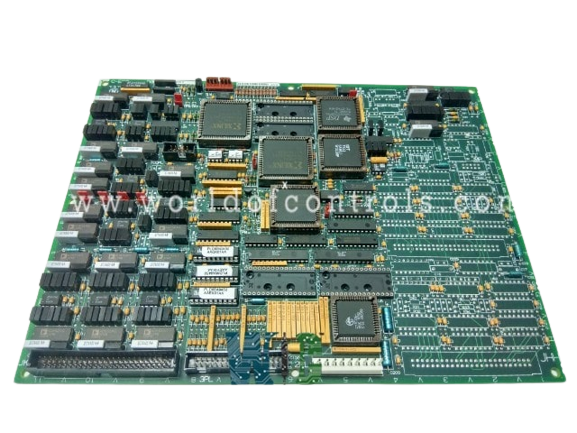

DS200TCCBG8BED - Common Extended Analog I/O Board

DS200TCCBG8BED - Common Extended Analog I/O Board DS200TCCBG8BED - Common Extended Analog I/O Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200TCCBG8BED - Common Extended Analog I/O Board is available in stock which ships the same day.

DS200TCCBG8BED - Common Extended Analog I/O Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200TCCBG8BED - Common Extended Analog I/O Board, contact us and we will get back to you within 24 hours.


Manufacturer: General Electric
Function: Common Extended Analog I/O Board
Series: Mark V LM
Number of Inputs: 12
Operating temperature: -30 to 65 ºC
Power Supply Voltage: 125 V dc
Technology: Surface Mount
Board Size: 33.0 cm high x 17.8 cm
Availability: In Stock
Country of Origin: USA
Manual: GEH-6153


DS200TCCBG8BED is a Common Extended Analog I/O Board manufactured and designed by General Electric as part of the Mark V LM Series used in GE Speedtronic gas turbine control systems. The Common Extended Analog I/O Board (TCCB) scales and conditions additional analog I/O signals that are read from the TCEB board in the P1 core and the TBCB terminal board installed on the R5 core. These signals consist of the line current inputs, RTDs, generator and bus voltage inputs, and 4-20 mA/0-1 mA inputs. Through the 3PL connector, the scaled and conditioned signals are delivered to the STCA board.


Hardware: The hardware jumpers J1, J2, J3, J4, and J5 are used to provide the generator and bus voltage monitoring functions, and the line current monitoring function in the Mark V LM. Hardware jumper J14 is used to connect the RS232 serial port to DCOM. Hardware jumpers J15 and J16 are used for testing purposes. Refer to Appendix A and the hardware jumper screen on the operator interface for information on the hardware jumper settings for this board.

Software: I/O configuration constants for the RTDs, mA inputs, the generator and bus voltage, and line current settings are entered in the I/O Configuration Editor located on the HMI as described below.

WOC has the largest stock of GE Speedtronic control system replacement parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


How to Check Price and Availability For DS200TCCBG8BED?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

What Payment Options do You Accept?

Bank Transfer is the preferred payment method. For more payment options contact us.

How are boards packaged for shipment from WOC?

Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.
