DS200TCCBG1B - I/O TC2000 Analog Board

DS200TCCBG1B - I/O TC2000 Analog Board DS200TCCBG1B - I/O TC2000 Analog Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200TCCBG1B - I/O TC2000 Analog Board is available in stock which ships the same day.

DS200TCCBG1B - I/O TC2000 Analog Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200TCCBG1B - I/O TC2000 Analog Board, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: DS200TCCBG1B
Manufacturer: General Electric
Series: Mark V
Function: Analog Input Output

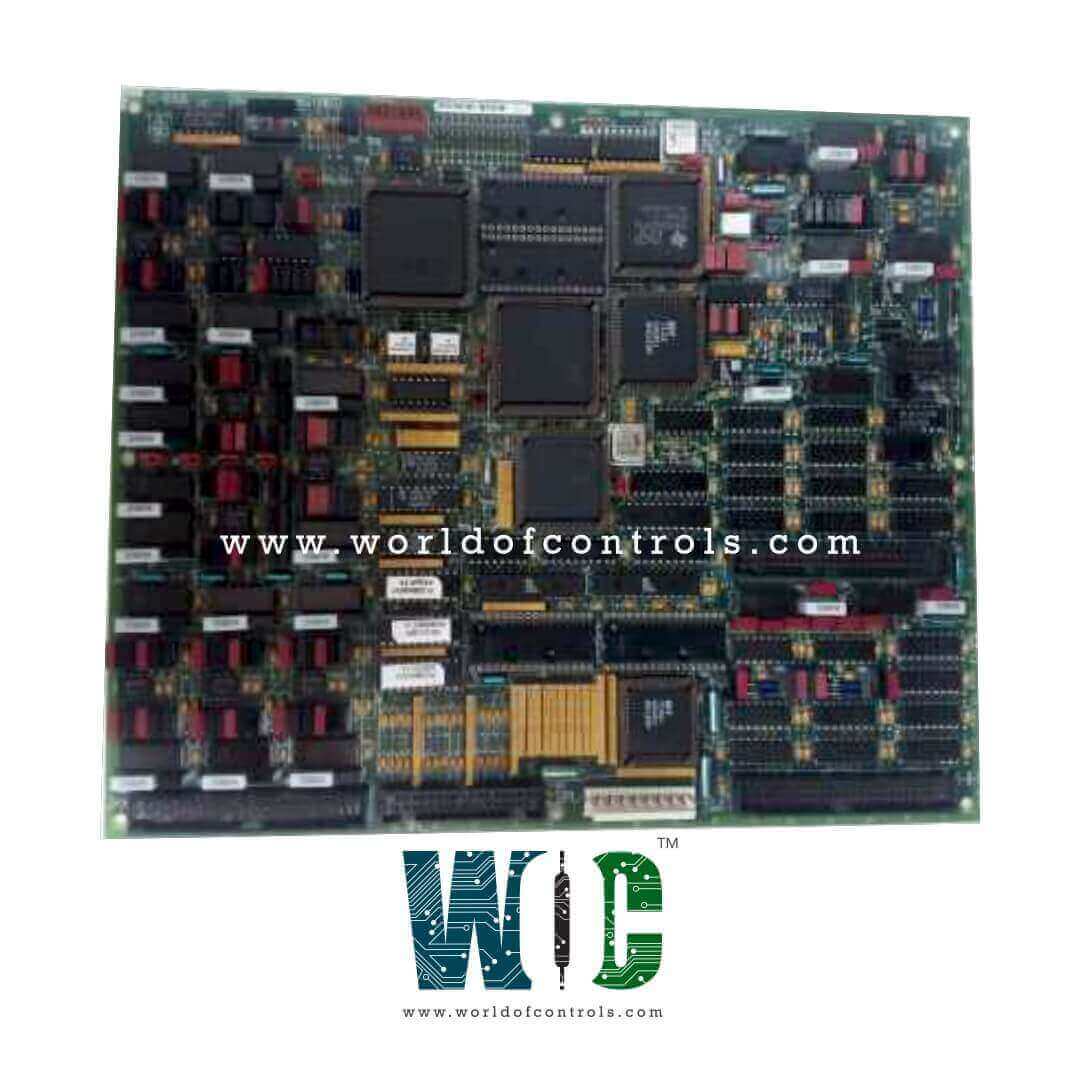

DS200TCCBG1B is an I/O TC2000 Analog Board and is part of the GE Speedtronic Mark V gas turbine control systems. The DS200TCCBG1B General Electric I/O TC2000 Analog Board has one 80196 CPU and numerous PROM modules. One LED and two 50-pin connectors are also included. From the side of the board, the LED is visible. JCC and JDD are the IDs for the 50-pin connectors. Three jumpers are also present on the board. The IDs of the jumpers are printed on the board's surface. JP1, JP2, and JP3 are the IDs. When the original board is put in the drive, the installer configures it to meet the drive's specifications to the best of his ability.

  • By adjusting the position of the jumpers, the installer can change the configuration values. Under most circumstances, the jumper positions are used by default, and the installer does not need to do anything else. However, in other cases, the installer adjusts the jumper's position based on the information provided in the written paperwork that comes with the board.
  • The jumper in a 3-pin jumper covers two pins at a time. The jumper could, for example, cover pins 1 and 2 or pins 2 and 3. Grab the jumper with your thumb and forefinger and pull it away from the pins to shift it. Then slip the jumper into place, aligning it with the new pins. Some jumpers are only supported in one location and are not utilized for board configuration. In this example, the alternate position is used by the manufacturer for product testing to check a certain circuit or function.
  • 2PL, 3PL, JHH, JII, JMP, JKK, JTEST, and TCQPL are the eight connectors on the board. JKK, JTEST, and TCQPL Connectors are typically not used.
  • WOC has the largest stock of Speedtronic Mark V control spares and we can repair your faulty cards with a warranty.

WORLD OF CONTROLS can also supply UNUSED and REBUILT products backed up with a warranty. Our team of experts is available round the clock to support your Speedtronic needs. Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.


FREQUENTLY ASKED QUESTIONS



What is the input circuitry of the DS200TCCBG1B?

The input circuit is 4-20 mA and the signals are read through the JHH connector.

What are the DS200TCCBG1B connectors?

There are eight connectors on the board. They are 2PL, 3PL, JHH, JII, JMP, JKK, JTEST, and TCQPL.

What is the main purpose of the DS200TCCBG1B?

The principal role is to provide scaling and conditioning for additional analog I/O signals read for the TBCB terminal board on the R5 core and the TCEB board in the P1 core.

WORLD OF CONTROLS warrants that from the date of delivery for a period of 36 months all UNUSED / REBUILT goods shall conform in all material respects with their description and any applicable specification.


WORLD OF CONTROLS warrants that from the point of delivery all Repairs will accord with their description and/or remain functional subject to the performance of the Repair Item for a period of 24 months.
