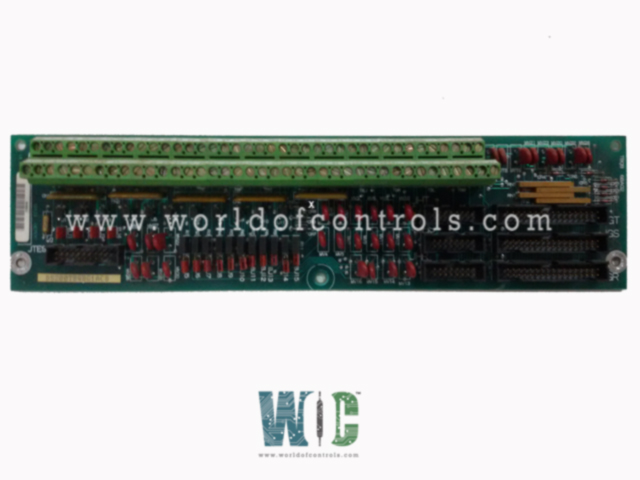

DS200TBQBG1A - Input Termination Module

DS200TBQBG1A - Input Termination Module DS200TBQBG1A - Input Termination Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200TBQBG1A - Input Termination Module is available in stock which ships the same day.

DS200TBQBG1A - Input Termination Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200TBQBG1A - Input Termination Module, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: DS200TBQBG1A
Manufacturer: General Electric
Country of Manufacture: United States(USA)
Series: Mark V
Availability: In Stock
Product Type: Input Termination Module

DS200TBQBG1A is an Input Termination Module developed by General Electric. The R2 and R3 cores each have a seventh position, which is the Input Termination Module (TBQB). The TCQA and TCQC boards in the R1 core are coupled with the TBQB terminal board in the R2 core. The TCQA and TCQC boards in the R3 core are linked to the TBQB terminal board there. The TBQB terminal board receives the input signals for voltage, vibration, and pulse rate.

DS200TBQBG1A Connections

  • JGR - Writes the analog current, voltage, and vibration signals to the TCQA board in the appropriate cores.
  • JHR - Writes the compressor stall detection and pulse rate inputs to the TCQC board in the appropriate cores.
  • JGS/T - Not frequently used.
  • JHS/T - Not frequently used.

Hardware Configuration

  • BJ1 through BJ4 - Used in older applications to fan out the pressure transducer #1 input signal (compressor stall detection).
  • Used in conjunction with BJ1 through BJ4 are BJ5 through BJ7. Install a burden resistor so that the pressure transducer #1's input signal is converted from a voltage signal to a mA signal.
  • BJ8 through BJ15 - Sets the current or voltage for analog inputs.

WOC has the largest stock of Speedtronic Mark V control spares. We can repair your faulty parts. Please contact our staff by phone or email for pricing and availability on any parts and repairs.



FREQUENTLY ASKED QUESTIONS



What is DS200TBQBG1A?
DS200TBQBG1A is an Input Termination Module developed by General Electric

What is the location of the board in the core?
It is located in location 7 when it is in the R core.

What are the termination signals on TBQB?
There are four termination signals on the board. They are pulse rate inputs, compressor discharge transmitters, DC voltage inputs, and a vibration transducer.
