DS200SDCIG1A - DC Power Supply and Instrumentation Board

DS200SDCIG1A - DC Power Supply and Instrumentation Board DS200SDCIG1A - DC Power Supply and Instrumentation Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200SDCIG1A - DC Power Supply and Instrumentation Board is available in stock which ships the same day.

DS200SDCIG1A - DC Power Supply and Instrumentation Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200SDCIG1A - DC Power Supply and Instrumentation Board, contact us and we will get back to you within 24 hours.


Part Number: DS200SDCIG1A
Manufacturer: General Electric
Series: Mark V
Product Type: DC Power Supply and Instrumentation Board
Availability: In Stock
Country of Origin: USA

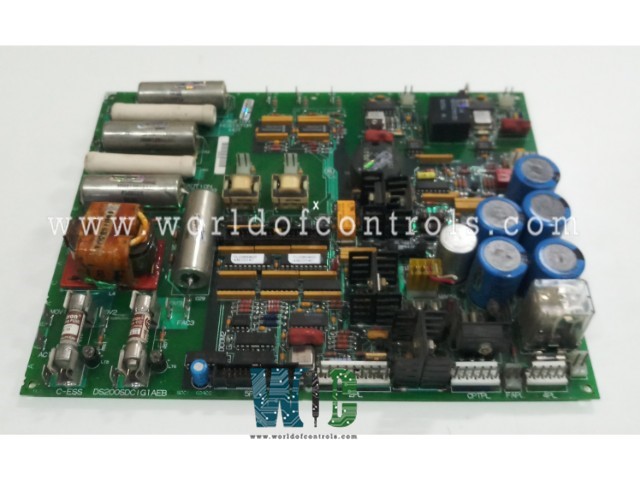

DS200SDCIG1A is an SDCI DC Power Supply and Instrumentation Board for DC2000 drives. As each fuse includes an LED indicator that informs when the fuse with which it is related blows, troubleshooting and usability of the board are improved.

DS200SDCIG1A Features

To view the board and check for a bright indicator LED light, follow the instructions below.

  • Examine the board and any LED lights that are lighted by opening the cabinet in which it is installed. Because there is the possibility of high-voltage present on the board, do not touch it or any components nearby. Takedown all information you can regarding the fuse identify.
  • Remove all current from the drive after that. Open the cabinet and test the board to ensure that all power has been removed. To avoid damage, you may need to give the board some time to discharge all power.

DS200SDCIG1A Characteristics

  • Depending on which fuse has blown, you may be able to investigate the board for wiring faults or a short. It's possible that the board is defective and has to be replaced.
  • The component provides circuits to instrument a variety of AC line and DC motor signals, including armature current and voltage, field current and voltage, voltage magnitude, and phase sequence.
  • Keep the board from touching other boards or devices in the drive when removing it for inspection. Avoid touching the board's panels, cables, or the plastic snaps that keep it together. Also, make sure you remove any cables with care. Do not separate ribbon cables. Instead, separate the ribbon cable from the connector by holding both connectors with your fingers.
  • When ordering this board, all digits are crucial. Make sure that you order the correct SDCI board for your application.

Most GE Speedtronic Mark V control components are in stock at World of Controls. Our experts are always ready to help you with your Mark V requirements. If you require any additional information, please contact WOC immediately.



What is the DS200SDCIG1A version?

It is a G1 version SDCI. Being a G1 version SDCI, it includes circuitry for an internal field exciter that is less than or equivalent to 10 amps.

What are the jumpers on the SDCI DC Power Supply and Instrumentation Board?

Berg-type jumpers are manually moveable jumpers that are designated by a JP nomenclature on the board. These jumpers are used for customer preferences or manufacturing tests.

How to Check Price and Availability For DS200SDCIG1A?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.
