DS200SDCCG4AEC - DRIVE CONTROL CARD-T

Specifications

Specifications

Part No.: DS200SDCCG4AEC
Manufacturer: General Electric
Product Type: Drive Control Card
Series: Mark V

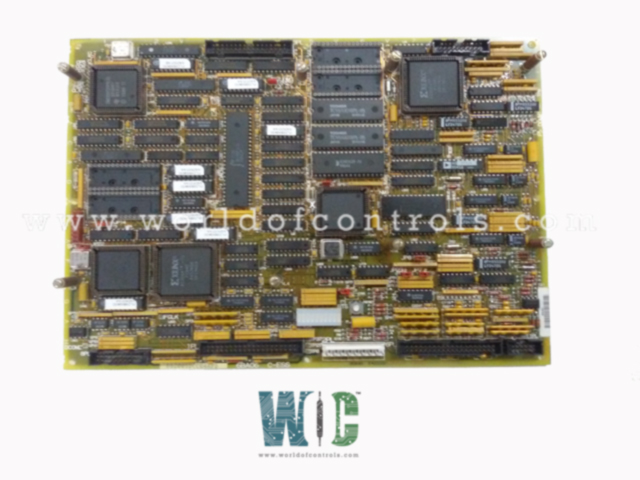

The DS200SDCCG4AEC is a General Electric Mark V Drive Control Card. This Drive Control Board has three microprocessors and RAM that can be accessed simultaneously by multiple microprocessors.

• The GE Drive Control Board DS200SDCCG4AEC contains all of the drive's processing capabilities. It can also send and receive signals to other boards and devices in order to carry out the functions specified.
• Optional cards, on the other hand, can be used to enhance the board's usefulness. The cards are used to provide additional signal processing and communication functions to a local area network.
• The GE Drive Control Board DS200SDCCG4AEC has standoffs for attaching the cards. Attach the cards with a screwdriver and the screws that came with the cards.
• From the card, one or more cables are connected to connectors on the board. To replace the GE Drive Control Board DS200SDCCG4AEC, detach the wires from the auxiliary cards and remove the screws that secure the cards to the board with a screwdriver.
• Keep the screws, cables, and cards together and ready to use in a safe place. Attach the cards to the board and reconnect the connections when you're ready to set up the replacement board.
• Remove the EPROM modules from the faulty board as well. Pull the EPROMs from the board using your thumb and forefinger and place them in the connectors on the replacement board. Gently press them into the connector with one finger.

The most comprehensive section of Speedtronic Mark V control spare parts can be found at World of Controls. WOC's experts are available to help you with your GE Mark V requirements at any time. Please contact us if you require any other information.



Frequently Asked Questions



What is DS200SDCCG4AEC?
The DS200SDCCG4AEC is a GE Mark V Drive Control Card.

What is the memory capacity of the DS200SDCCG4AEC?
The RAM memory of the DS200SDCCG4AEC is dual-ported.
The memory on the DS200SDCCG4AEC is designed as memory arrays that may be accessed separately and simultaneously by two microprocessors.

What is the intent of testpoints on the board?
The onboard testpoints on the DS200SDCCG4AEC are for testing and troubleshooting.

What is the purpose of the 3PL connector on the DS200SDCCG4AEC?
Card connection 3PL is for DS200SDCCG4AEC outputs to the LAN Communications Card.

How to obtain DS200SDCCG4AEC?
Call or mail the World of Controls team. WOC provides DS200SDCCG4AEC boards and other turbine control components.
