DS200SDCCG1AGD - DRIVES/EX2000 USE ON

SPECIFICATIONS

Part No.: DS200SDCCG1AGD
Manufacturer: General Electric
Product Type: Drive Control Board
Series: Mark V

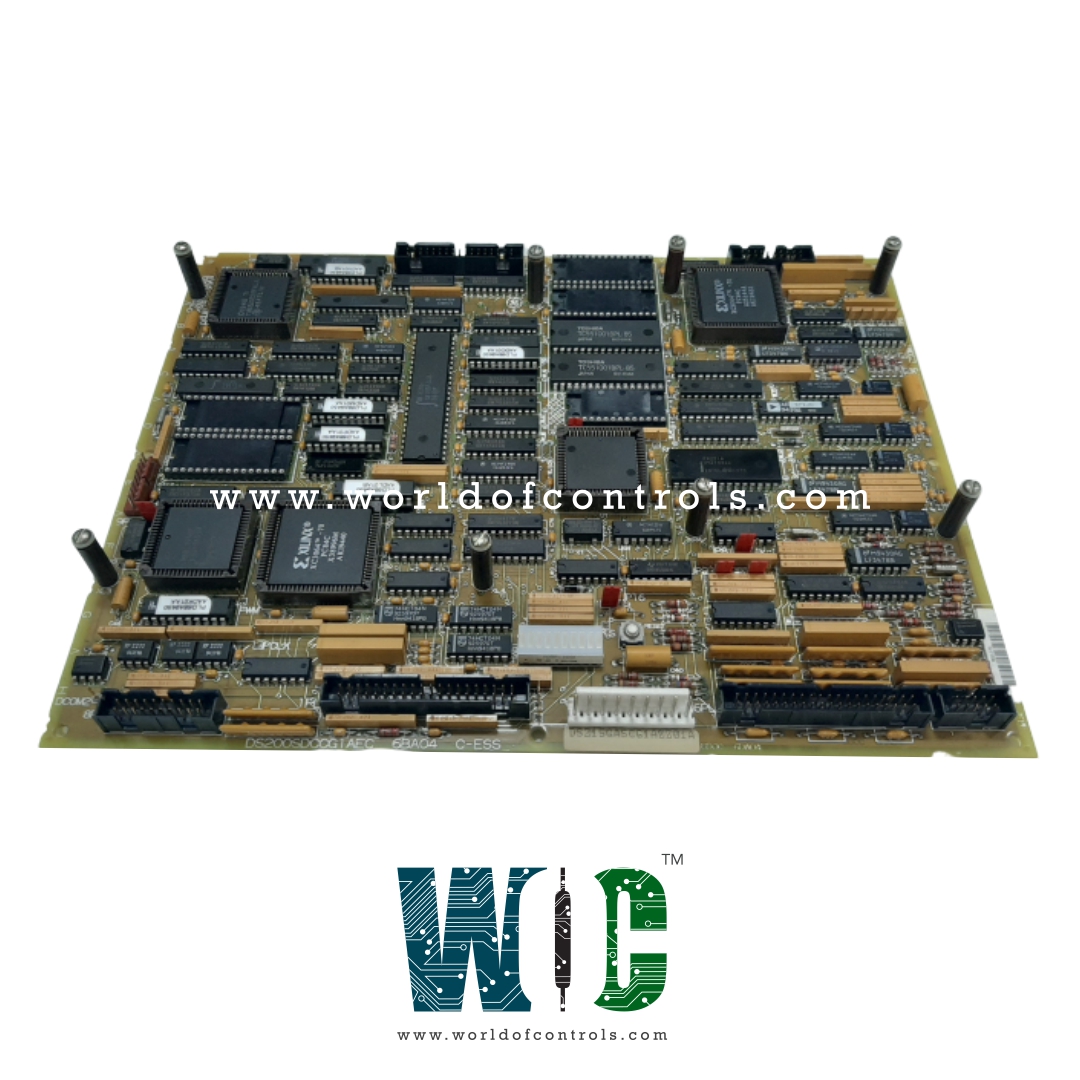

DS200SDCCG1AGD is a Drive Control card developed by General Electric under the Mark V series. It is the drive's primary controller. The GE Drive Control Board is equipped with three microprocessors and RAM that can be accessed simultaneously by multiple microprocessors.

• If an error occurs, ten LEDs on the GE Drive Control Board are utilized to indicate fault codes. The ten LEDs are arranged in a row and display the fault code when they are all lit up. The LEDs are lighted in a sequence of two LEDs at a time from left to right if no problem is detected and the board is running smoothly. You can inspect the LEDs by opening the board cabinet door, locating the board, visually inspecting the LEDs, and determining the board's condition.
• However, because of the high voltage present in the boards and all components, caution should be exercised when opening the board cabinet door. While the drive is being powered up, do not touch anything in the cabinet.
• Also, make sure nothing falls inside the cabinet while the door is open, and close it after the inspection is finished. When you initially turn on the board, you'll need to set up the configuration parameters to specify how it will analyze data and regulate the drive.
• There are software programs that can be used to change the parameters. On a laptop, the tools are ready for usage. If you need to set up many drives, you can generate a single configuration and download it to numerous boards. The GE Motors and Industrial Systems Drive Control Card Manual (GEI-100029) is a component-specific manual.

World of Controls has the most comprehensive selection of GE Speedtronic Mark V control components. At any time, our experienced engineers are available to assist you with your Mark V requirements. Please contact WOC if you require any extra information.

Frequently Asked Questions

What is DS200SDCCG1AGD?
DS200SDCCG1AGD is a Drive Control card developed by General Electric under the Mark V series.

In the DS200SDCCG1AGD, what are the three primary microprocessors?
Drive Control Processor, a Motor Control Processor, and a Co-motor Processor are the primary microprocessors.

On the DS200SDCCG1AGD, what is the 3PL card connection?
The 3PL card connector is for connecting the LAN Communications Card to the boards outputs.

Is there a pattern to the DS200SDCCG1AGD faults?
Yes. Faults are either shown in binary coded decimal or binary form. Faults 1-399 have a BCD pattern, while faults 400-1023 are displayed in binary.
