World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
DS200PCCAG1A - Power Connect Card is available in stock which ships the same day.
DS200PCCAG1A - Power Connect Card comes in UNUSED as well as REBUILT condition.
To avail our best deals for DS200PCCAG1A - Power Connect Card, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:

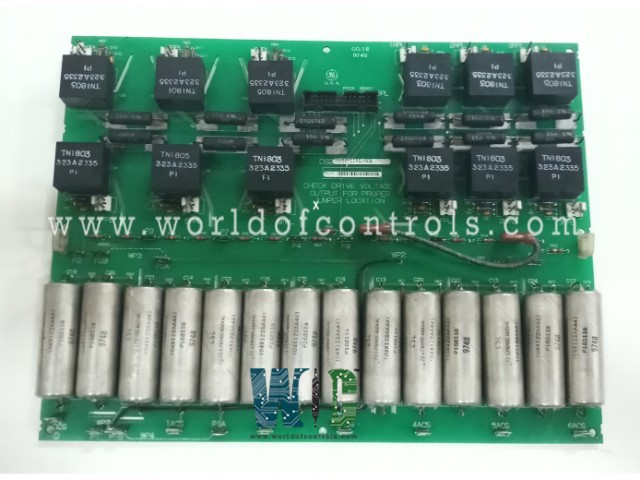

Part Number: DS200PCCAG1A
Manufacturer: General Electric
Series: EX2000
Microprocessor: Intel Ultra Low Voltage Celeron 650 MHz
Operating System: QNX Neutrino
Operating Temperature: 0 to 60�C
Product Type: Power Connector
Analog Input current: 240 V rms
Size: 15.875 cm high x 10.795 cm wide
Country of Origin: United States
Availability: In Stock
Manual: GEI-100161B
FUNCTIONAL DESCRIPTION:
DS200PCCAG1A is a Power Connect Card manufactured and designed by General Electric as part of the EX2000 Series used in Excitation control systems. The Power Connect Card (PCCA) provides an interface between the drive�s control circuitry and the SCR power bridge. The PCCAG1A board uses pulse transformers to provide gate drive to the SCR bridge. For low-to-medium horsepower controllers, the PCCA board also includes snubber circuits to control spikes across the AC lines, DC bus, and gate drivers. For higher horsepower controllers, some or all of the snubber circuits are omitted from the PCCA board and are located elsewhere in the system.
BOARD GROUPS:
Ten group numbers make up the PCCA board. The voltage of the system, the size of the frame, and whether the system employs regenerative or non-regenerative power conversion all affect the group number that is employed in the system. According to the card group number and system voltage, jumpers JP1 and JP2 must be connected to the proper stab terminals P3 through P10. Stabbing terminals P1A and P1B are connected using jumpers WP3 and WP4, respectively. These jumpers are used to determine if the voltage feedback channel and the PCCA snubber capacitors are connected to the same location on the power bridge. The armature voltage scaling depends on which PCCA board group number is used:
The PCCA board has four wire jumpers, designated JP1, JP2, WP3, and WP4, that select system voltage and determine snubber capacitor connections.
BOARD CONNECTORS:

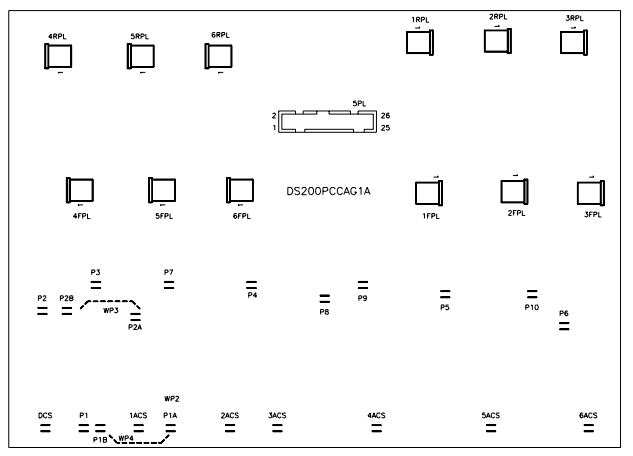

The PCCA board connects with the power supply board via one more plug connector, 5PL, and delivers forward and reverse gate pulse signals to the SCR bridge via twelve plug connectors, 1RPL through 6RPL and 1FPL through 6FPL.
APPLICATION DATA:
BOARD HARDWARE: There are no LEDs, fuses, testpoints, or switches on the PCCA board, but it does have programmable jumpers and wiring plug connectors. The sentences that follow in this section describe these things. There are four wire jumpers on the PCCA board, numbered JP1, JP2, WP3, and WP4.
WHY BUY FROM WOC:
WOC maintains the largest inventory of OEM replacement parts for GE Excitation Turbine Control Systems, ensuring that you have access to the components you need without delay. In addition to supplying unused and fully rebuilt boards, we also offer expert repair services to restore faulty boards to like-new condition, all backed by a reliable warranty for your peace of mind. Our experienced team is available 24/7 to provide guidance and support for any OEM or automation-related requirements, helping you minimize downtime and keep your systems running smoothly. For pricing, availability, or technical assistance with parts and repairs, simply reach out to our team via phone or email, and we�ll ensure you receive prompt, personalized support.
What is the DS200PCCAG1A?
The GE DS200PCCAG1A Power Connect Card is a Power Connect Card used in the GE EX2000 Excitation Control System manufactured by General Electric. It acts as an interface between the drive�s control circuitry and the SCR power bridge, transmitting gate drive signals required for SCR switching. The board uses pulse transformers for isolated gate drive and may include snubber circuits to suppress voltage spikes across AC lines and the DC bus, ensuring stable and reliable system performance.
How are voltage feedback and snubber circuits configured on the PCCA board?
Voltage feedback and snubber capacitor connections are determined using jumpers WP3 and WP4 connected to terminals P1A and P1B. These jumpers allow engineers to configure whether the voltage feedback channel and snubber capacitors share the same location on the power bridge.
What are the jumper configurations available on the DS200PCCAG1A?
The board includes four configurable wire jumpers: JP1, JP2, WP3, and WP4. These jumpers are used to select the appropriate system voltage range and determine the connection point of the snubber capacitors and voltage feedback channels within the SCR bridge.
